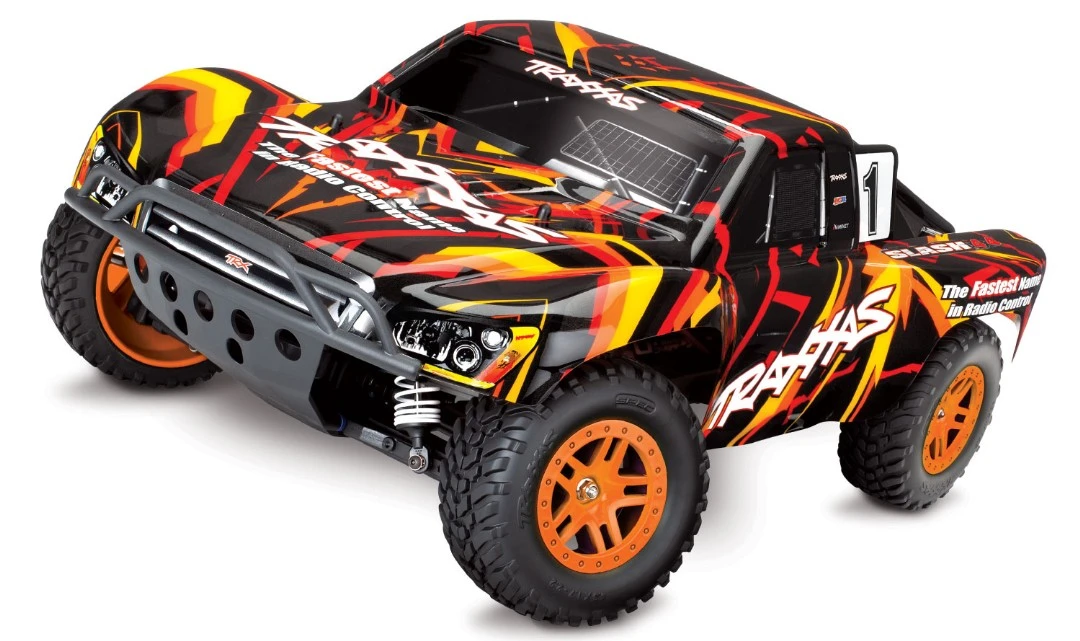

Traxxas Slash 4X4 1/10 4WD XL-5 RTR Short Course Truck Orange

The Traxxas Slash set the standard for durability, performance, and fun by which all other short course trucks are measured. The new Slash 4X4 combines the best elements of the hardcore Slash 4X4 VXL with an unbeatable low price. Outfitted with the powerful Titan 12T 550 motor and bulletproof reliability of the waterproof XL-5 electronic speed control, the Slash takes on any high-flying, fender-banging, all-weather adventure you can throw at it. Grab your transmitter, rip some 4-wheel roost, and discover why nothing else is built like a Slash!

Slash Features:

TQ™ 2.4GHz radio system

4-amp DC Peak Detecting Fast Charger

Genuine Traxxas Power Cell 7-cell NiMH battery with iDTM

Waterproof electronics for all-weather, all-season RC fun

Titan® 12-Turn 550 modified motor

XL-5 electronic speed control

Rugged, easy-to-disassemble modular composite frame

Torque Control® slipper clutch with large 32P gears

Tough fluid-filled front and rear differentials with steel gears

ProGraphix® short course truck body with color-matching wheels

Easily upgradable to extreme Velineon VXL brushless power

Traxxas Slash Details:

Titan® 12-Turn 550 Modified Motor
The Slash 4X4 includes a powerful Titan 12T 550 modified motor with internal cooling fan – an industry first for this class of truck! The Titan’s oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.

Waterproof Electronic Speed Control
The XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

Innovative watersealed design

Three Drive Profiles

-Sport Mode – Forward / Brake / Reverse

-Race Mode – Forward / Brake

-Training Mode™ – 50% Forward / Brake / 50% Reverse (patent pending)

12-Turn motor limit for 550 size motors

Integrated on/off switch

Traxxas EZ-Set® one-button setup

LiPo and NiMH compatible with two-stage low-voltage detection

High-efficiency MOSFET transistors

Waterproof Electronics
The Slash 4X4 never shies away from an adventure and, thanks to its fully waterproof electronics, neither will you. Experience 4X4 fun year-round no matter what the weather conditions. Water, mud, and snow don’t slow down the Slash 4X4; its electronic speed control, receiver box, and high-torque digital steering servo are all waterproof for no-worry fun. Drive the Slash 4X4 where you want, when you want—the only limit is your imagination.

Modular Simplicity
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. Modular design allows the entire front section to be removed with just 5 screws and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.

Precision 2.4GHz Control
Switch on the power and drive! That’s all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ’s advanced programming provides long-range control with smooth, glitch-free performance. The TQ’s ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Traxxas 4-amp DC Peak Detecting Fast Charger
The Slash 4X4 includes a 4-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.

Traxxas Power Cell NiMH Battery with iD™
NiMH iD Power Cell Battery (#2923X) (7-Cell Flat, Sub-C, 3000mAh)Slash includes a genuine iD-equipped Power Cell NiMH battery to make sure you experience all the performance that’s been engineered into your Traxxas model. Accessory Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity. Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas’ high-output, gold plated, patented, High-Current Connectors. Precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package. For even greater speed and runtime, a full line of optional Traxxas iD Power Cell NiMH and LiPo batteries are available. Power Cell batteries are Traxxas certified to maximize the performance and speed engineered into every Traxxas vehicle.

Traxxas High-Current Connector
The patented Traxxas High-Current Connectors are designed to handle high-current applications and funnel maximum power to your vehicle’s electronics. Traxxas High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.

Maxx Cable 12-Gauge Wire
This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the electronic speed control. The patented Traxxas Connector combined with Maxx cable is a better-engineered solution for extracting all the power your battery has to give.

High-Torque Waterproof Steering Servo
An all-terrain truck needs a powerful steering servo for responsive performance, and Traxxas delivers with the #2056 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the #2056 servo provides 80 oz-in of steering muscle. That’s twice the power of typical “standard” servos.

Waterproof Receiver Box
The Slash 4X4’s innovative receiver box is fully waterproof, yet it’s easy to access the receiver. The unique patented design holds a 3-channel micro receiver that saves weight and provides reliable, long-range RC performance.

3-channel Micro Receiver with Fail-Safe Security
The TQ 2.4GHz micro receiver fits easily into almost any vehicle, and features dual channel-1 steering outputs. The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated.

Long-Wheelbase Chassis
The Slash 4X4 chassis features a long 12.75? wheelbase for added stability while offering nearly 3? of terrain-conquering ground clearance. The chassis includes drain holes and a battery tray channel for routing servo wires to the receiver. Optional bosses in the chassis make it easy to upgrade to the Extreme Power of the Velineon Brushless Power System. For race track competition, a transponder mount is located under the front shock tower when every second counts.

Slash Short Course Tires
Realistic looks, realistic performance. Slash’s tires come pre-mounted to color-matching Split-Spoke SCT wheels and have excellent grip in the dirt and just the right amount of slide on pavement.

Oil-Filled Ultra Shocks
The Slash’s oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Heavy-Duty Driveshafts
Slash 4X4’s telescoping, universal-joint driveshafts may look familiar but they have evolved for increased strength and articulation. Traxxas U-joint driveshafts allow for maximum suspension movement resulting in longer travel and tighter turning. Extra material and design tweaks greatly increase torque handling.

Steel-Gear Differentials
Slash 4X4’s differentials represent the state of the art in power handling and efficiency. Steel gears in the differentials are ready to handle brushless power without costly upgrades. Precision silicone gaskets and X-ring seals allow the diffs to be tuned for specific running conditions by varying the viscosity of the fluid inside them. Differential access for tuning is quick and easy. Just remove the front or rear cover and the entire differential slides right out.

Optimum-Geometry Steering with Integrated Servo Saver
No part of the Slash 4X4 was overlooked in the quest for durability, precision, and performance. The dual-bellcrank design pivots smoothly in the harshest conditions, and an integrated cam-type servo saver protects the servo gears from crash impacts without sacrificing steering precision.

Heavy-Duty 32-Pitch Gears
Extreme brushless horsepower is never an afterthought at Traxxas. The Slash 4X4 driveline is built to handle power for today and accommodate future power upgrades down the road. The spur gear features rugged 0.8 module/32-pitch teeth for total reliability no matter how much power you pour on.

Long-Travel Suspension
The Slash’s ultra-plush suspension swallows up jumps and delivers incredible rough-track control. All that travel gives Slash 4X4 a truly authentic look and handling response that accurately simulates real-world short course racing. The fully-optimized front axle carrier is a result of computer modeling that allowed engineers to design for maximum articulation without binding or interference. Tight steering response is always there, even at the extreme ranges of the suspension travel.

Torque-Control™ Slipper Clutch
Another Traxxas exclusive, Slash 4X4’s patented slipper clutch design uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The slipper is easily adjusted without disassembly or removal, and the unique 3-pad design is proven rugged in Traxxas’ most powerful electric and nitro vehicles. It’s the perfect complement to Velineon brushless power and 4WD, offering the ultimate in traction control.

ProGraphix® Bodies
The Traxxas Slash set the standard for Short Course RC style and the Slash 4X4 carries it to the next level with an even more aggressive and realistic stance. Sharper edges, bolder curves, and proportions that scream speed signal the horsepower that lurks beneath. Body mounting holes are identical to the 2WD Slash.

NOTE: If you want to charge the Truck at home using the Power Plugs, you will need the AC to DC Power Supply Adapter (TRA2976)
