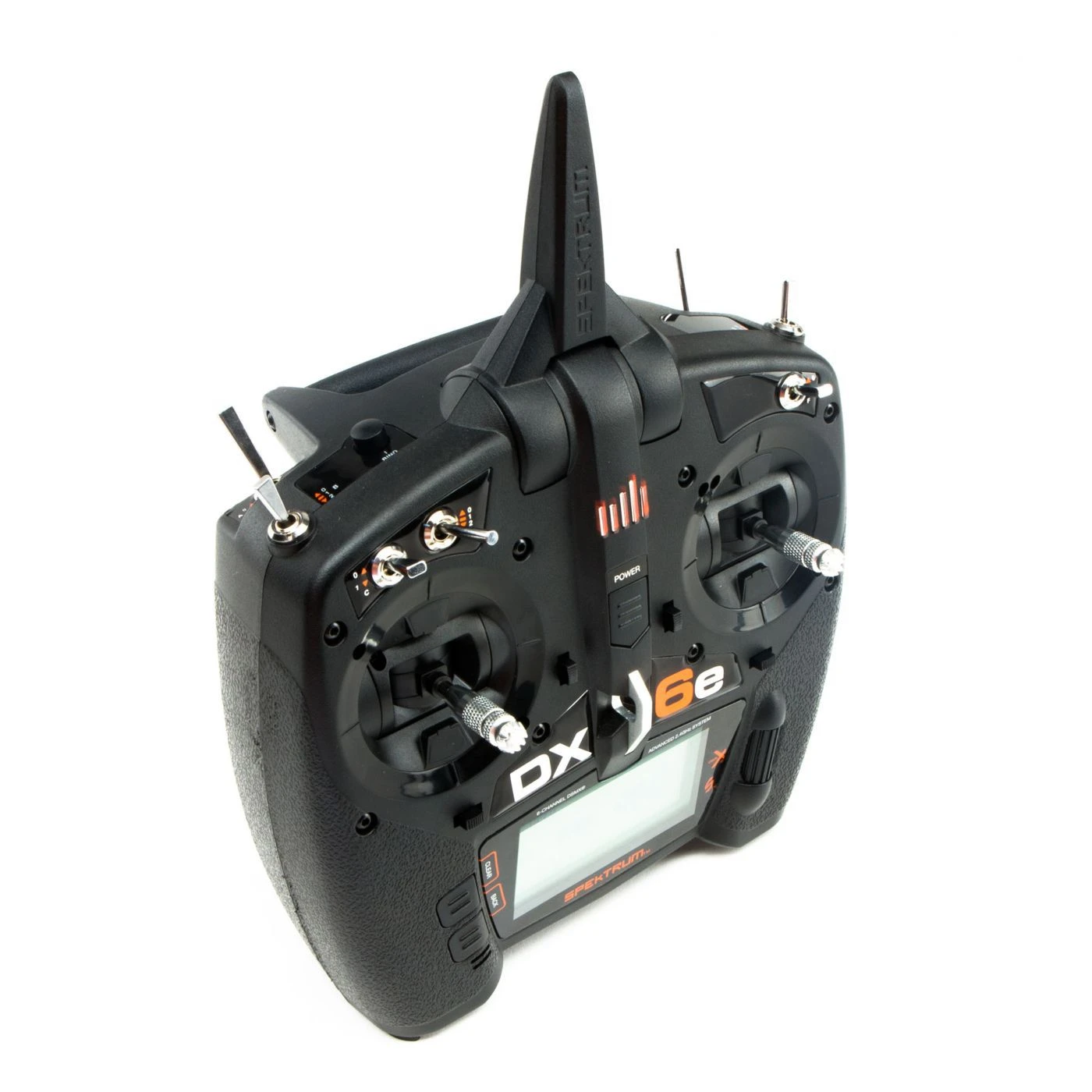

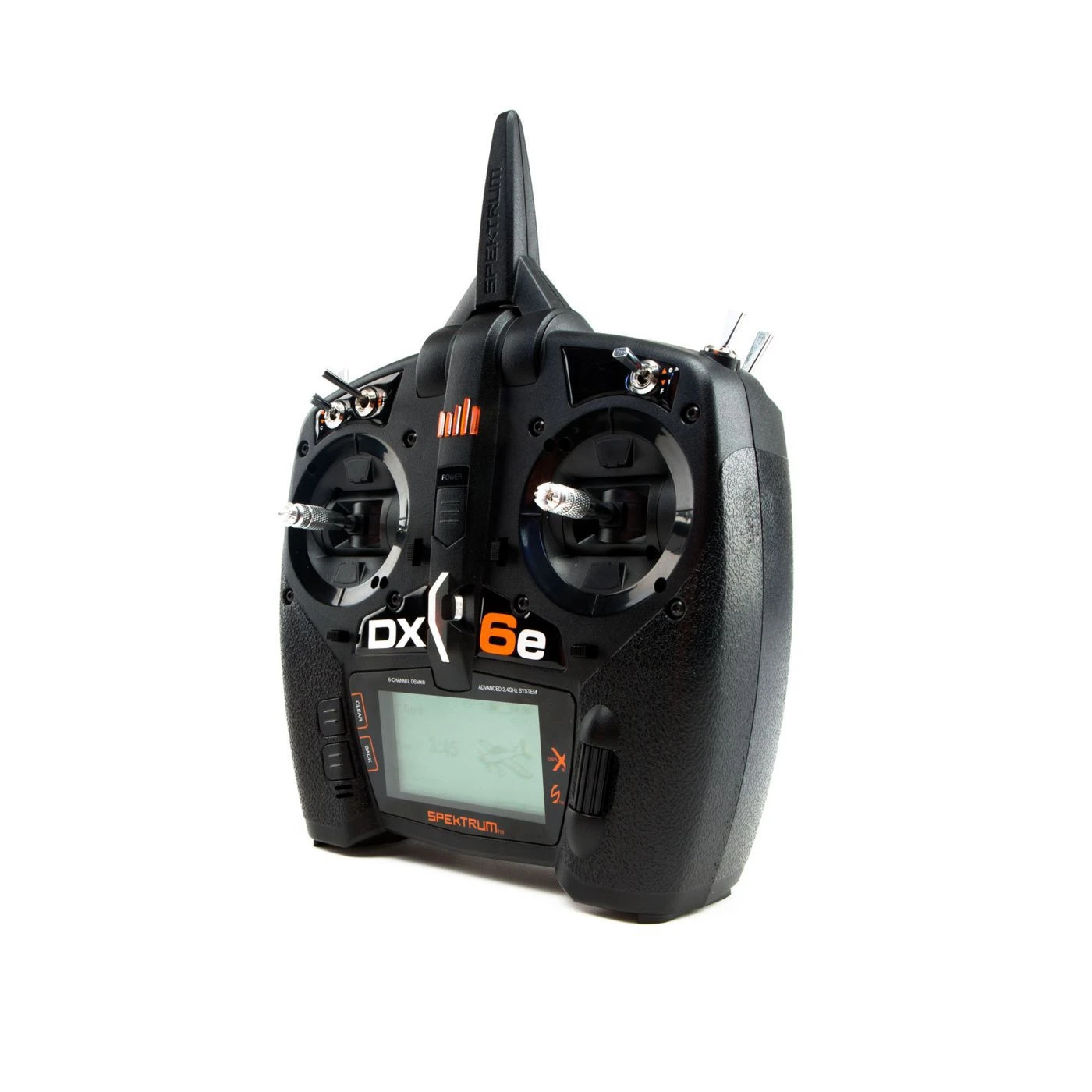

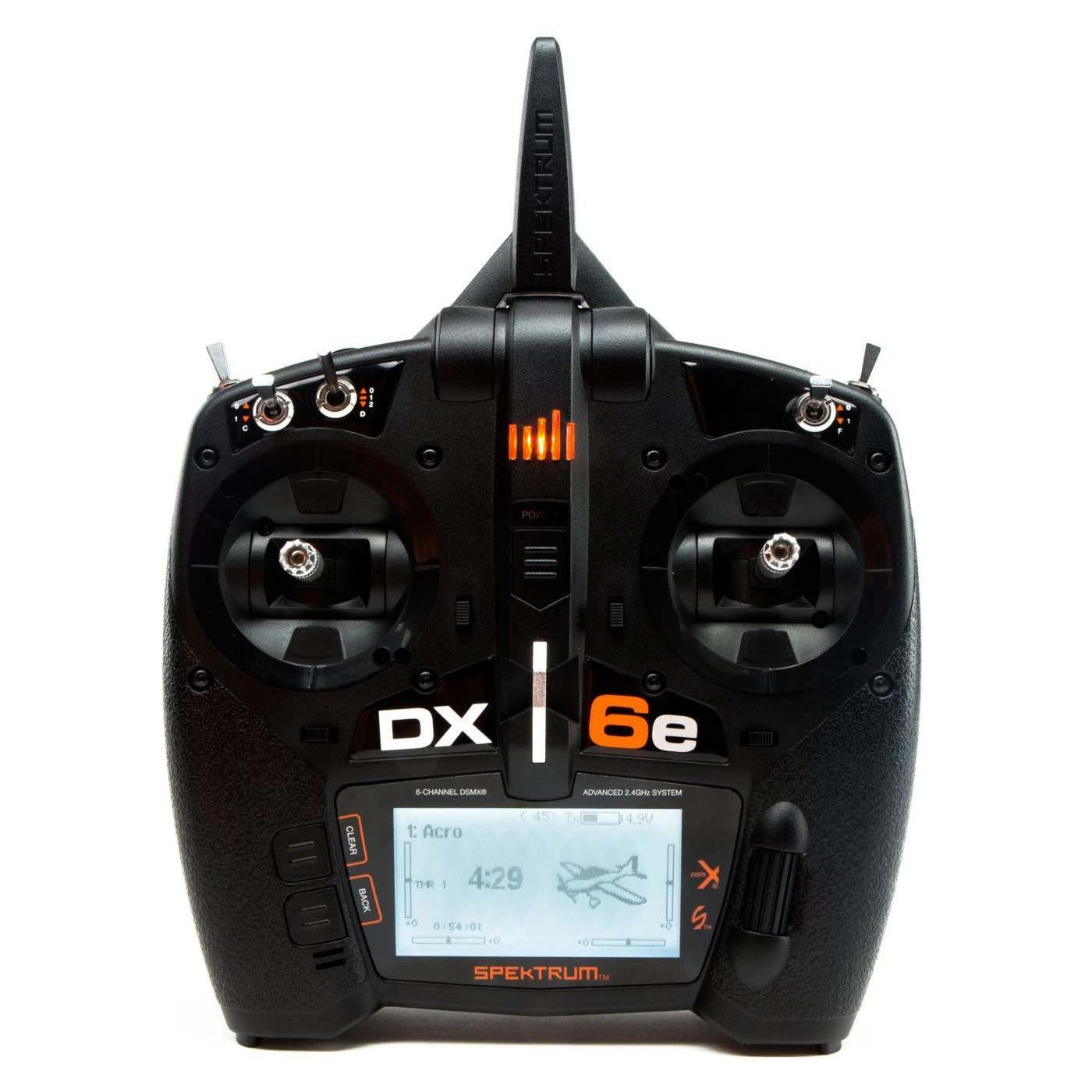

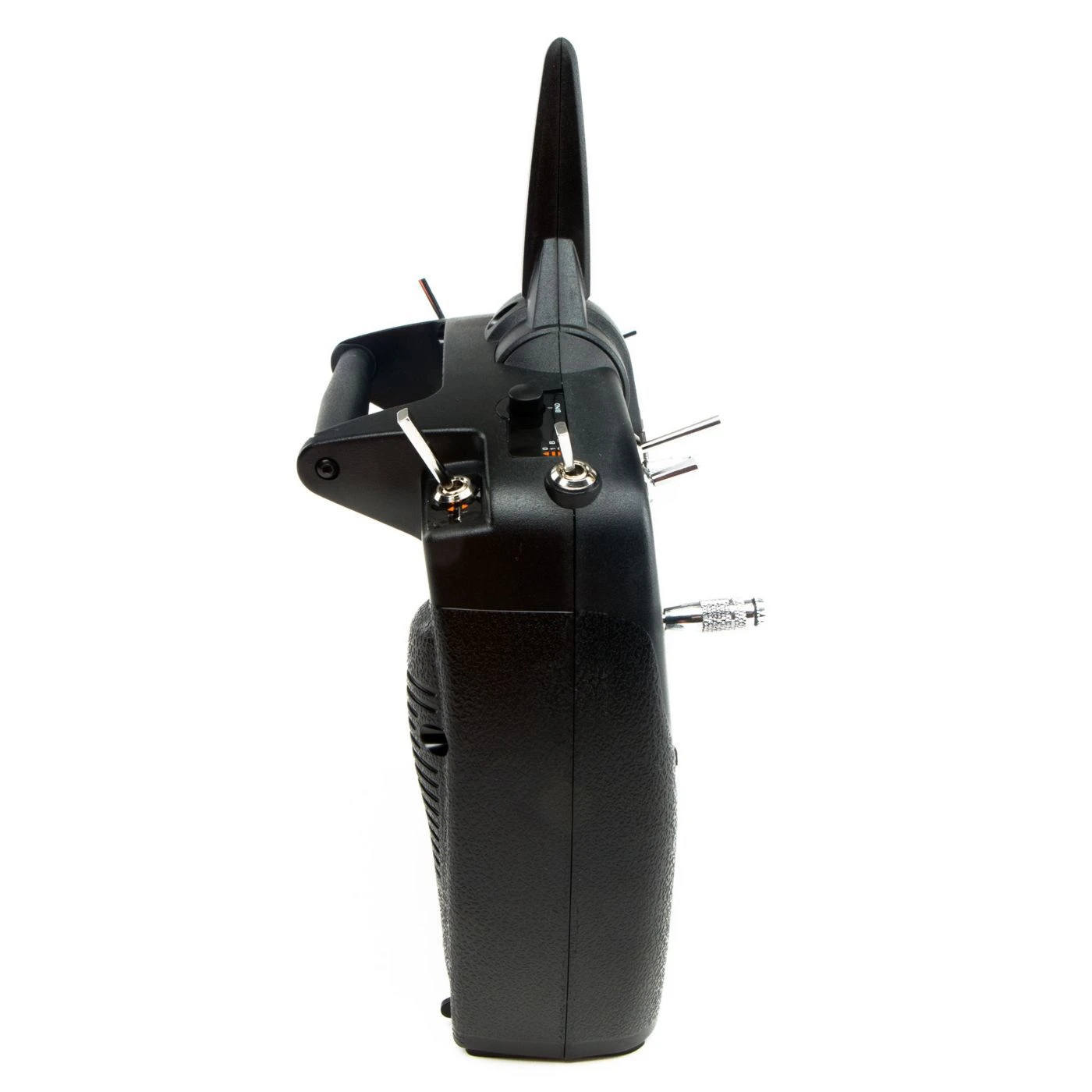

Spektrum DX6e 6-Channel DSMX Transmitter Only

Smart Technology — More connected for more confidence and control

Spektrum™ Smart Technology is about offering a higher connection to your hobby. It’s an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model’s electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component’s status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.

Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press “Start.” Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.

Features

Patent-pending gimbal design with spring configuration switch

DSM2/DSMX Wireless trainer link

Virtually unlimited model memory-transmitter stores up to 250 models and only populates the model list with models the user has configured

Airplane, Helicopter, Sailplane and Multirotor programming

Built-In Telemetry

7 airplane wing types and 6 tail types

2 swashplate types

4 sailplane wing types and 3 tail types

Multirotor flight mode setup

7-point throttle curves for airplanes and helicopters

7-point pitch and tail curves for helicopters

Cross-platform model sharing with other Spektrum transmitters

4 AA batteries included

EN328 compatible

Overview
Being on a budget doesn’t have to mean you have to settle for less than the best. The Spektrum DX6e gives you the unbeatable response of DSMX® technology, the simplicity of Spektrum™ AirWare™ programming software and many other features you can’t find on other “budget” radios.

Feature Details
Airplane, Helicopter, Sailplane and Multirotor Programming
The DX6e comes equipped with the programming you need to fly almost anything. And because it’s based on the same Spektrum AirWare software used in most other Spektrum transmitters, you can share model setups with just about any Spektrum user you meet.

AIRPLANE PROGRAMMING

7 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 2 Aileron 1 flap, Elevon A, Elevon B

6 Tail Types: Normal, V-Tail A, V-tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator

Flap System with Elevator Compensation

3 Flight Modes

Dual Rates and Expo

7-Point Throttle Curve

3 Preset Mixes: Rudder-to-Aileron/Elevon, Aileron-to-Rudder, Elevator-to-Rudder

4 Programmable Mixes – Normal or Curve

HELICOPTER PROGRAMMING

Gyro

7-Point Throttle Curve

7-Point Pitch Curve

7-Point Tail Curve

2 Swash Plate Types: Normal, 3-Servo 120˚

3 Flight Modes + Throttle Hold

Dual Rates and Expo

Cyclic-to-Throttle and Swashplate Timing Mixes

4 Programmable Mixes – Normal or Curve

SAILPLANE PROGRAMMING

4 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap

3 Tail Types: Normal, V-Tail A, V-Tail B

Camber System

Camber Preset

5 Flight Modes

Dual Rates and Expo

Dual Rates and Expo

4 Preset Mixes: Aileron-to-Rudder, Aileron-to-Flap, Elevator-to-Flap, Flap-to-Elevator

4 Programmable Mixes – Normal or Curve

MULTIROTOR PROGRAMMING

Multirotor Channel Inputs – ALT (Altitude), ROL (Roll), PIT (Pitch), YAW

Multirotor Checklists and Warnings

Simplified Multirotor Flight Mode Setup and Switch Assignment

250-Model Memory
The enormous capacity of the DX6e’s on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easy to navigate too. Only memory slots with model settings saved to them will appear. You won’t have to scroll through empty slots or move models around if one is deleted.

Built-In Telemetry
The built-in telemetry feature can give you real-time information on things like battery voltage, signal quality, motor temperature and more.* You can also program alerts that let you know when specific telemetry values reach or exceed limits you define.

* Requires telemetry sensors and a telemetry-enabled receiver.

Patent-Pending Gimbal Design with Spring Configuration Switch

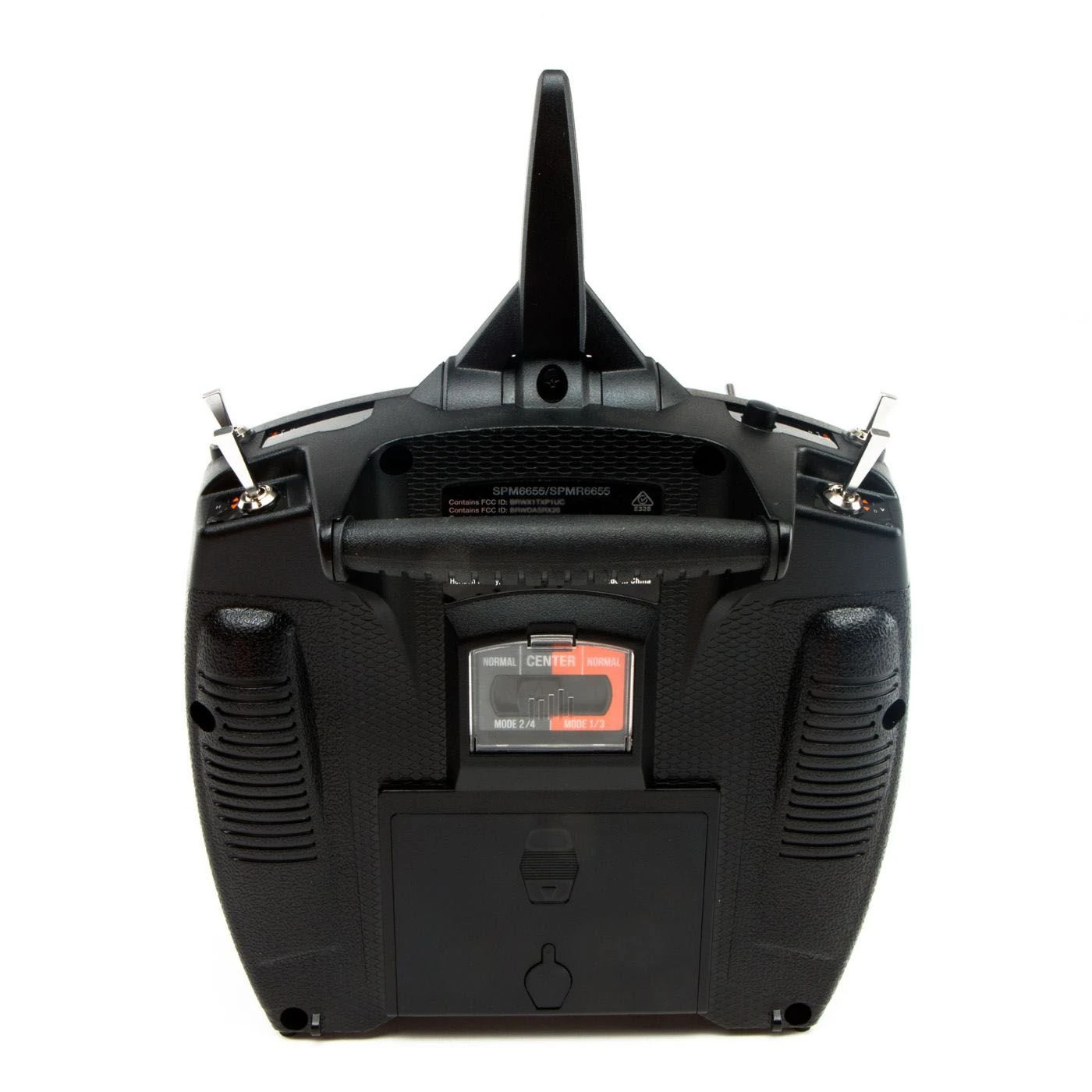

The DX6e’s patent-pending gimbal design lets you change gimbal spring configurations simply by moving a slider switch on the back of the transmitter. No tools are required. Just select the spring configuration that matches the mode you are using and model type you are flying. That’s it.

There are four spring configurations to choose from:

Normal Throttle for Modes 2 and 4 (Air, Heli and Sailplane Model Types)

Spring-Centered Throttle for Modes 2 and 4 (Multirotor Model Type)

Spring-Centered Throttle for Modes 1 and 3 (Multirotor Model Type)

Normal Throttle for Modes 1 and 3 (Air, Heli and Sailplane Model Types)

The slider switch is protected by a hinged cover that prevents you from accidentally changing spring configurations in flight.

Wireless Trainer Link

The wireless trainer link gives instructors the option to wirelessly ”buddy box” with another DSMX/DSM2® transmitter. Once bound to another transmitter, ModelMatch™ technology will allow the DX6e to re-link without having to go through the bind process again.
