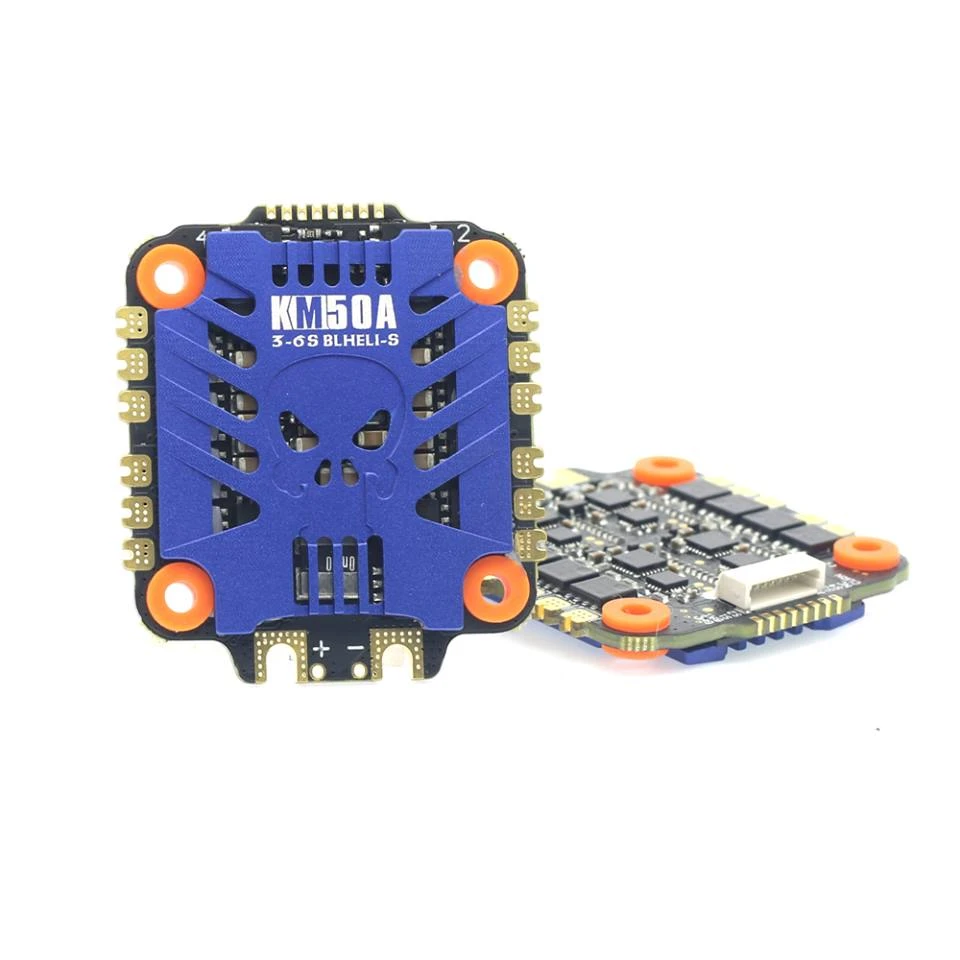

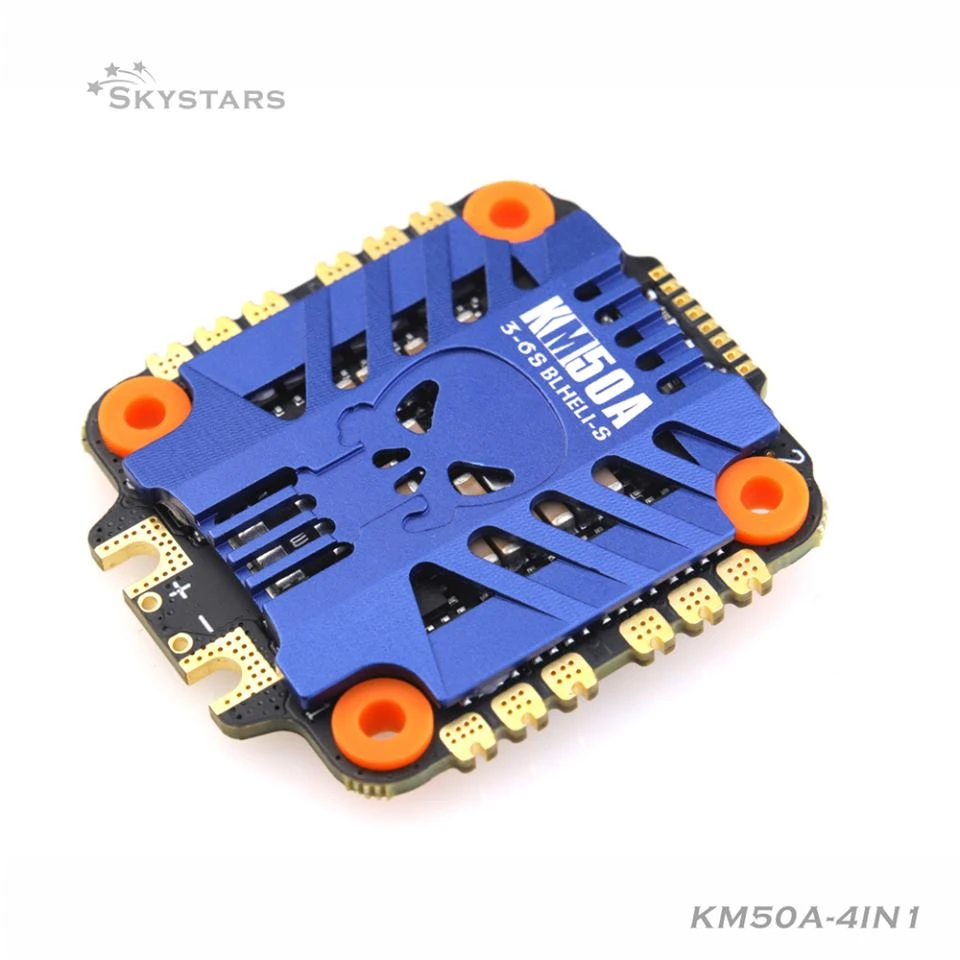

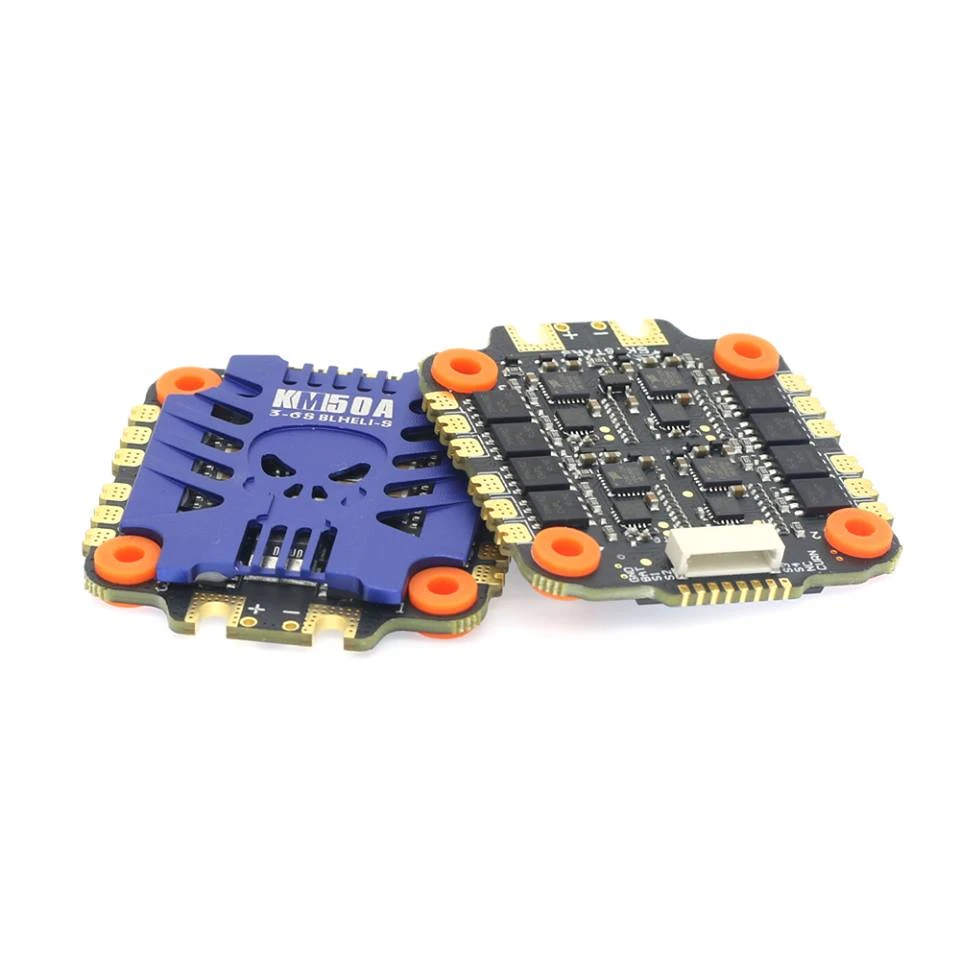

Skystars Kramam 50A 3-6S 4in1 ESC

Excellent over-current capability.
By adopt the best PCB material and PCB production process. Such as application of high TG materials , 3oz copper PCB & 2?m gold deposition process on PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.

Extreme stably support 6S LiPo battery

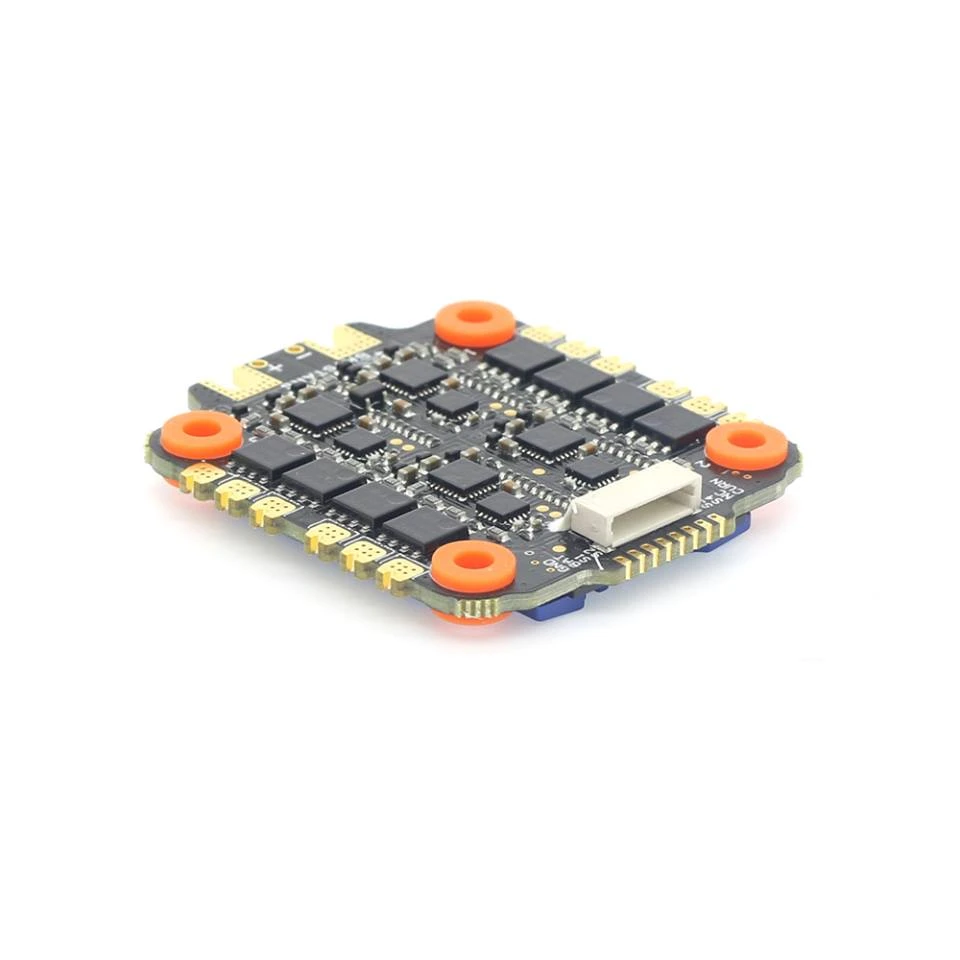

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.

Excellent heat dissipation performance

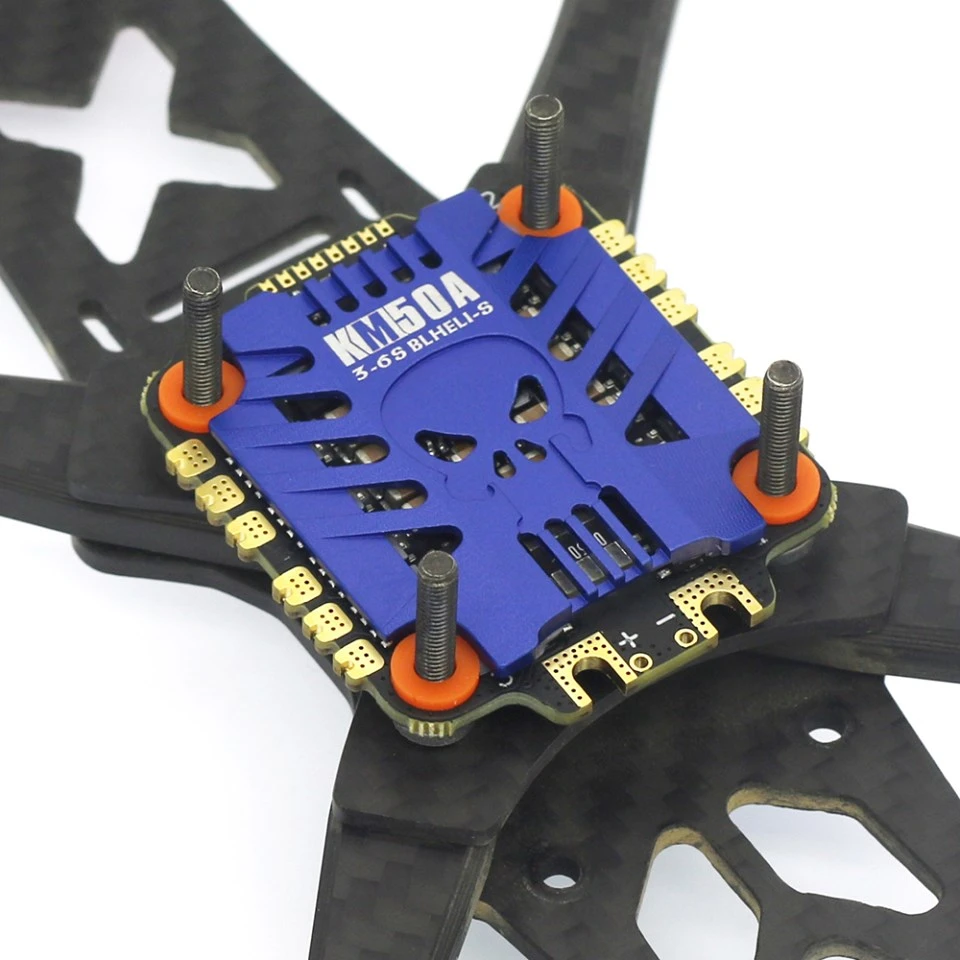

The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.

Better control performance
Flashed with Blheli_S 16.72 firmware in factory, support reversed Dshot 300 /600, make ESC have smooth control feel.

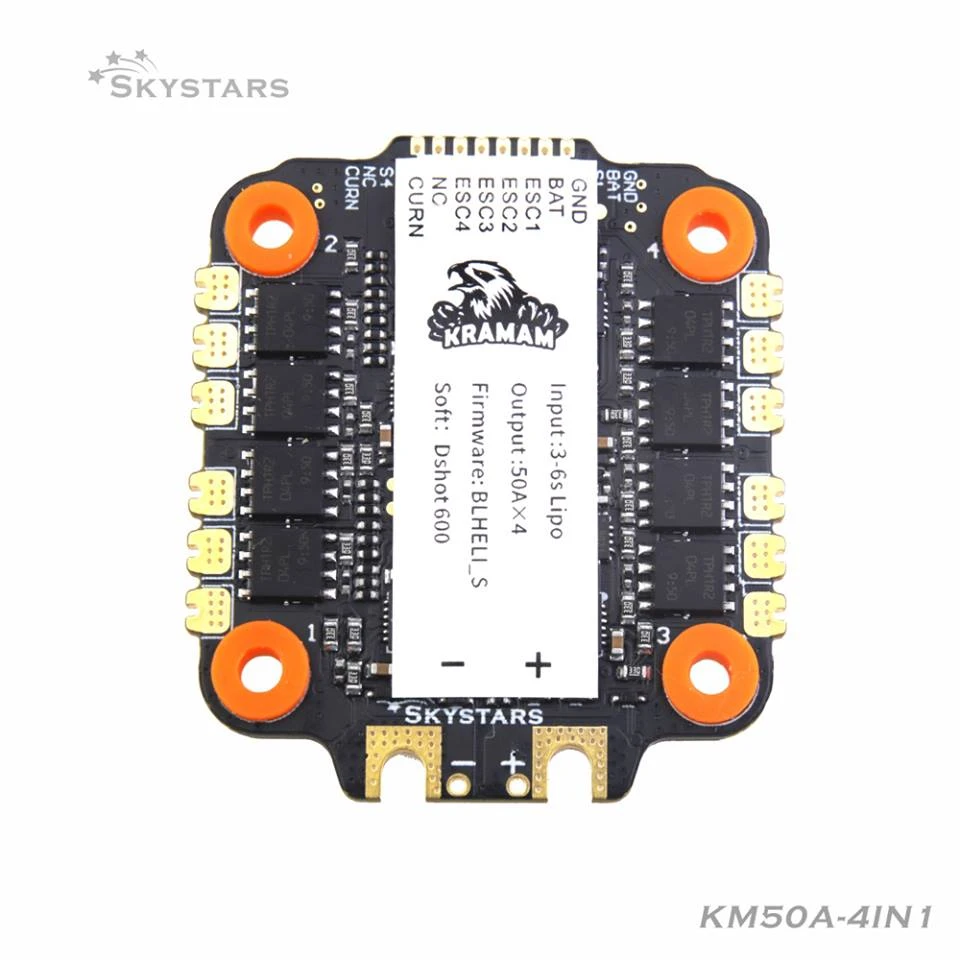

Specifications:

Input voltage: 3-6S LiPo

Con.Current: 50A

Peak Current: 60A? 10S

Firmware: BLHeli_S

Support : Reversed Dshot 300/600

Firmware version:16.72(Q_H_25)

Mounting hole : 30.5mm/M3

BEC: No

Product size: 41*46*7.6mm

Weight: 17g

Included:

1 x Skystar Kramam 50A 3-6S 4 in 1 ESC

4 x Damping Rubbers (M3x8mm)

4 x Damping Rubbers (M3x3.5mm)

1 x XT60 lead

1 x 8pin wiring harness (1x 70mm,1x 50mm)

1 x 35v 560uf Capacitor
