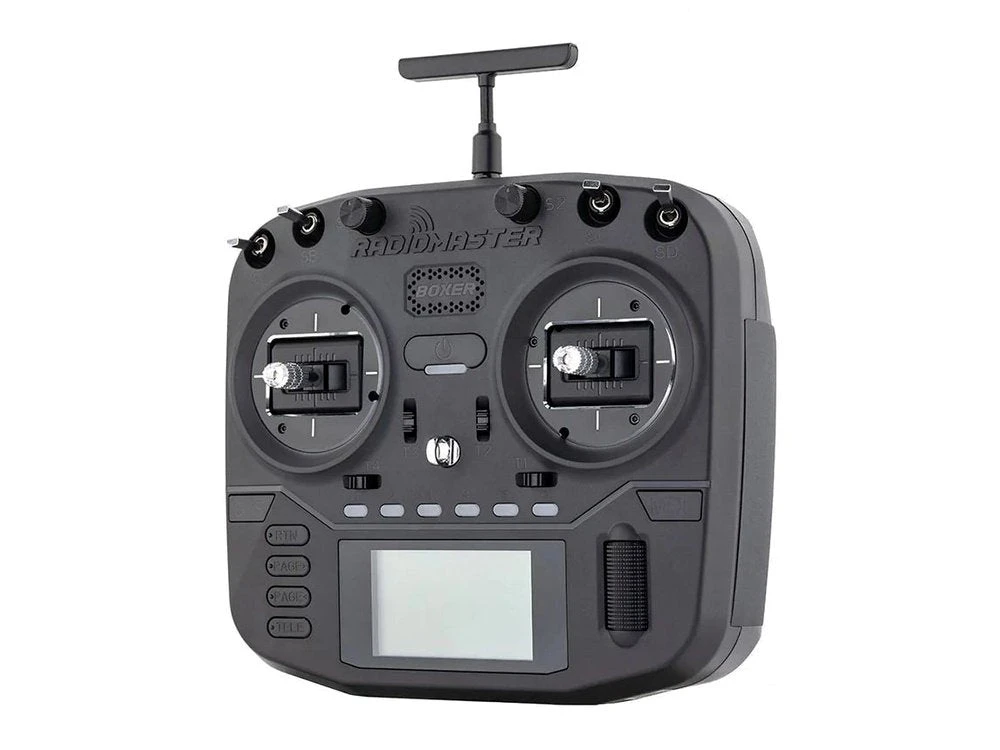

RADIOMASTER BOXER EDGETX 4-IN-1 MULTI-PROTOCOL RADIO CONTROL SYSTEM

The perfect combination of size and ergonomics make the BOXER an ideal choice for pilots on the go. Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.

Features:

Available with built-in ExpressLRS or 4-in-1 MPM RF modules

Featuring a powerful STM32VGT6 processor with 1MB RAM

Preinstalled EdgeTX firmware

Internal ELRS module capable of 1,000Hz refresh rate

Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)

4-in-1 or CC2500 only version capable of up to 20dBm RF output

QC3.0 fast charging support 2.0A MAX

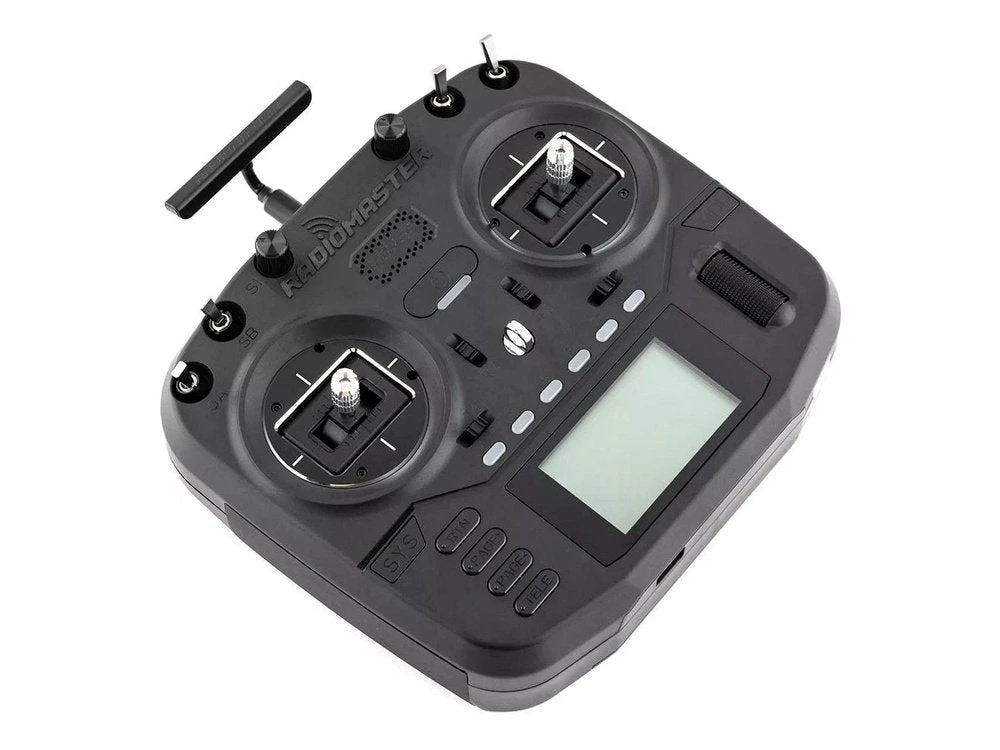

Compact design with excellent ergonomics

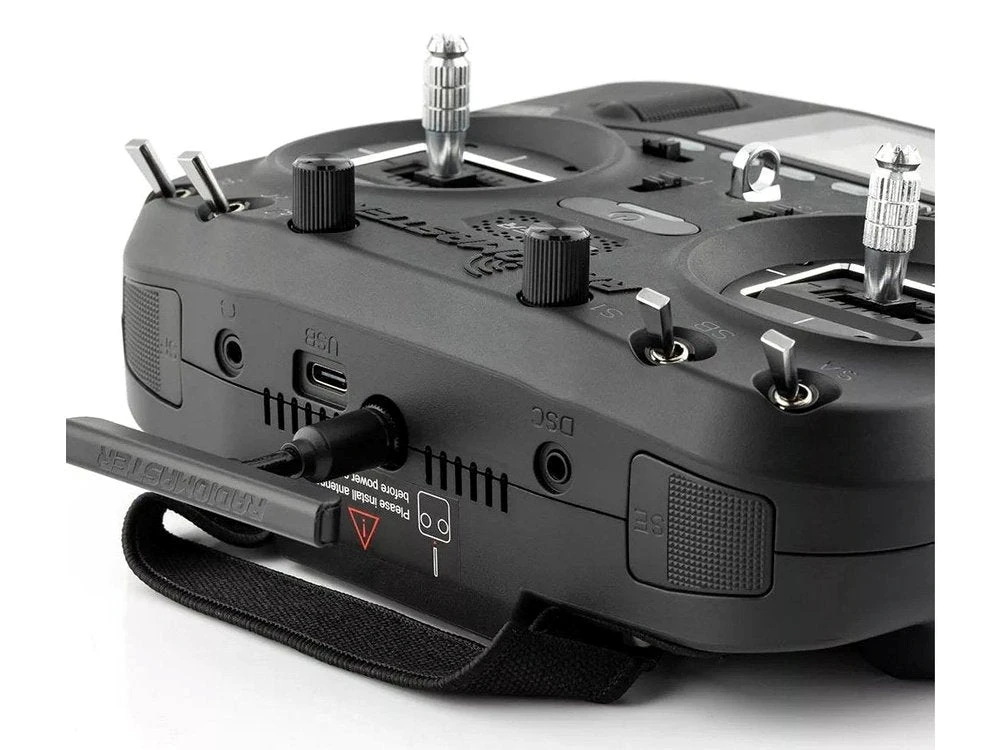

New low-profile latching SE switch and momentary SF switch

Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)

Full-sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals

Standard JR module compartment

Internal module cooling fan built in (ELRS version)

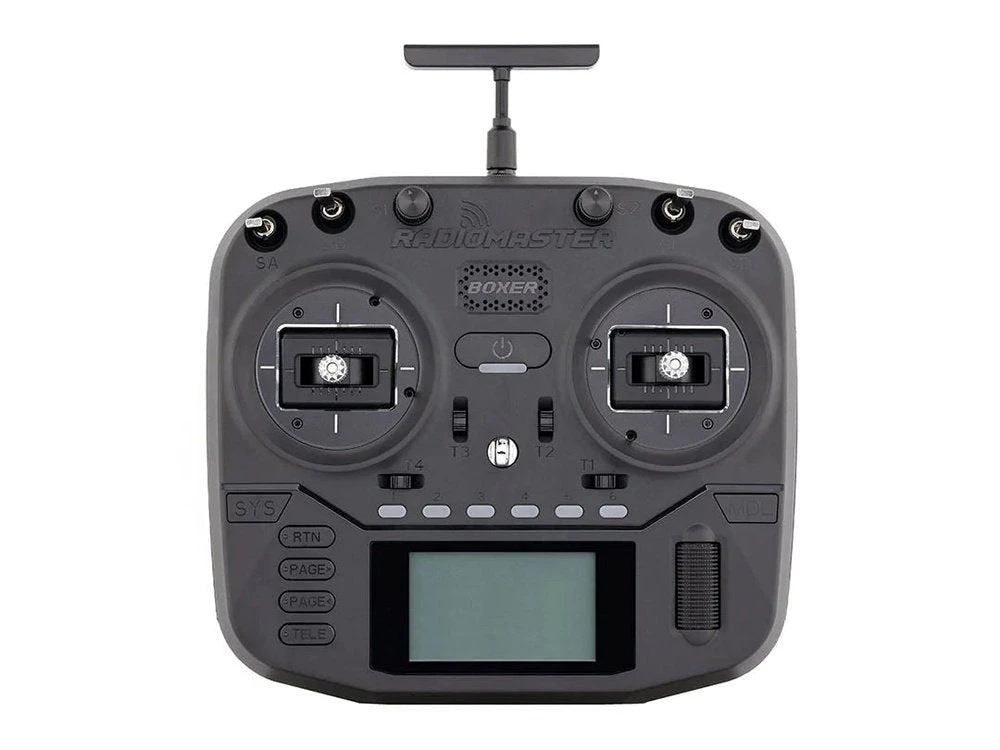

RadioMaster standardized button layout

Versatile 6-position switch for flight mode access

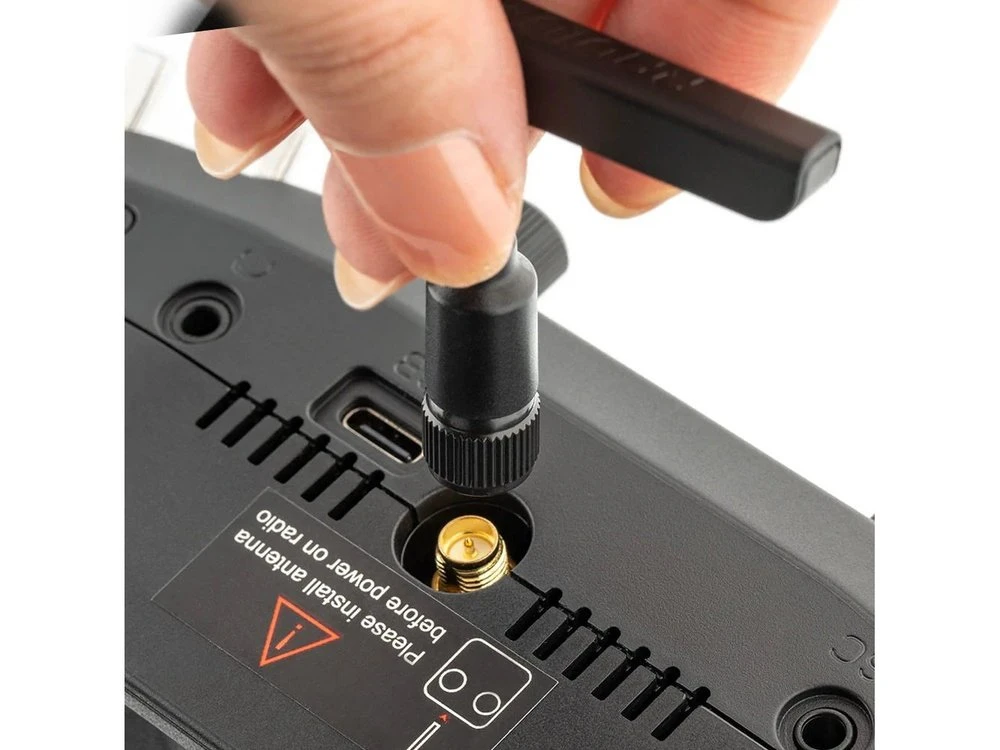

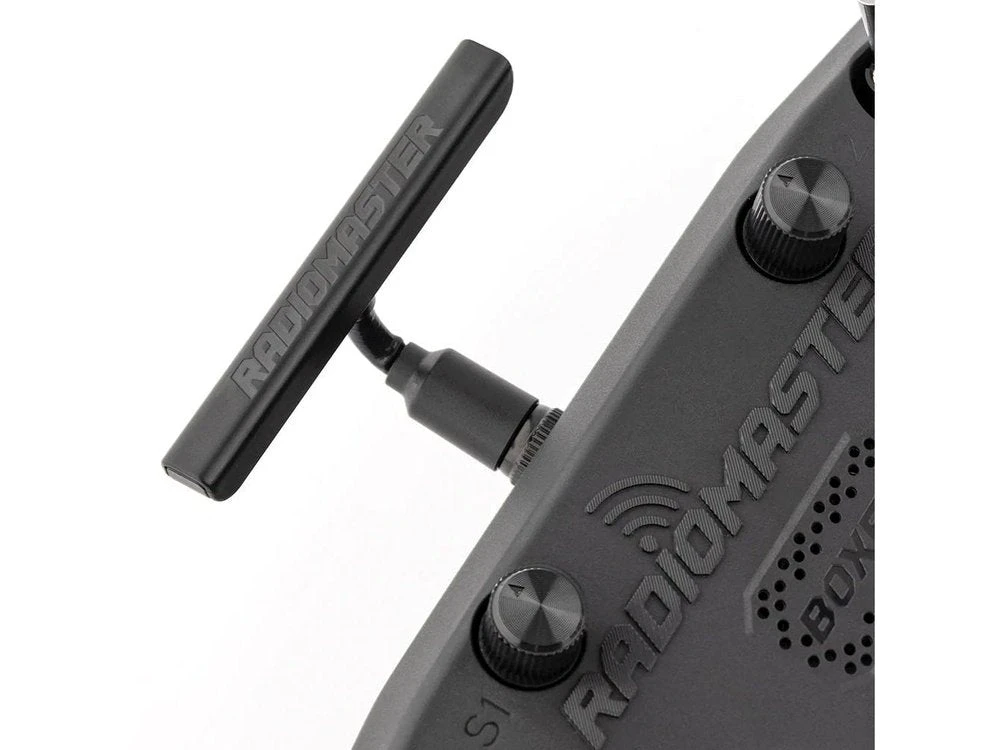

Adjustable and Removable T-shape Antenna

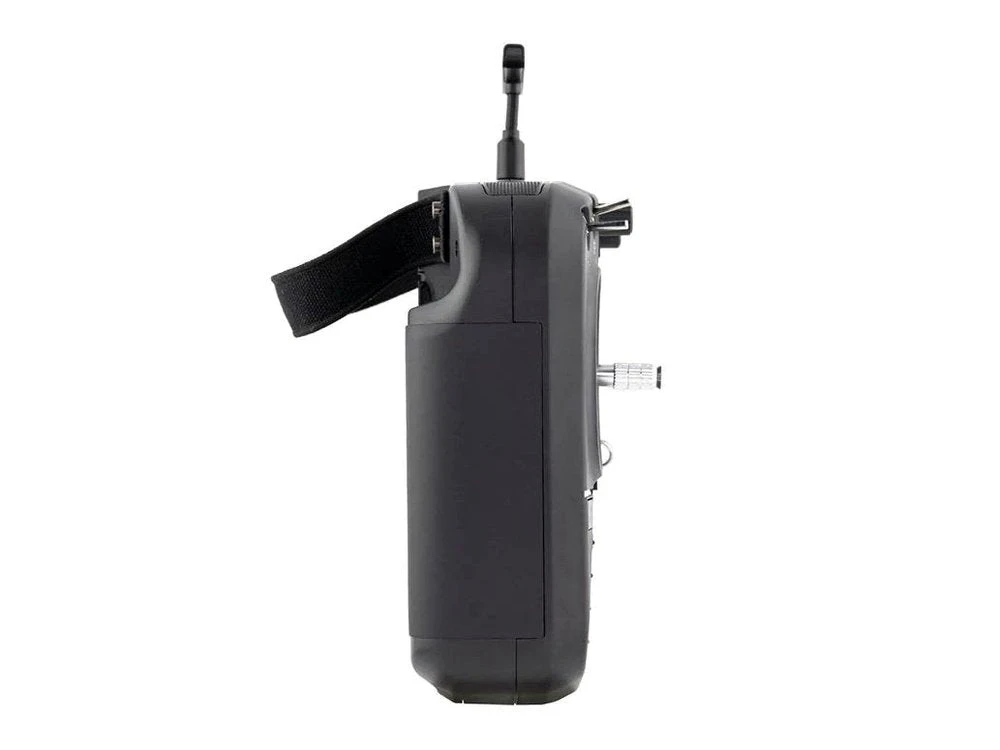

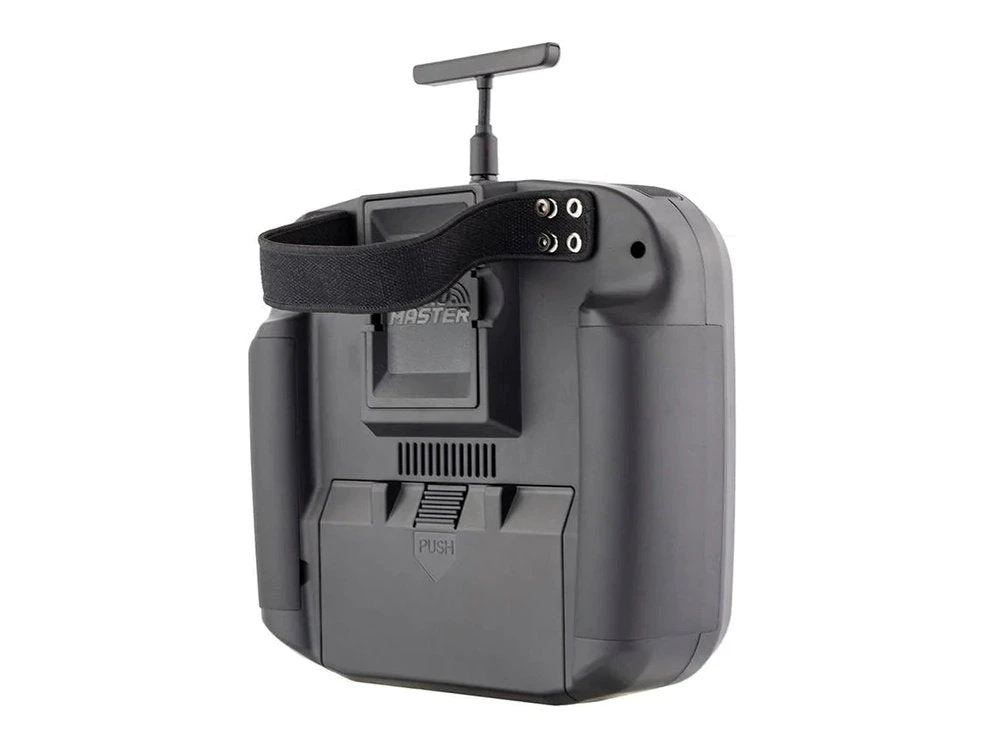

Industry-first fabric handle for improved portability

Changeable, ergonomic grips

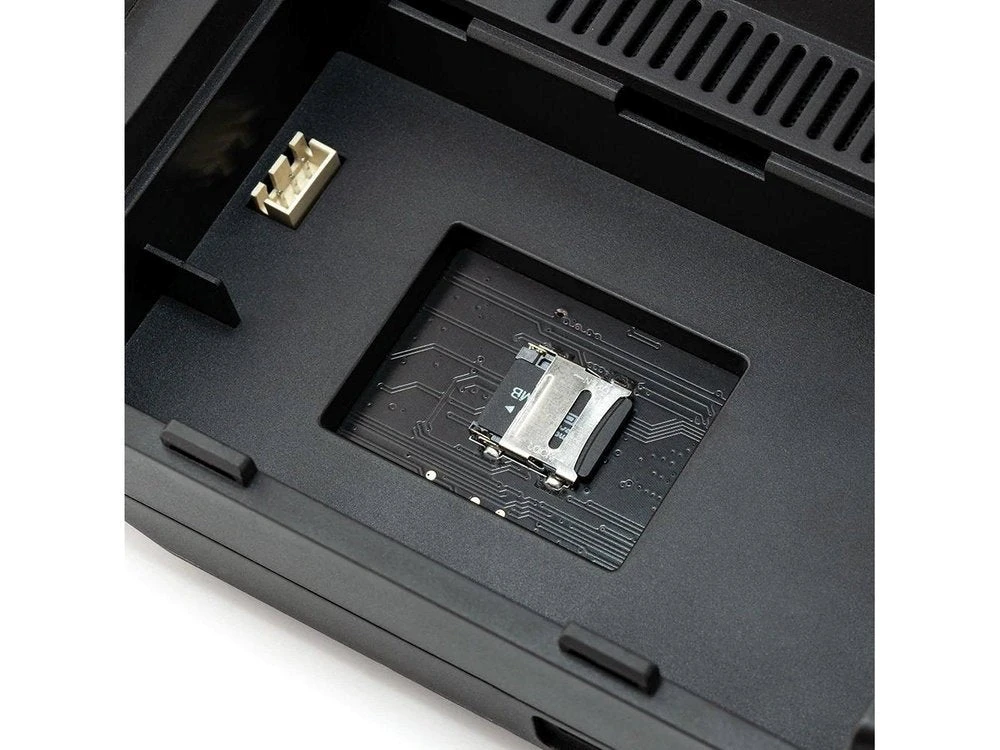

Redesigned SD card slot with pre-loaded SD card included

External module power slots in battery cover

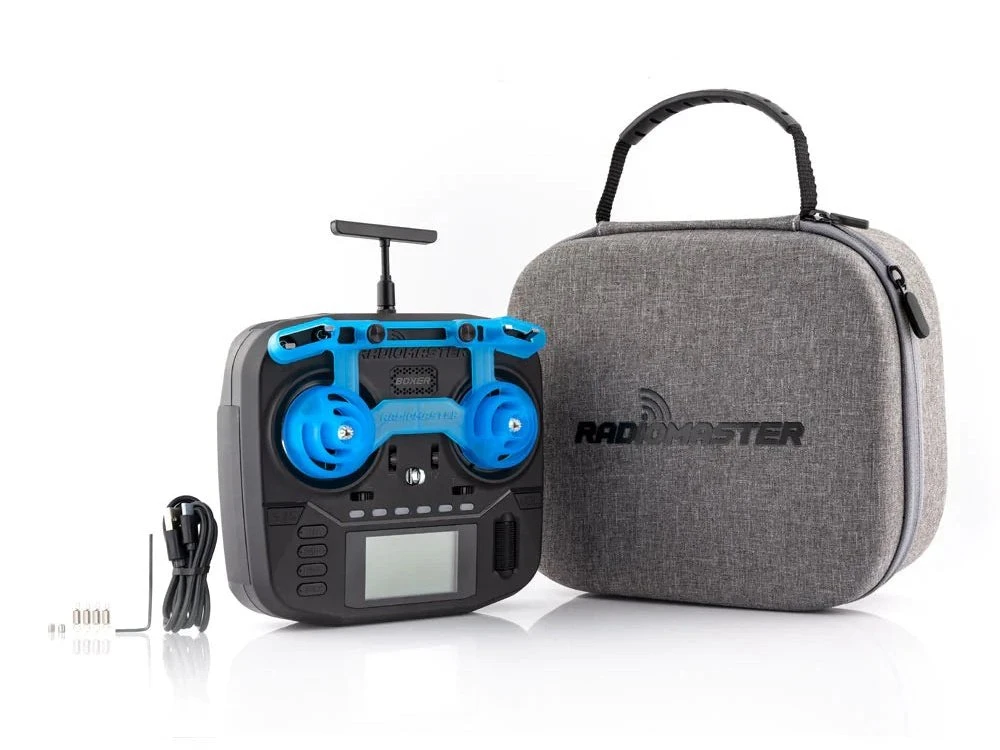

RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications:

Item: BOXER Radio

Size: 235*178*77mm

Weight: 532.5g

Frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

Transmitting Power CC2500 and 4IN1: Max 20dBm

Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)

Cooling fan: Built in (ELRS version)

Voltage Range: 6.6-8.4V DC

Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS

Channels: Max 16 channels (Receiver dependent)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

Display: 128*64 Monochrome LCD display

Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)

External module: JR/FrSKY/Crossfire compatible

Upgrade Method: USB/SD card & EdgeTX Companion PC software

EDGETX OPERATING SYSTEM

Preinstalled with EdgeTX, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.

AVAILABLE WITH EXPRESSLRS AND 4-IN-1/CC2500 VERSIONS

In addition to the popular internal 4-in-1 Multi-module (CC2500, NRF24L01, A7105 and CYRF6936) and the CC2500 only version, the BOXER is now also available with a high-power, fan-cooled, 1W internal 2.4GHz ExpressLRS (ELRS) module. Designed to provide reliable long-distance control, minimal latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm.

POWERFUL STM32VGT6 PROCESSOR WITH 1MB RAM

COMPACT DESIGN WITH EXCELLENT ERGONOMICS
