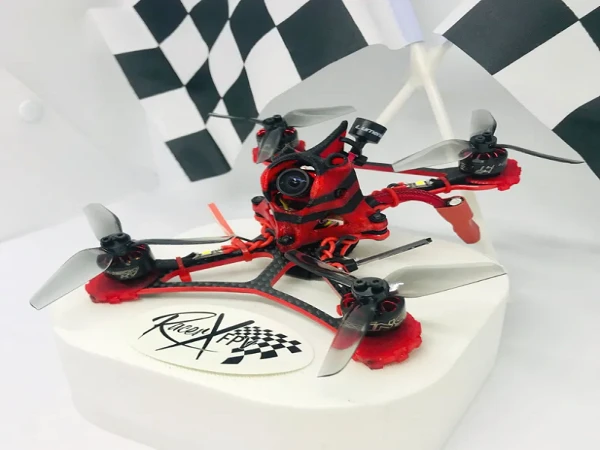

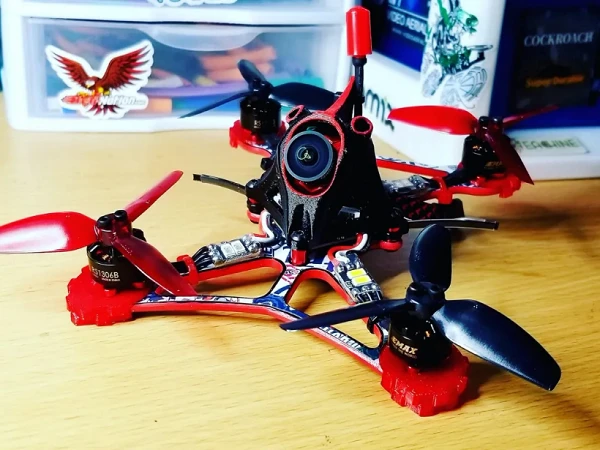

RacerXFPV Twig XL Frame Kit ( Wide-X )

The “TWIG XL” is a larger version of the original TWIG frame. All the XL frames are premium 3mm thick, high grade T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm. All the frames are approximately 140mm motor post to motor post and swing up to 3” props. The frames accommodate motor mounting for 4-hole 9×9 or 12×12 motor mounts.

All the XL frames can accommodate a 20×20 stack or whoop toothpick aio. With the newer toothpick style aio boards being now available with side mount USB access and both 12A and 20A versions, our new frame designs allowed us to provide both standard and toilet tank mounting battery strap slots and we provided you a premium Racer X FPV strap in every kit. The older style whoop aio with the usb on the bottom will not allow access to the usb from the bottom with the XL frames, so it is not recommended. All the TWIG XL frames also have our TWIG TWIST keyholes, so TPU battery mounts can also be purchased separately for both regular and toilet tank mounting for 2S, 3S, & 4S sized batteries. The standard TWIG XL canopy has 5 to 55 degrees of angle adjustment for any 19×19 micro camera. A 14×14 Nano camera can be also used with a micro camera adapter (not included).

The standard TWIG XL canopy has also been designed so that the HappyModel Diamond DVR/VTX can be used with it and you can access the SD card and buttons with the way we designed this canopy. You do not have to use a Diamond/VTX as any vtx will work with room to mount on top of the aio or 20×20 stack. The kit comes with all the required mounting hardware if you were to want to use a Diamond VTX as well two different size M3 standoffs (M3x6mm & M3x8mm) depending on how tall you build your stack or if you use a 20×20 stack.

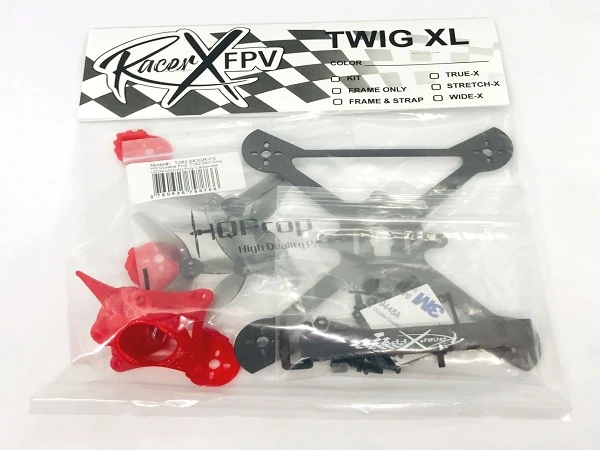

INCLUDED IN KIT

The following is included in every kit:

(1) TWIG XL Premium T700 Chamfered Frame

(1) 30mm X 30mm X 3mm Premium Umma Grip Battery Pad

(1) Custom Racer X FPX Premium, Battery Strap

(1) TPU Canopy – RANDOM COLOR

(4) TPU Arm Guards – RANDOM COLOR

(4) TPU Motor Wire Clips – RANDOM COLOR

(4) M3x6mm Black Nylon Standoffs

(4) M3X8mm Black Nylon Standoffs

(8) M3x6mm Black Button Head Socket Cap Screws

(4) M2X16mm Black Button Head Socket Cap Screws

(8) M2 Black Nylon Nuts, HQ T3X2.5X3 Props
