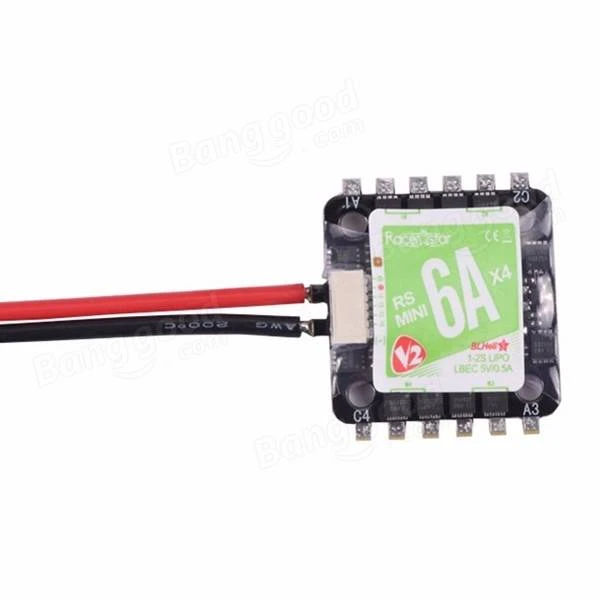

Racerstar 20x20mm Mini RS6Ax4 6A 1-2S Blheli_S BB2 4 In 1 ESC With 5V BEC Support 16.5 Dshot600

Specification:


Brand Name: Racerstar

Item Name: 6A Blheli_S BB2 4 in 1 Brushless ESC

Model: MIni RS6Ax4

Lipo Battery: 1-2S

Con. Current: 6A

Peak Current: 10A (10S)

BEC: 5V @0.5A

Programming: YES

Size(PCB): 27x27mm

Weight: 4.5g (Not including the wire and screws)

M3 Installing Hole Distance: 20x20mm

Features:

-BB2, 48MHZ Chip

-Blheli_S Firmware,

-4 in 1 ESC, Super small size (27*27mm) and light weight, easy to install and use

-With 5V 0.5A BEC

-Support 1-2S Lipo Battery

–Support Oneshot42, Oneshot125, Multishot and 16.5 Dshot600

-All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

Package Included:

1x RS6Ax4 6A 4 in 1 ESC

1x Cable

1x Manual

1x bag of screws
