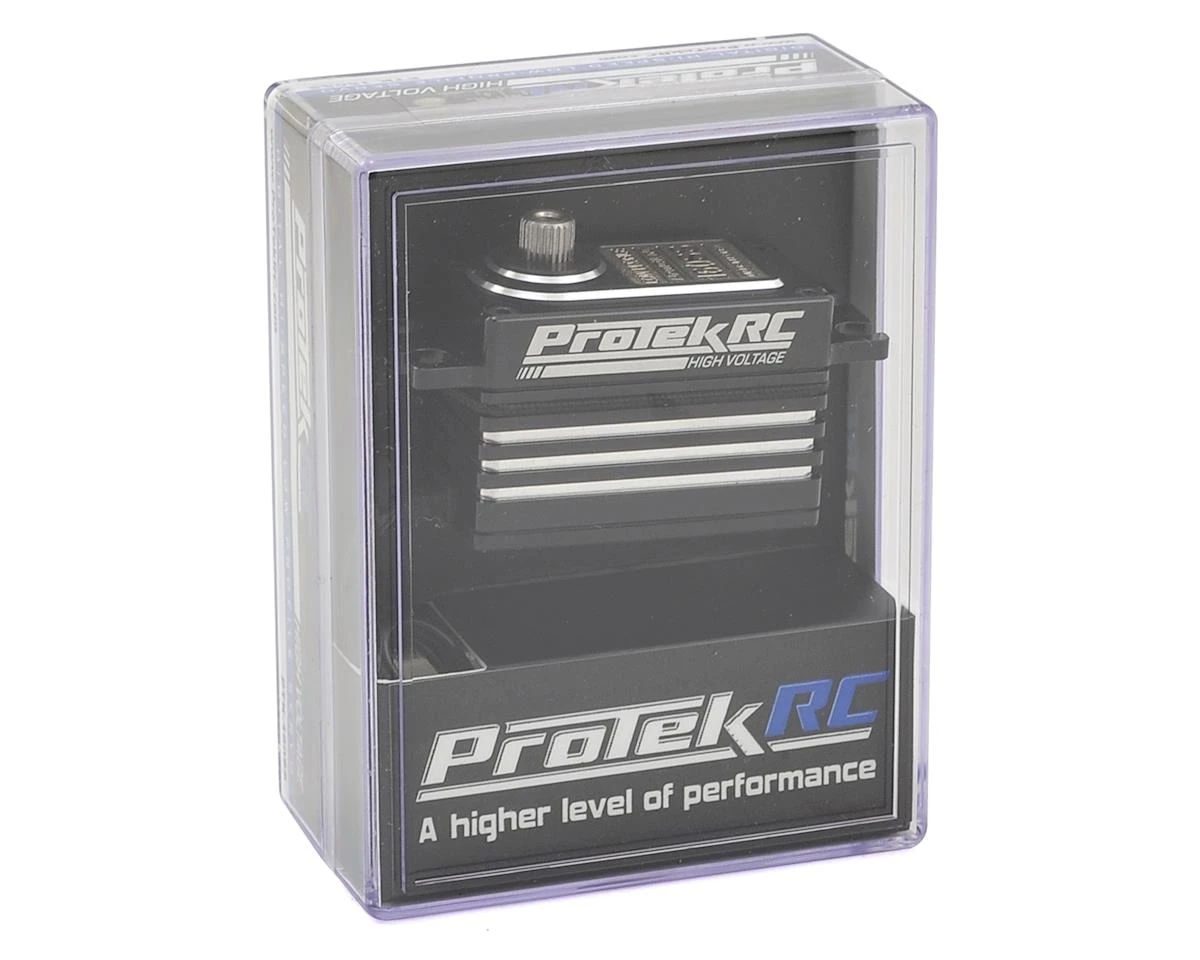

ProTek RC 160SS Low Profile Super Speed Metal Gear Servo High Voltage/Metal Case

This is the ProTek R/C 160SS Low Profile Digital “Super Speed” Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo’s that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

The ProTek R/C 160SS High Voltage Low Profile servo delivers an incredible 127 oz-in of torque and 0.05 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec’s increase to 152 oz-in and 0.04! Spec’s like these make this servo an excellent choice for any 1/12 to 1/10 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 160mm long 22awg connector wire with gold plated connectors, and a coreless motor.

Plus, instead of a cheap plastic servo horn, ProTek R/C goes the extra mile with an included aluminum single arm servo horn that will stand up to a majority of the punishment you can throw at it. And for additional rigidity, four blue aluminum servo ear guides are included as alternatives to the rubber grommets. Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don’t look back.

Features:

Low-Profile case saves space and weight

Ideal for any 1/12 to 1/10 scale vehicle application

Full aluminum case

High voltage circuitry

0.05 transit speed, and 127 oz-in of torque @ 6.0V

0.04 transit speed, and 152 oz-in of torque @ 7.4V

Aluminum single arm servo horn

Full metal gears and dual ball bearings

160mm long 22awg connector wire w/gold plated connectors

Coreless motor

SPECS

Servo Model

160SS

Recommended Application 1/12 to 1/10 scale Surface

Operating Voltage 4.8V – 7.4V

Operating Temperature 14° to 140° F (-10 to +60° C)

Operating Speed @ 6.0V 0.05/60° sec

Operating Speed @ 7.4V

0.04/60° sec

Dynamic Torque @ 6.0V

127 oz-in (9.1 kg-cm)

Dynamic Torque @ 7.4V

152 oz-in (11 kg-cm)

Motor Type

High Efficiency Coreless Motor

Output Shaft 25 Tooth

Gears Metal

Weight 54.5g

Pulse/Frequency

1520?s / 333hz
