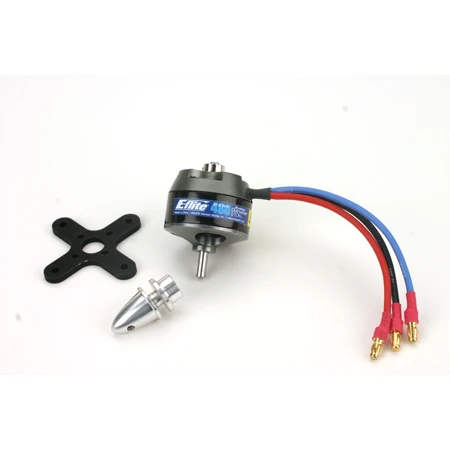

Park 480 Brushless Outrunner Motor, 910Kv

Original price was: $57.99.Current price is: $40.59.

SKU: C25OB 2353 Categories: E-Flite, Electric Motors, Electronics

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Key Features

Perfect match for 3D park flyers weighing 20?30 oz (565?850 g)

Ideal for scale park flyers 25?35 oz (710?990 g)

Ideal for models requiring up to 250 watts of power

High-torque, direct-drive alternative to inrunner brushless motors

Includes mount, prop adapters and mounting hardware

External rotor design, 4mm shaft can easily be reversed for alternative motor installations

Slotted 12-pole outrunner design

Quiet, lightweight operation

High-quality construction with ball bearings and hardened steel shaft

Overview
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 250 watts of power. It?s an especially good match for E-flite’s Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Specs

Type: Brushless outrunner

Size: Park flyer

Bearings or Bushings: One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing

Wire Gauge: 16

Recommended Prop Range: 10×7 to 12×6

Voltage: 7.2 to 12

RPM/Volt (Kv): 910

Resistance (Ri): .08 ohms

Idle Current (Io): .85A @8V

Continuous Current: 20A

Maximum Burst Current: 25A (15 sec)

Cells: 6?10 Ni-Cd/Ni-MH or 2?3S Li-Po

Speed Control: 20?35A brushless

Weight: 87 g (3.1 oz)

Overall Diameter: 35mm (1.40 in)

Shaft Diameter: 4mm (.16 in)

Overall Length: 33mm (1.30 in)

Needed to Complete
20A?35A brushless ESC

2S?3S Li-Po or 6- to 10-cell Ni-MH/Ni-CD

10×7?12×6 propeller

Tech Notes
This motor is more ideal for the Gen II Thunder Power cells. The 1020Kv version is more ideal for the Thunder Power Pro-Lite cells (ending in PL).

Maximum operating temperature: 220 degrees Fahrenheit.

Adequate cooling is required for all motor operation at maximum current levels.

Maximum burst current duration is 15 seconds. Adequate time between maximum burst intervals is required.
