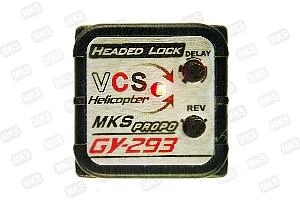

MKS GY-293 Head Lock Gyro

High Quality Gyro Made in Taiwan

Features:

? The gyro has been designed for gas and electric powered RC helicopters.
? Dual mode system: Heading lock mode or normal mode
? The gyro can be used with computer radio and/or non-computer 4-CH radio.
? The gyro gain can be remotely adjusted with 6-CH receiver, with 4-CH receiver it needs to adjust the gain on the ground.
? The temperature compensation circuit has been built in the circuit.

Installation and Set up:

Find the most ideal location in your helicopter to mount the gyro ensuring that an area of minimum vibration is chosen. Attach the double-sided adhesive tape to the bottom or the back of the gyro and mount it in the ideal position of your helicopter. The gyro must be mounted level and the axis of rotation is exactly parallel with the main shaft.

Specifications:

Dual-rate remote to switch control function
Input Voltage: DC 4.2 ~ 7.2 V
Current Consumption: 33 mA
Size: 20 x 20 x 10.5 mm
Weight” 7g
External VR1(GAIN) switch set brake(delay control function )
External VR2(REV) set REV(reverse)function
