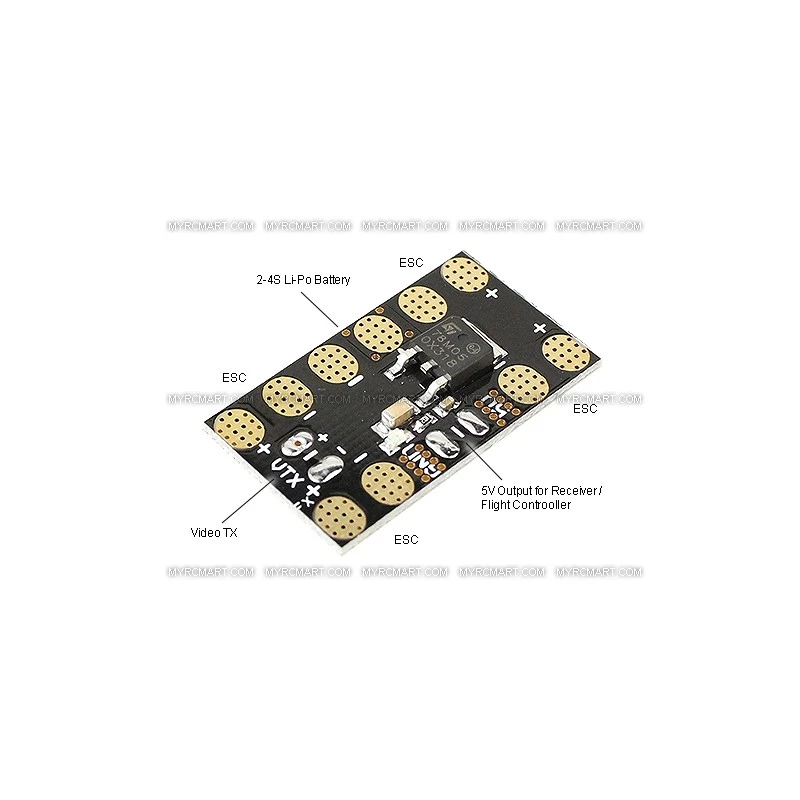

Mini Power Distribution Board (35x20mm / 5 Output BEC)

This Mini Power Distribution Board is designed for micro multirotor copters between 120-160mm frame that the maximum current will not excess 50A. You can simply use Double Sided Tape (with thin soft foam) to stick this board on the frame.

Specification

Weight: Approx 2.1g

Size: 35x20mm

Input Voltage: 2-6S

BEC Output: 5V (precision2.5%)

Linear Output Current: 500mA(4S IN)，800mA(3S IN),1000mA(2S IN)

Max Output Current: 50A Max.

Installation Screw Hole: M3*30.50*30.50 (30.50mm distance between the center of two M3 holes)

Was designed for CC3D Flight Controller
