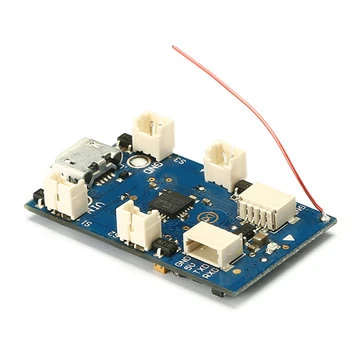

Micro Scisky 32bits Brushed Flight Control Board Based On Naze32 With 1.25mm Plugs DIY Quadcopter

Original price was: $34.99.Current price is: $24.49.

SKU: C25OB 8690 Categories: 20x20 FC, Flight Controllers, MultiRotors

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Description

Size: 20.0*33.5*6.0mm (not including the USB protruding part)

Weight: 2.5g (including DSM2 compatible 7CH receiver, serial port output)

Input voltage: 1S 3.7V

Frequency for driving motor: 2000 (the frequency can be set up by user, max frequency can be 32K)

Brushed ESC: continuous working current is 3.5A, max current is 5A(5S)

Feature:

Integrated with DCDC voltage booster circuit( output 5.0V/500Ma), it can supply power for other device through IIC and UART port

The hardware of the FC is based on Naze 32, test firmware is cleanflight Naze V1.9.0 and V1.8.1.

Noting:
It will enters binding mode only after powered of 10 seconds automatically, you need to try to get transmitter closer to the board
something like 5cm will be better. No binding button on the board.
