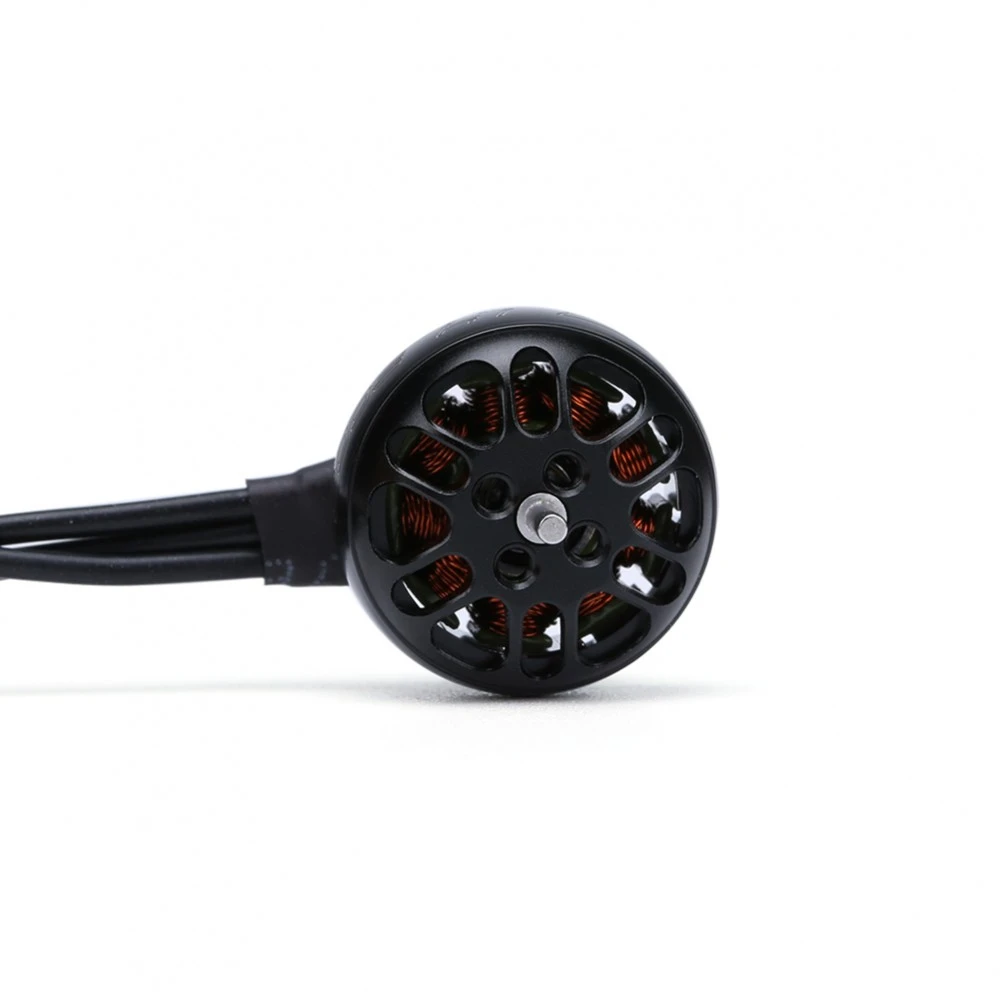

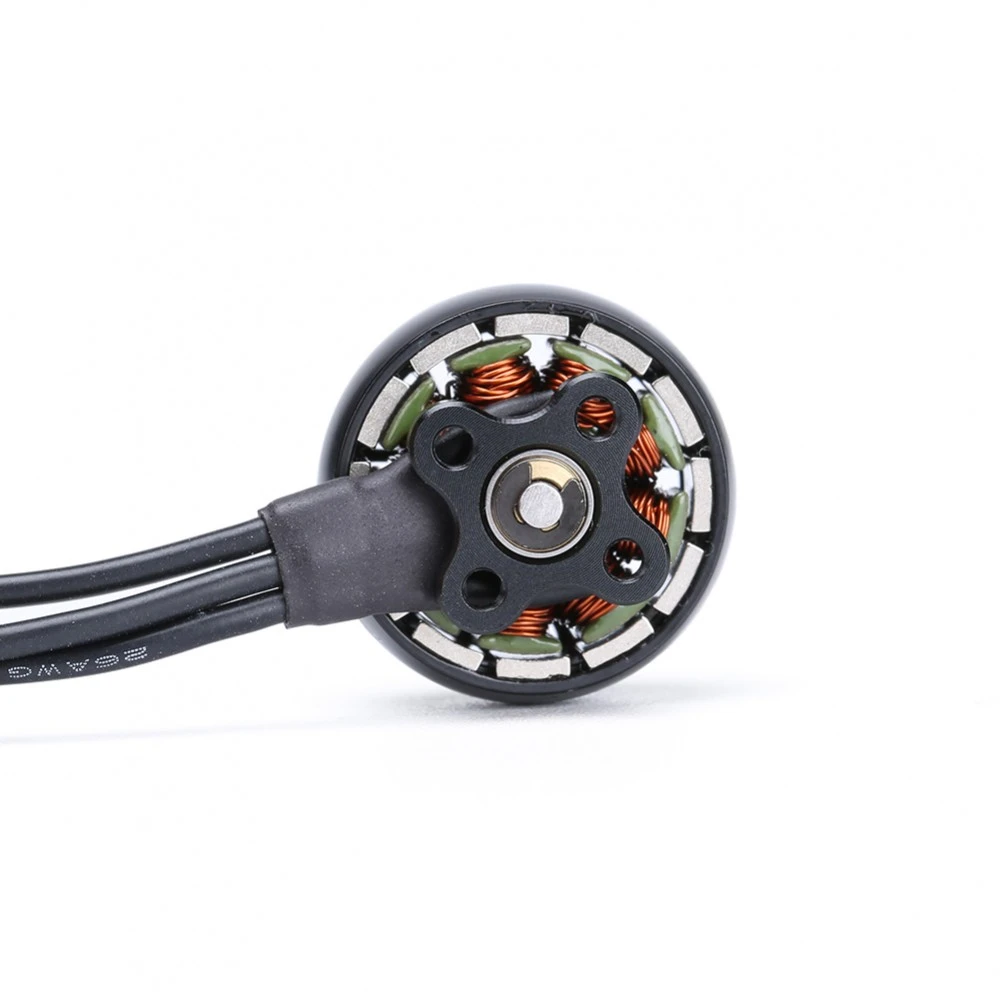

Iflight XING X1404 5500kv Toothpick Ultralight Build (black) Motor

The new MOTOR XING X1404 designed for ultralight toothpick build, that micro drone change FPV in nowadays. Super light 3″ builds like these just got much nicer since we got SucceX whoop style all in in one (AIO) with iflight new toothpick style frame you can build the ultralight microdrone.

SPECIFICATIONS

-Voltage: 2S-3S

-KV Option: 5500kv

Configuration: 9N12P

-Stator Diameter: 14mm

-Stator Length: 4mm

-Shaft Diameter:2mm

-Motor Dimensions(Dia.*Len): ?18.3×12.5mm

-No.of Cells(Lipo): 2-3S

-Max Continuous current(A): 11.8A

-Max Continuous Power(W): 174.6W

-Internal resistance: 0.28?

-Weight: 8.5g(without cable)

-Mounting pattern: 9*9*?2mm

-Bearing: 5*2*2.5mm

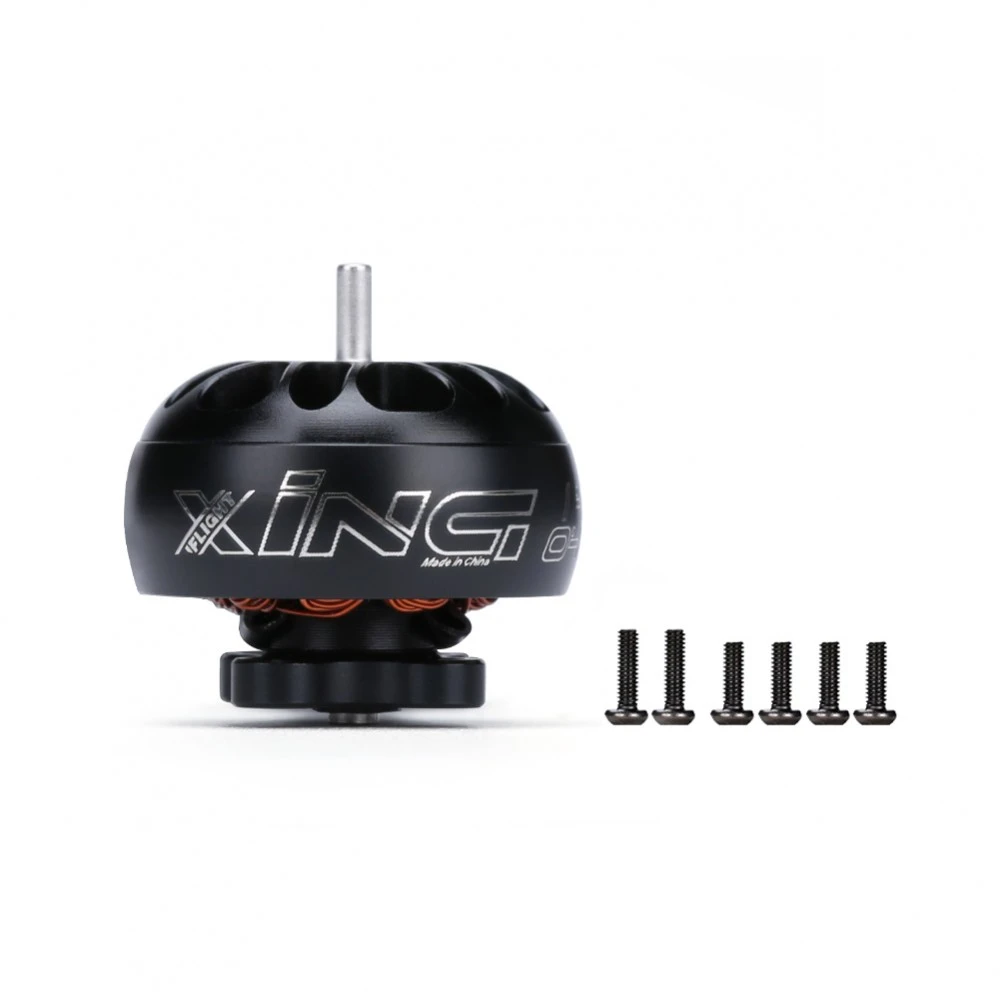

Package included:

-1 x 1404 Motor

-4x M2x5 mounting screws
