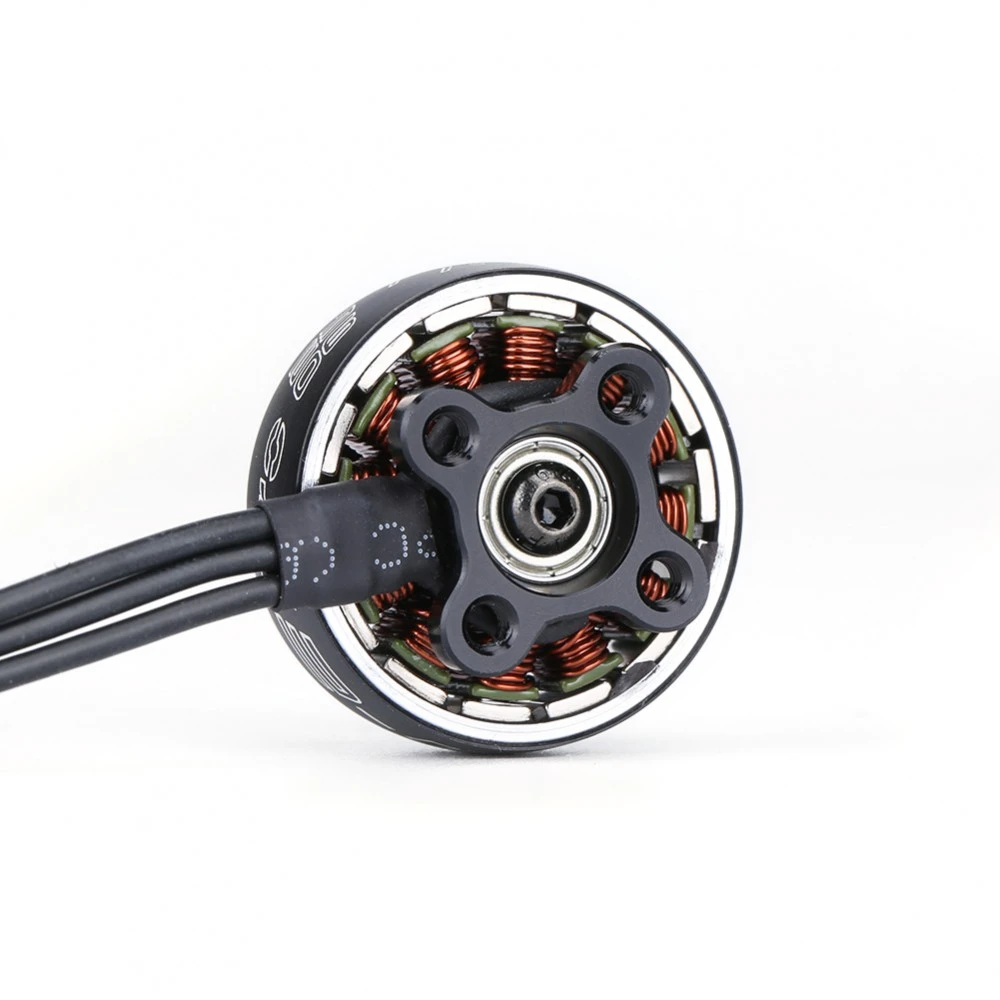

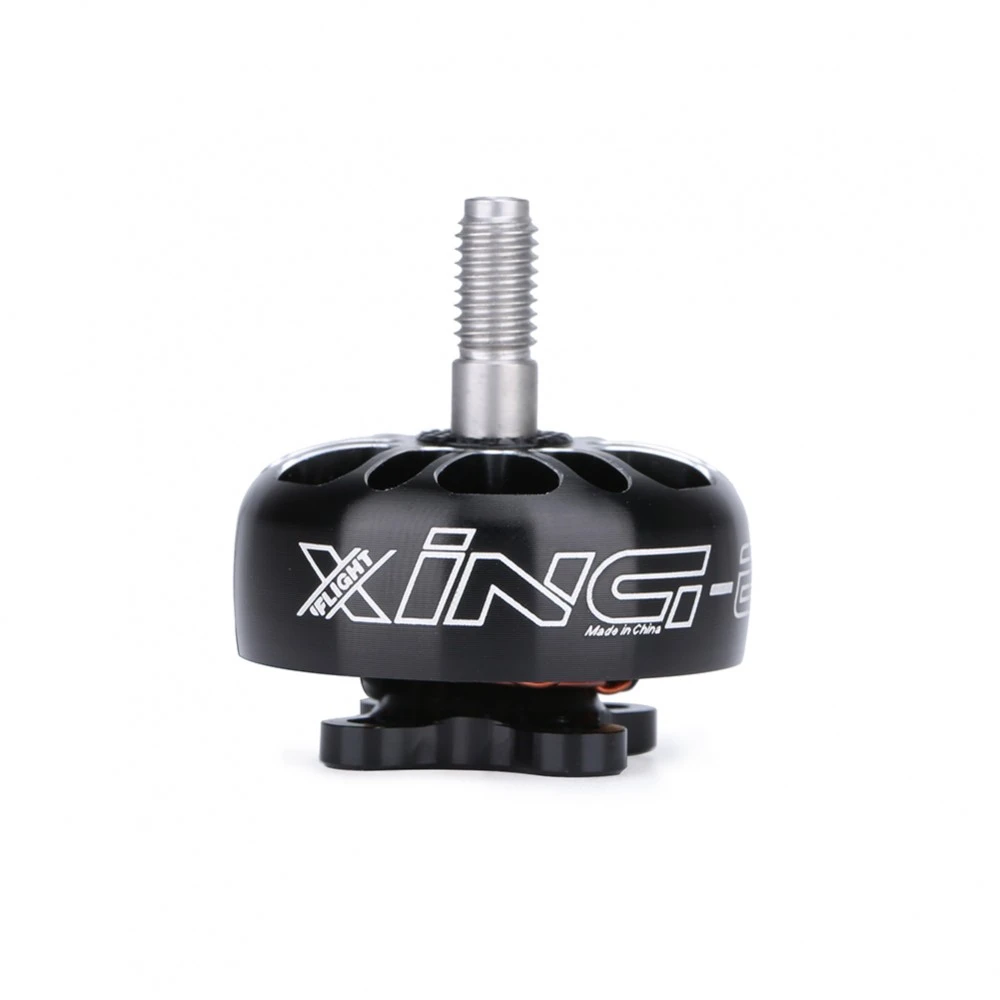

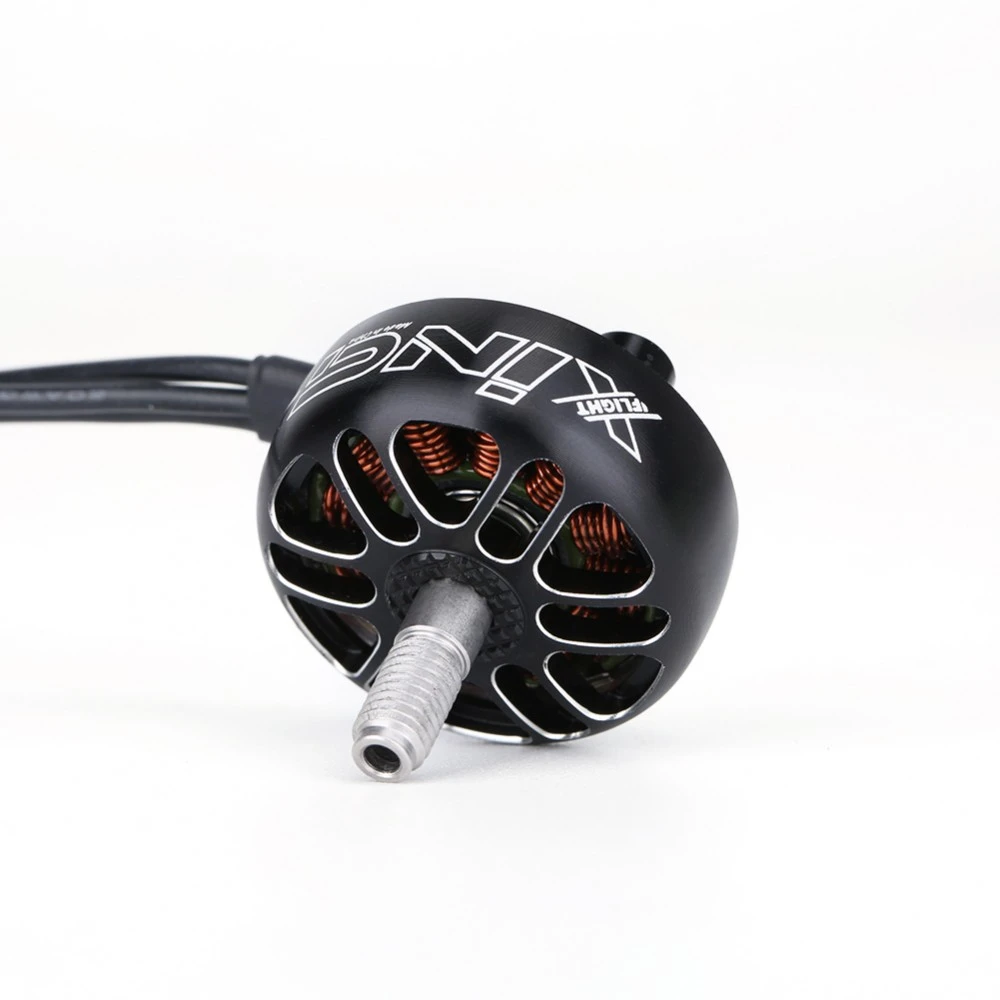

Iflight XING-E Pro 2208 1800kv 6S FPV Motor

XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable.

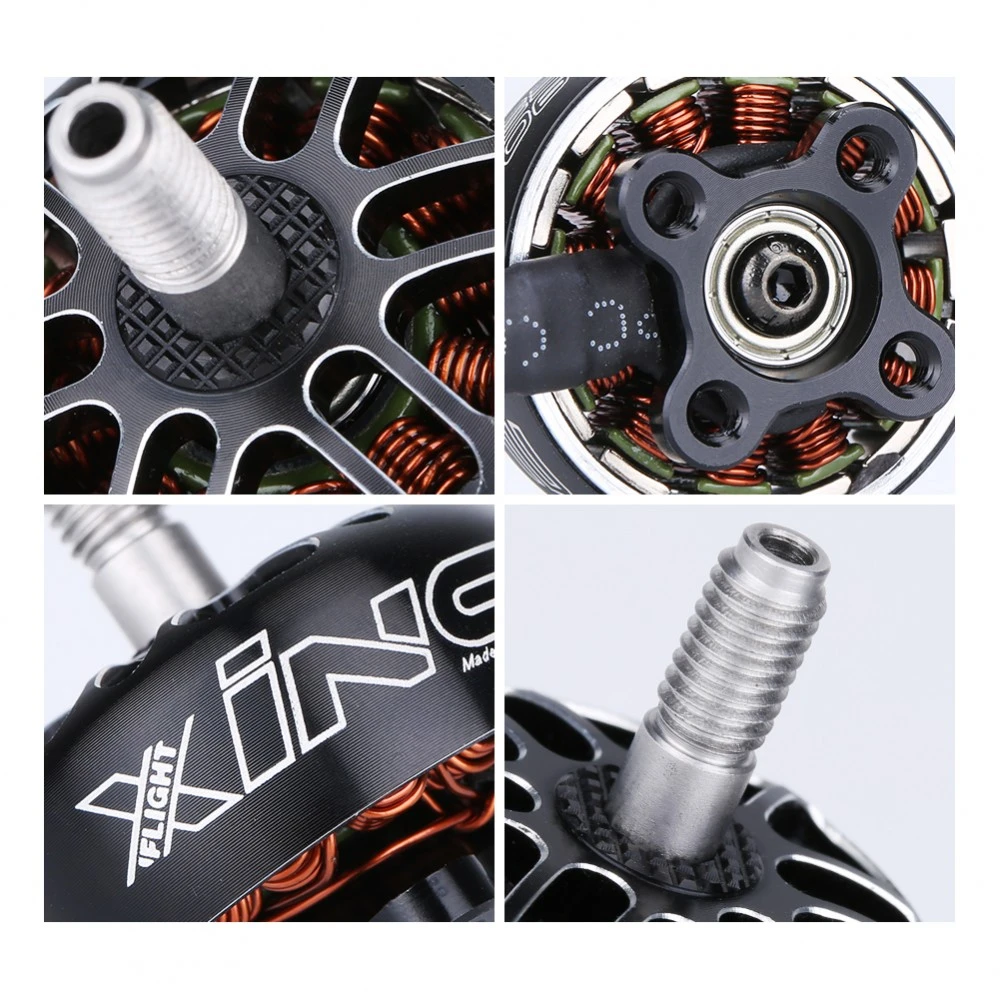

This 2208 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features

-High-strength 4mm Steel shaft

-N52H High-temperature magnets, NSK bearings

-16x16mm hole pattern

-Single strand copper winding

-Hex bolt shaft set screw

Specifications

-Configuration: 12N14P

-Stator Diameter: 24mm

-Magnets: N52SH Curved

-Bearing Size: 9x4x4

-Shaft Diameter: 4mm / Steel

-Base Mounting Pattern: 16x16mm M3 Thread

-Motor Dimension: 26.9×14.9mm

-Weight: 36.6g (150mm wires)

-Idle Current @12.6v (Io): 1.2 A

-Cells (LiPo): 2-6S

-Max Burst Current 10s: 40.43A

-Max Power (W) 60s: 970W

-Internal Resistance (Rm): 60.3m?

-Motor Wire Length: 150mm / 20AWG

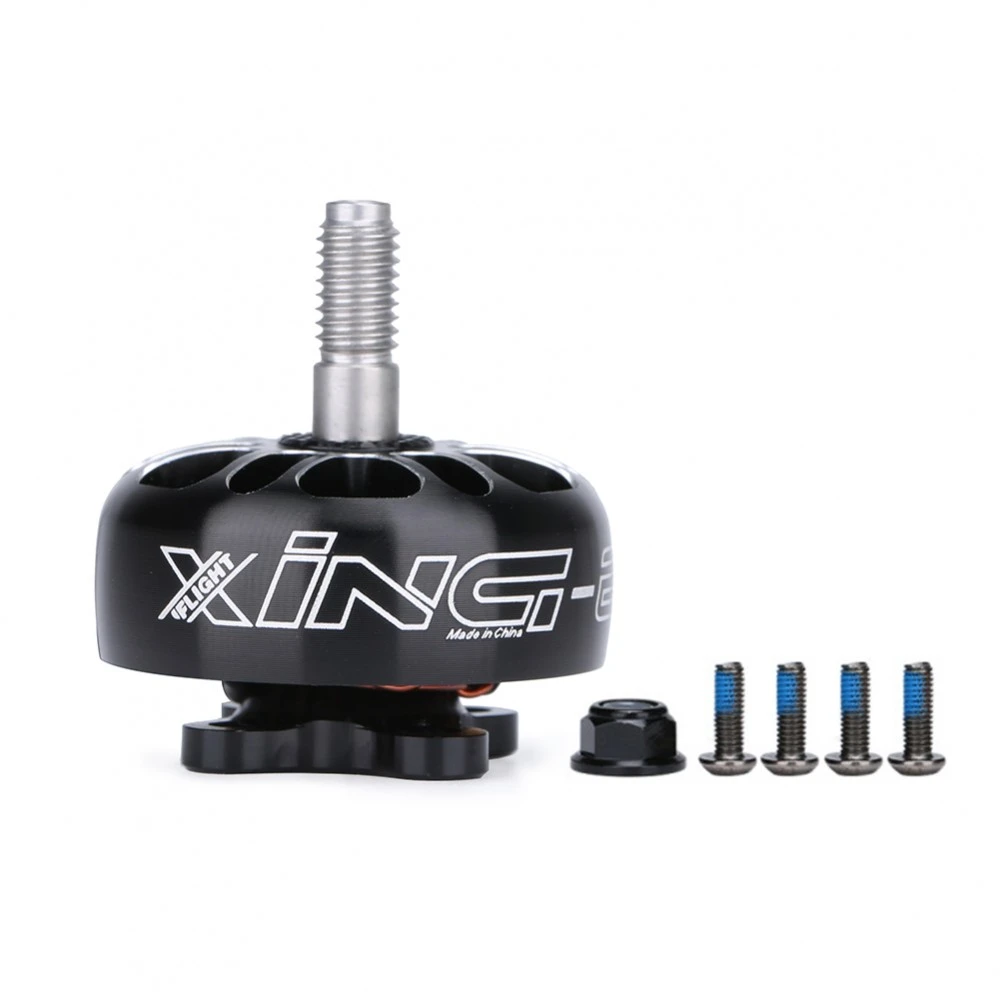

Package included:

1pc x MOTOR XING-E Pro 2208 motor
