Top Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging
Changelog:
– 2022/Feb: Version updated to V1.1 / Gyro changed to Bosch BMI270 due to availability & price issues with MPU6000.
Specifications:

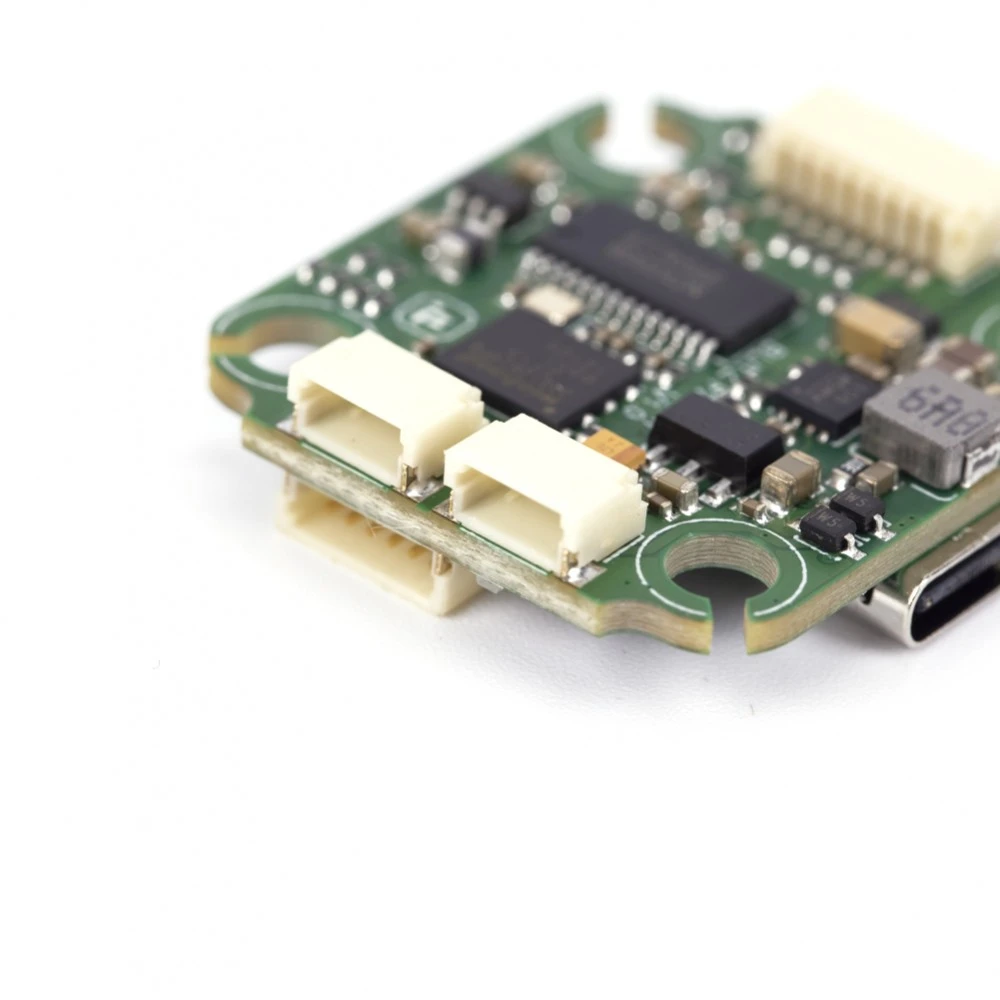

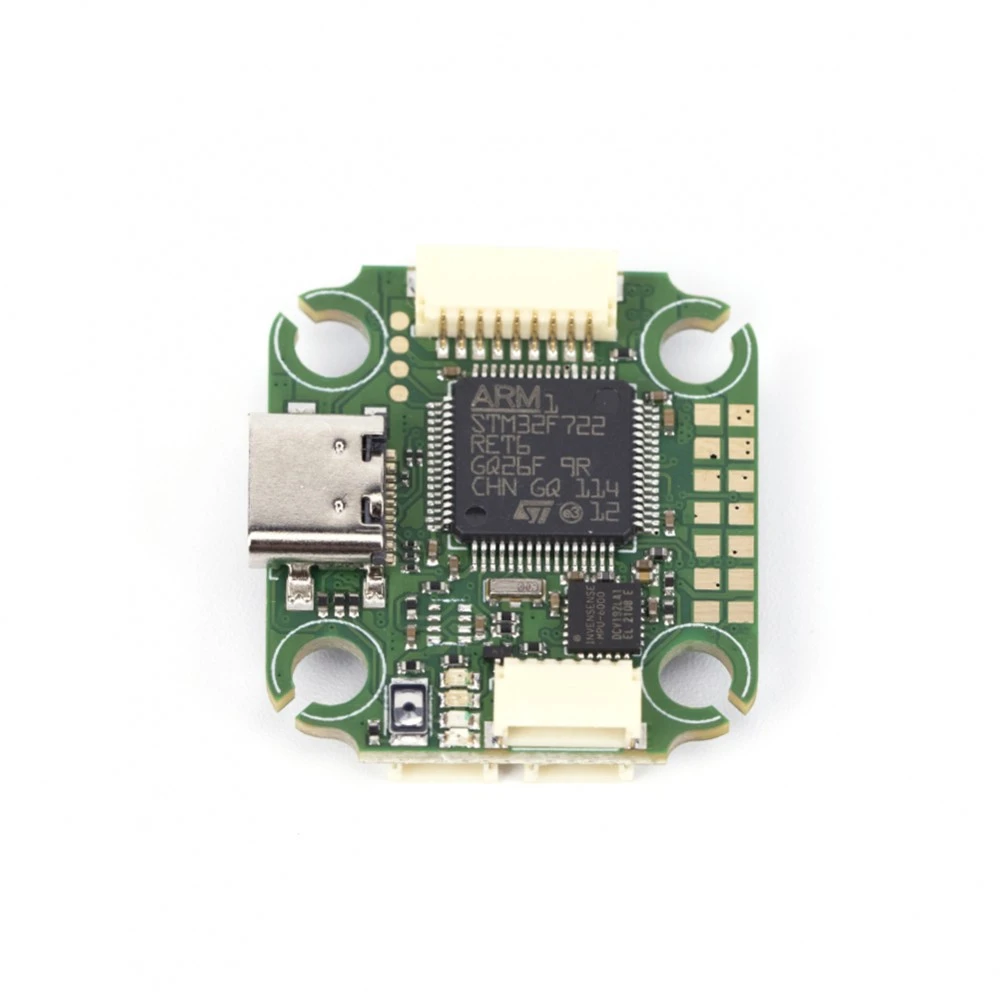

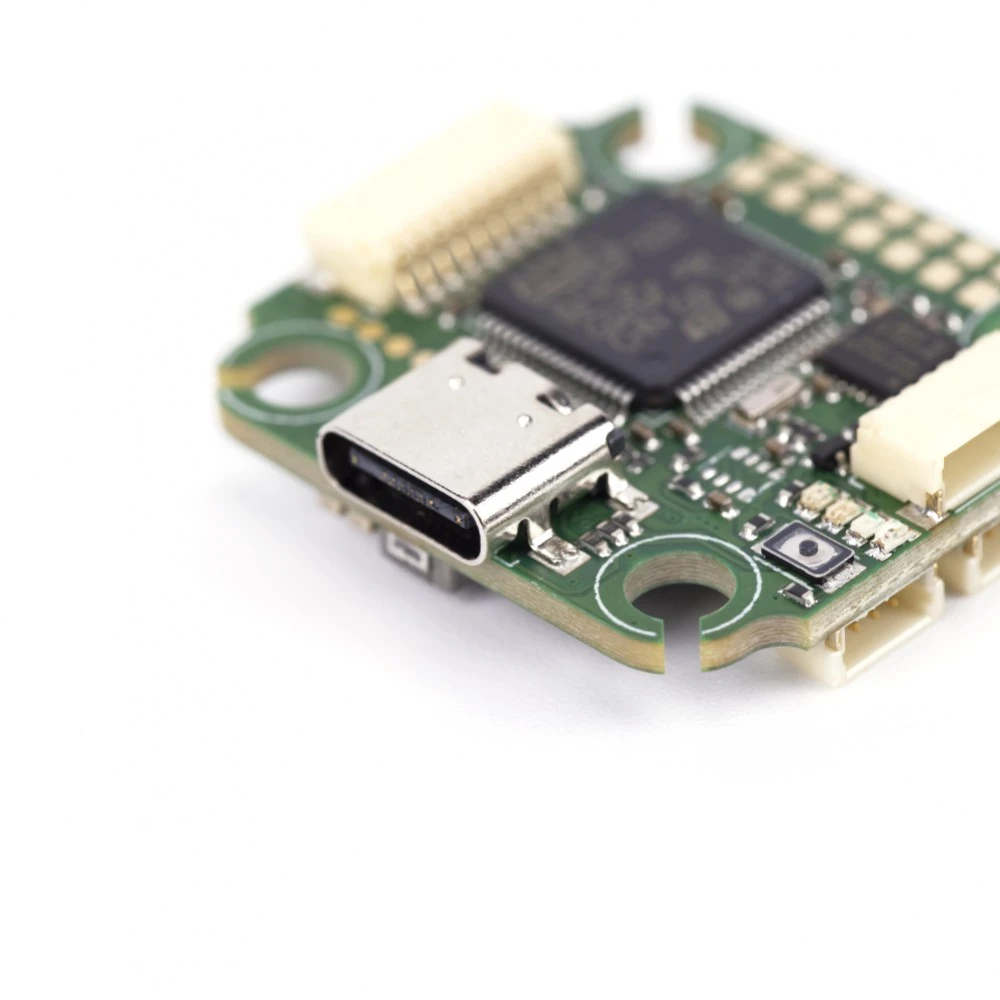

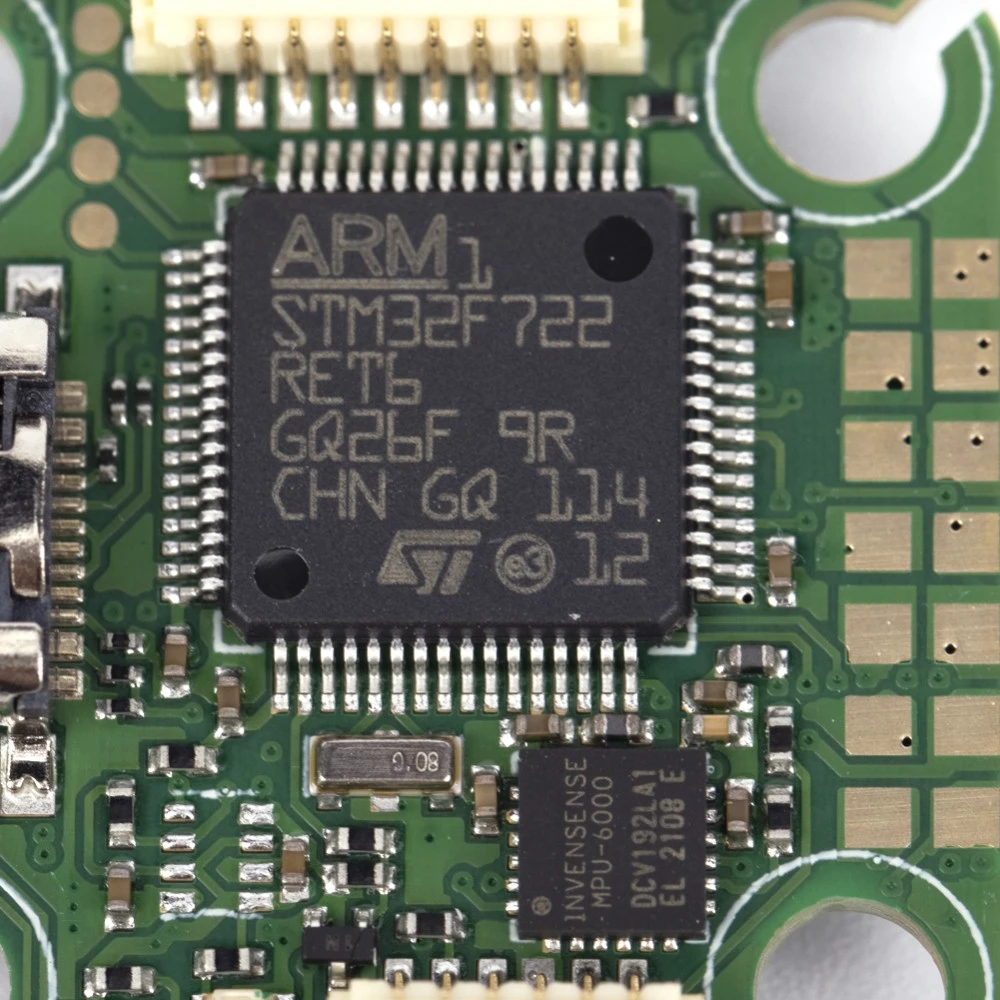

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310

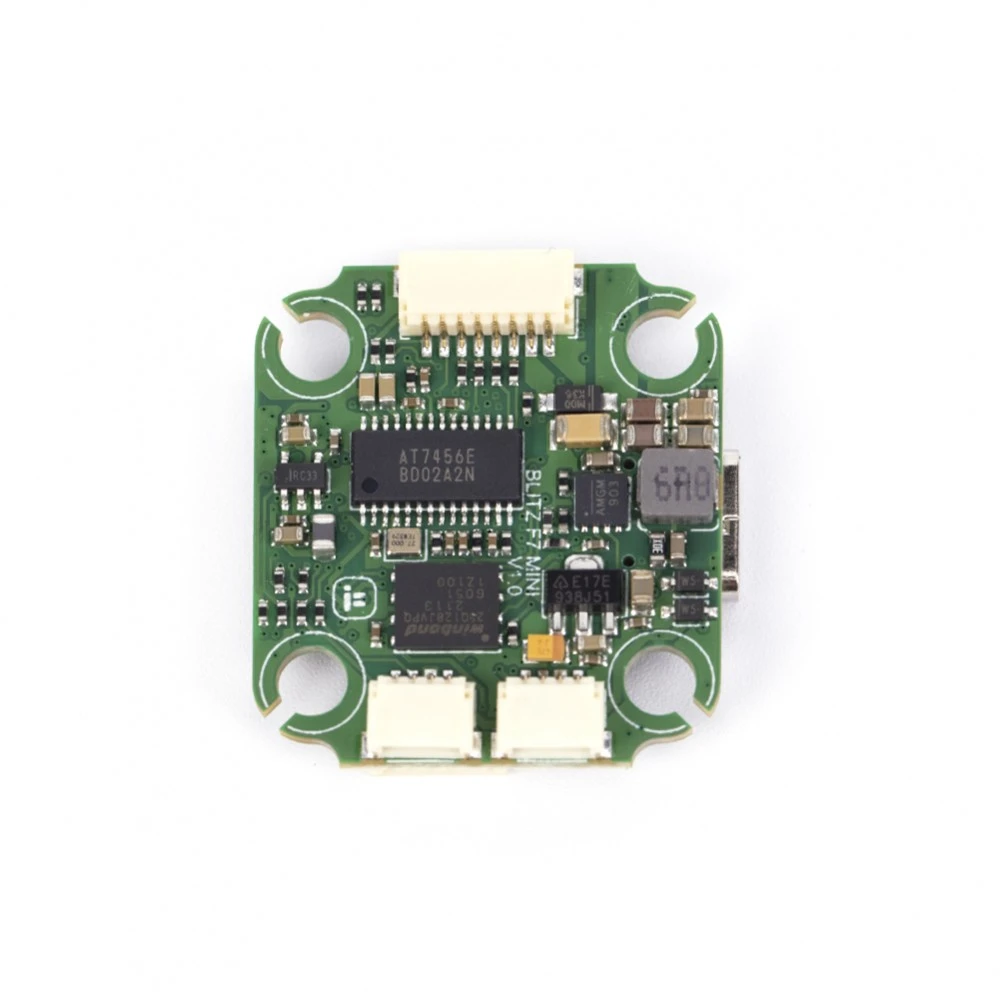

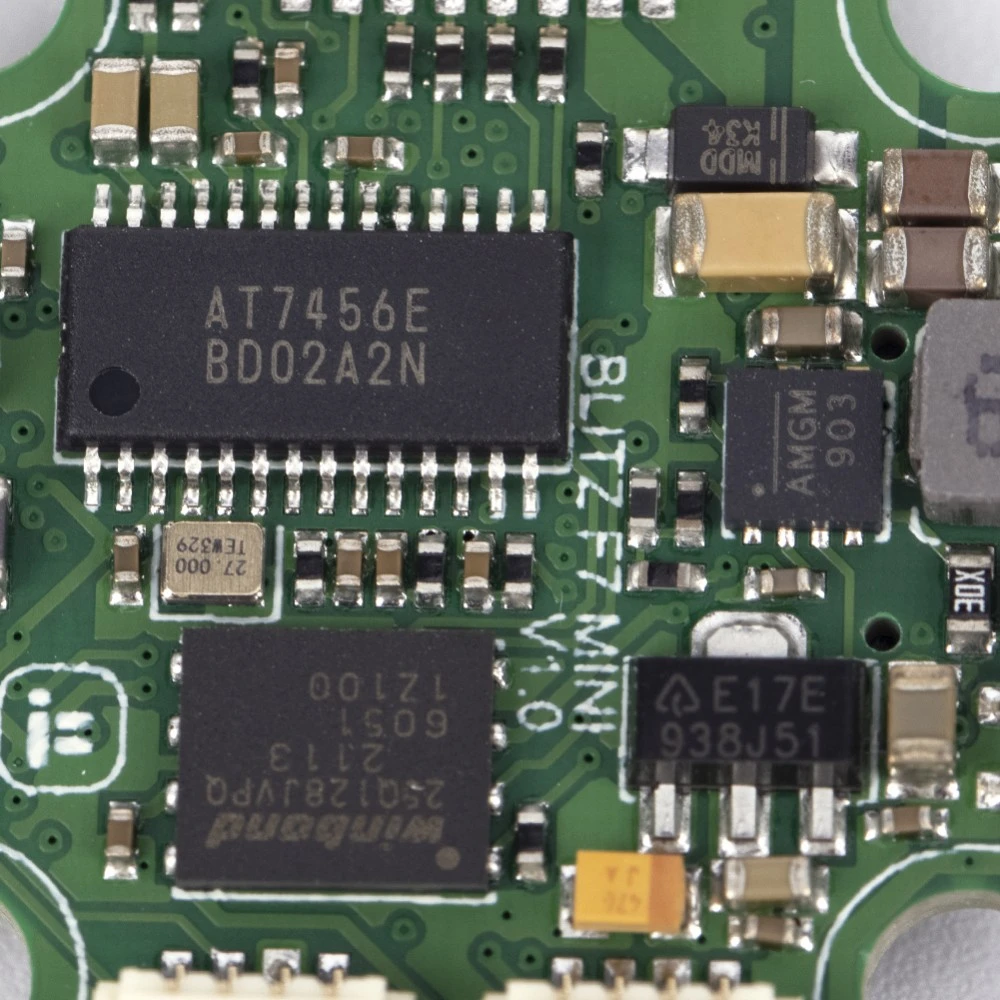

OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722

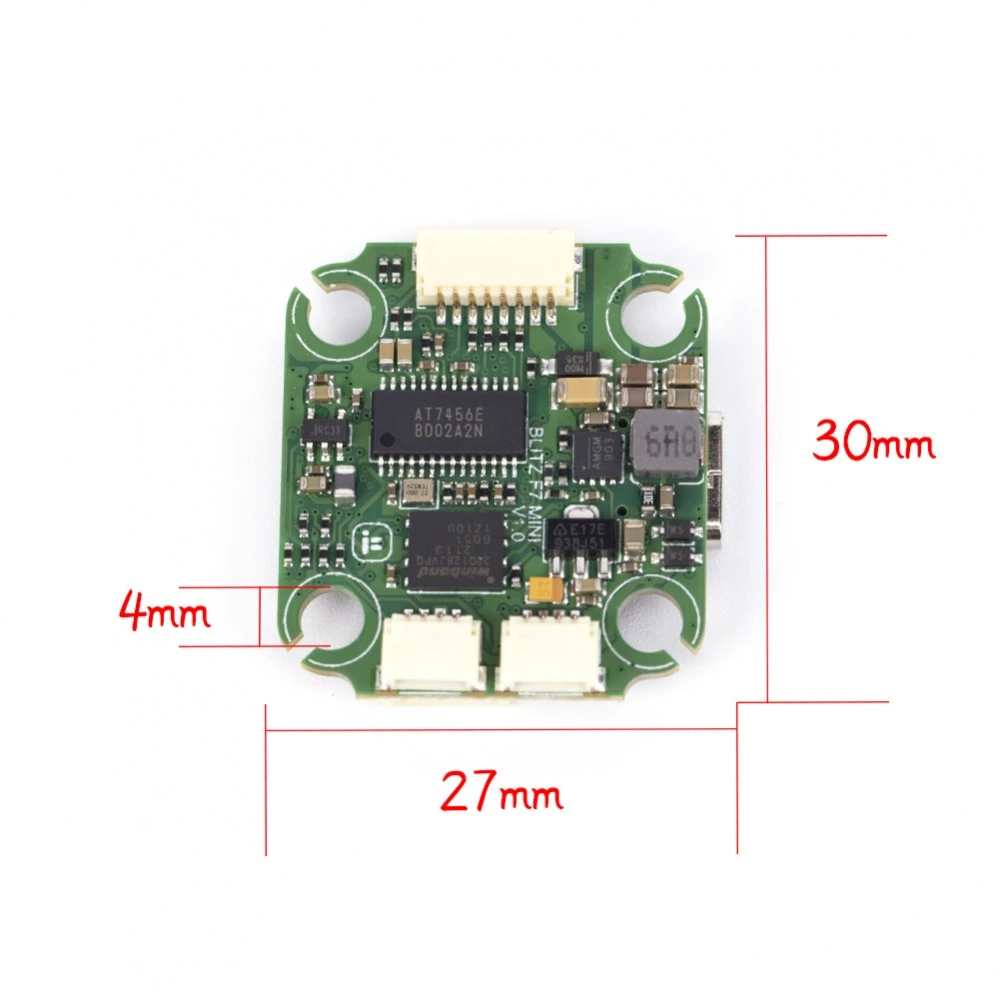

Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm

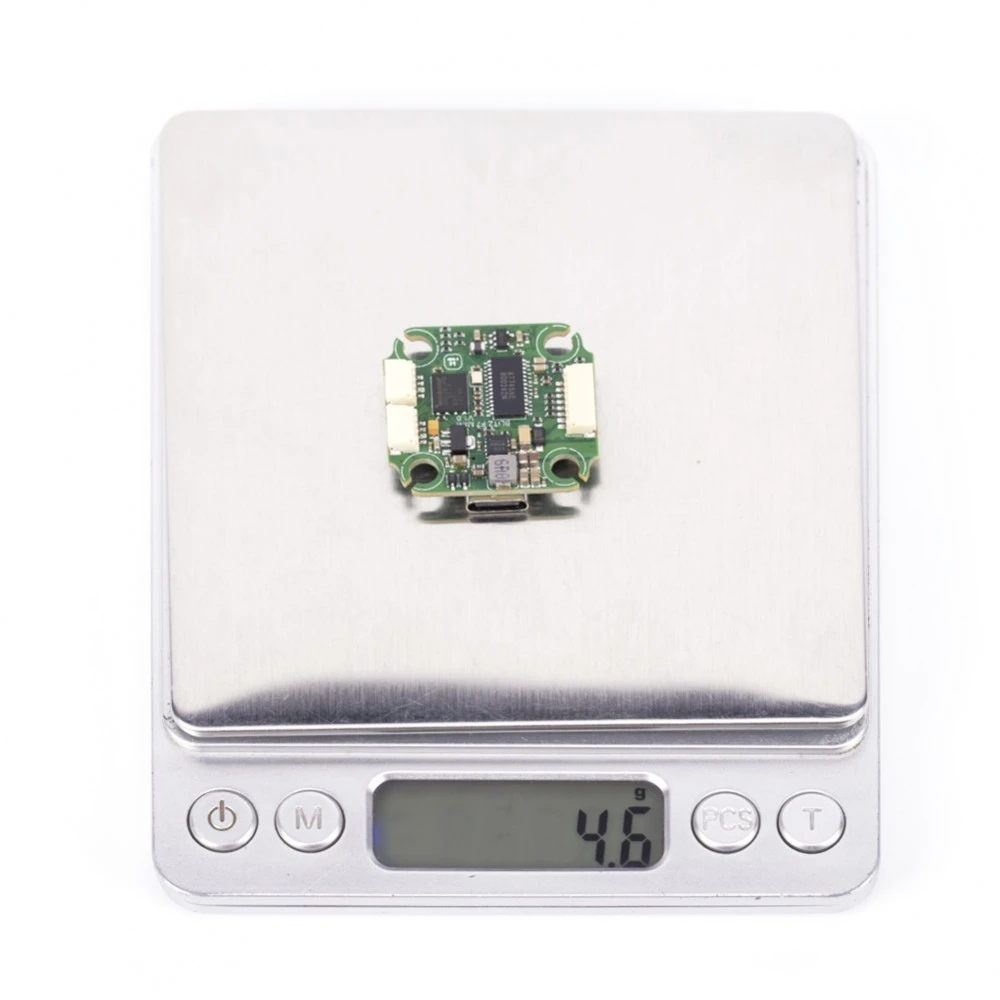

Weight: 5g
Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4/5 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry
Tips
1. F722 MCU has an inner inverter.
2. SBUS?CRSF?ELRS?IBUS?DSM ETC… can be connected to any unused UART_RX?we suggest you connect to Uart_RX2
3. Frsky SmartPort?Tramp & Smartaudio can be connected to any unused UART_TX?we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX?we suggest you connect to Uart_TX2
Included Connectors (Plug-and-Play wire harness):
– 1x SH1.0 – 9pin connector for HD VTX/Analog VTX&CAM ?5V/BAT/G/VO/T1/R1/5V/G/VI?
– 1x SH1.0 – 8pin connector for ESC?R6/CUR/M4/M3/M2/M1/BAT/G)
– 1x SH1.0 – 6pin connector for any Receiver or DJI?3V3/R2i/5V/G/R2/T2?
– 1x SH1.0 – 4Pin connector GPS (T4/R4/G/5V)
– 1x SH1.0 – 4Pin connector LED & Beeper (BUZ/LED/G/5V)
What’s in the package?
1 x BLITZ Mini F7 V1.1 Flight Controller
1 set of FC connectors (as above)
1 set silicon grommets
