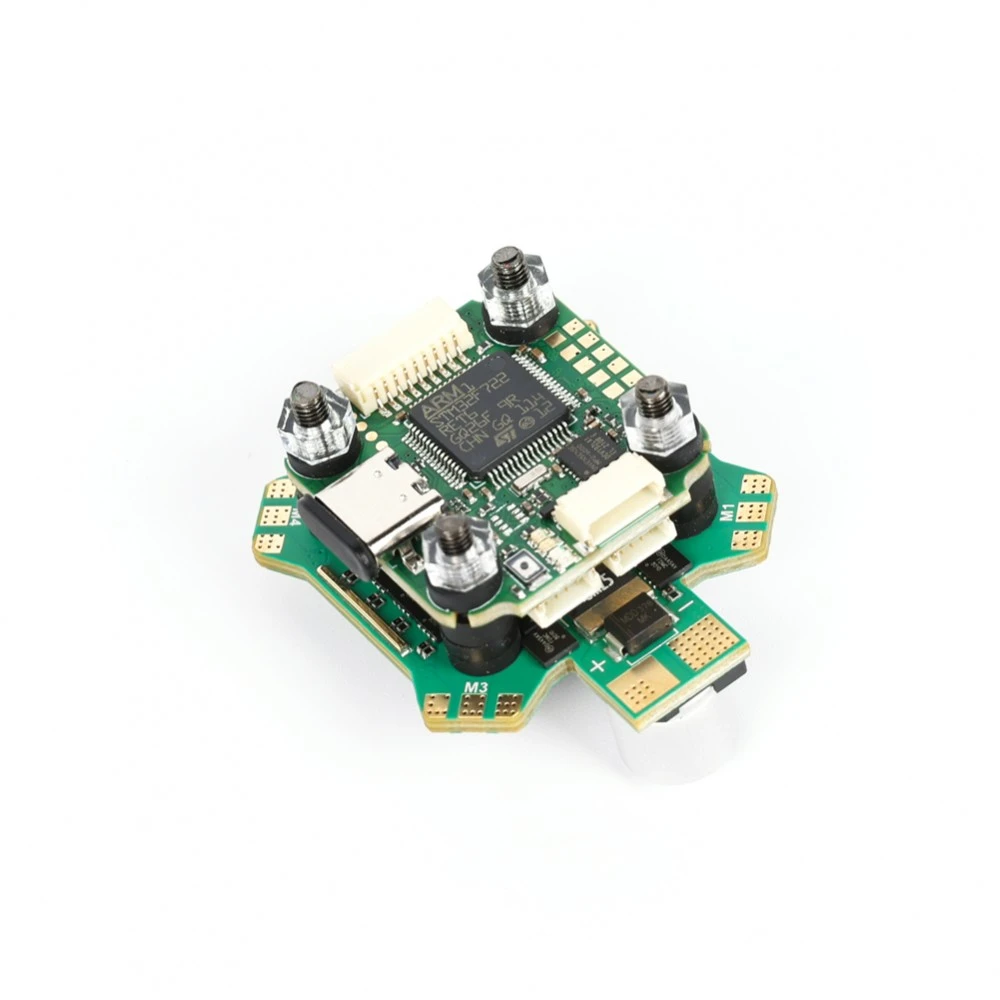

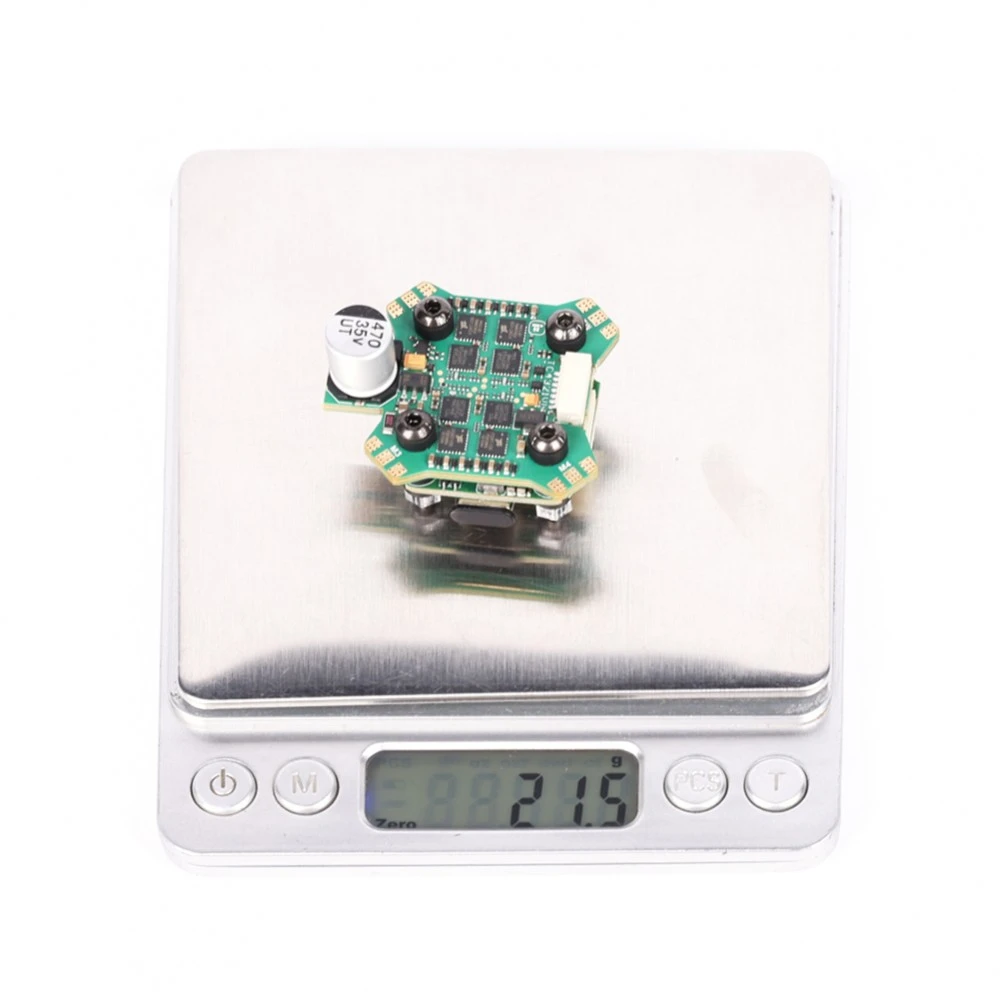

Iflight BLITZ Mini F7 Stack (Mini F7 V1.1 + 55A 4in1 ESC)

FC // BLITZ Mini F7 V1.1 Flight Controller

Top Features:

– IMPROVED CIRCUIT DESIGN, BETTER COMPONENTS AND LOWER ELECTRICAL NOISE!

– DJI HD VTX CONNECTOR (PLUG-AND-PLAY / NO SOLDERING REQUIRED)

– FC INDICATOR LEDS FOR VISUAL DEBUGGING

CHANGELOG:

– 2022/FEB: VERSION UPDATED TO V1.1 / GYRO CHANGED TO BOSCH BMI270 DUE TO AVAILABILITY & PRICE ISSUES WITH MPU6000.

Specs:

MCU: STM32 F722

GYRO: BMI270

BAROMETER: DPS310

OSD CHIP: AT7456

FLASH: 16MB (BLACKBOX FLASH)

UARTS: 6

MOTOR OUTPUTS: 4X (SH1.0 CONNECTOR)

I2C SERIAL: SDA / SLA PADS

SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED

LED CONTROLLER: YES

BEEPER PAD: YES

FIRMWARE TARGET: IFRC-IFLIGHT_BLITZ_F722

MOUNT PATTERN: 20X20 MM / 4MM PCB HOLE DIAMETER, SILICON GROMMETS FOR M3 SCREWS

DIMENSIONS: 30.5X27 MM

WEIGHT: 5G

WIRING SUGGESTION:

– UART 1 FOR VTX HD / ANALOG

– UART 2 FOR A RECEIVER

– UART 3/4/5 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT

– UART 6 FOR ESC TELEMETRY

TIPS

1. F722 MCU HAS AN INNER INVERTER.

2. SBUS, CRSF, ELRS, IBUS, DSM ETC… CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2

3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1

4. F.PORT CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX2

ESC // BLITZ Mini E55 4-IN-1 2-6S ESC

SPECIFICATION:

– DIMENSION: 35*42MM

– MOUNTING HOLES: 20*20MM/?4MM

– WEIGHT: 11.3G

– SUPPORTS 2-6S LIPO INPUT

– MCU? G071

– CONSTANT: 55 AMPS

– BURST: 60 AMPS

– CURRENT SENSOR: YES

– BEC: NO

– CURRENT RATE: 100

– SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.

– FIRMWARE: BLHELI 32

– TARGET: IFLIGHT_BLITZ_G1

Package included:

– 1pc x BLITZ Mini F7 V1.1 Flight Controller

– 1pc x BLITZ Mini E55 4-IN-1 2-6S ESC

– 1set x silicon grommets

– 1set x wire harness for F7 Flight controller
