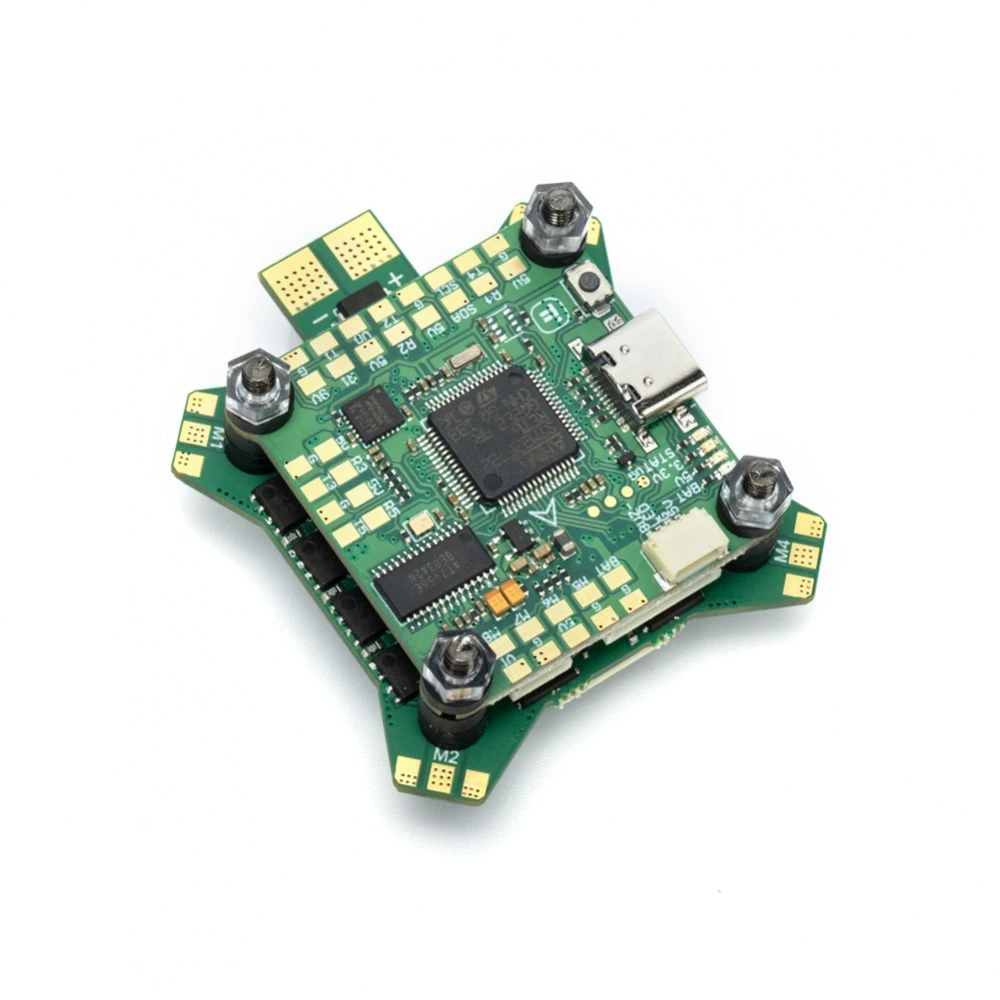

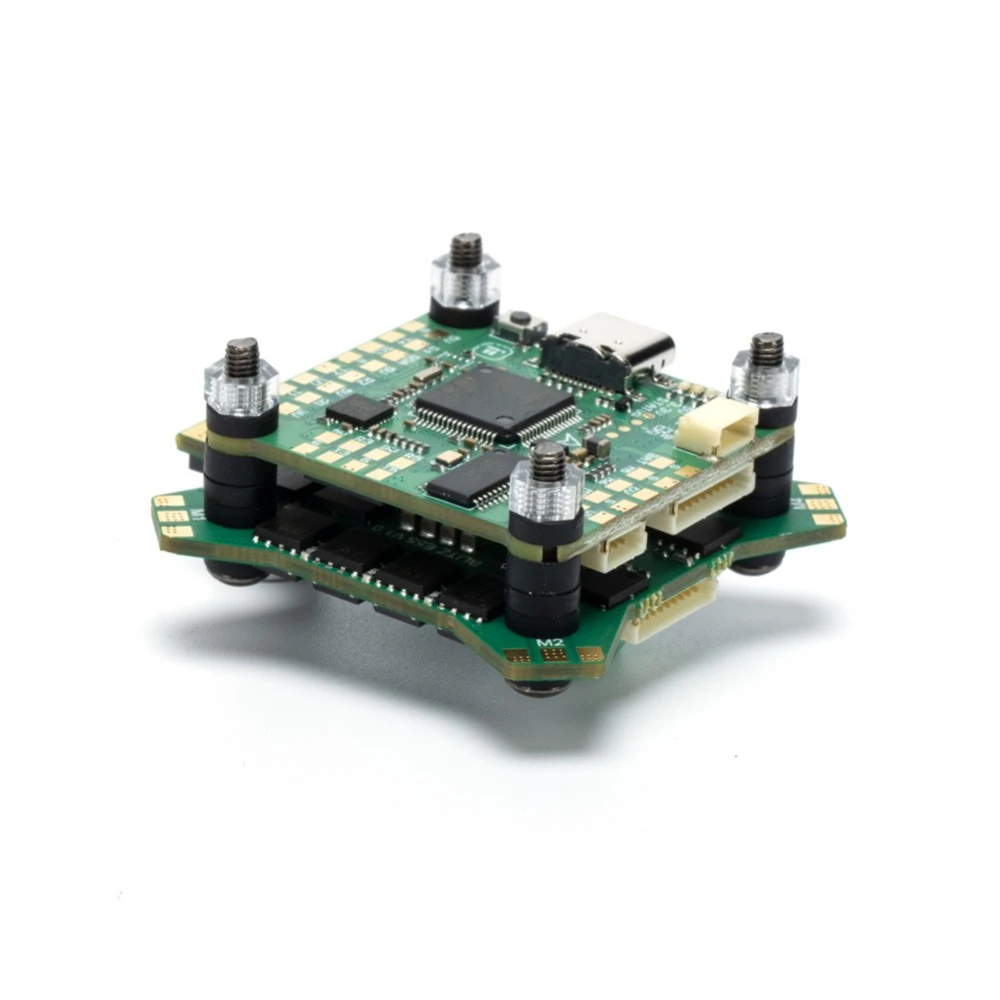

FC // BLITZ F7 V1,1 Flight Controller
Top Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)

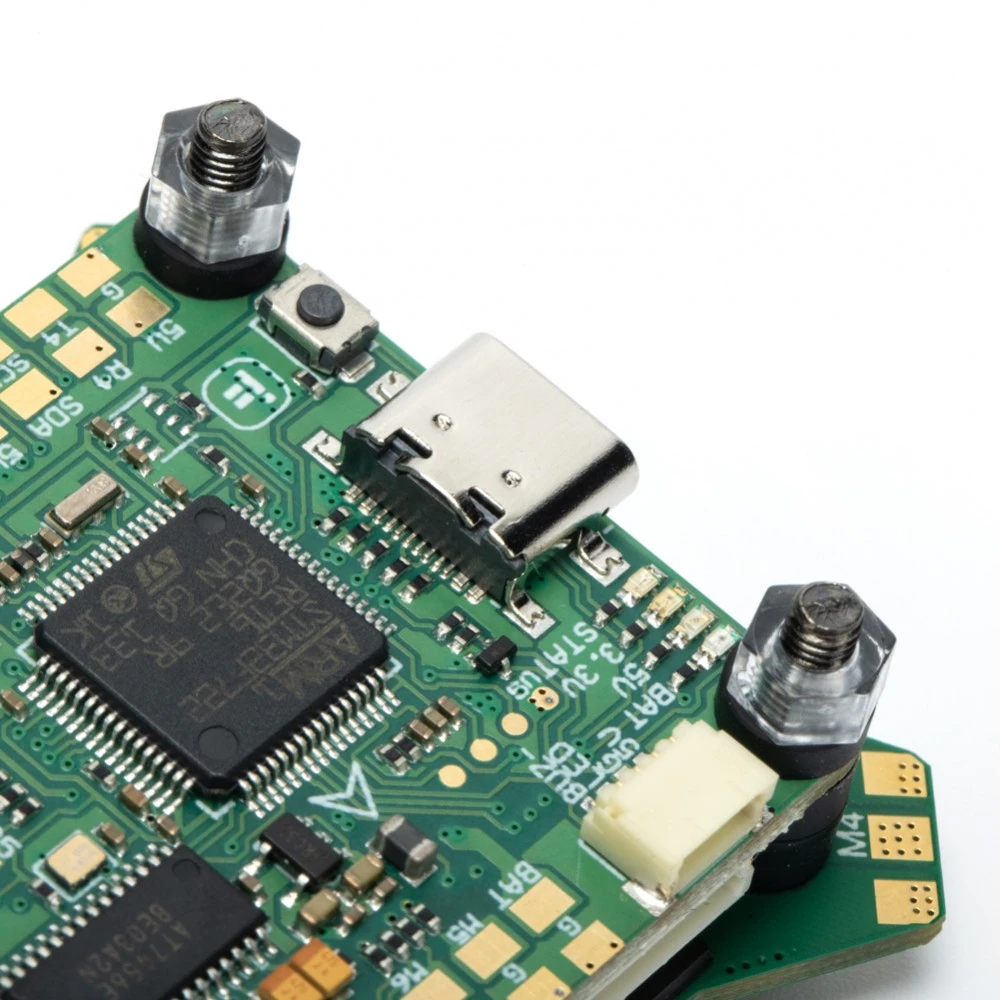

– FC indicator LEDs for visual debugging
– With LC filter
Changelog:
– 2022/Feb: Version updated to V1.1 / Gyro changed to Bosch BMI270 due to availability & price issues with MPU6000.

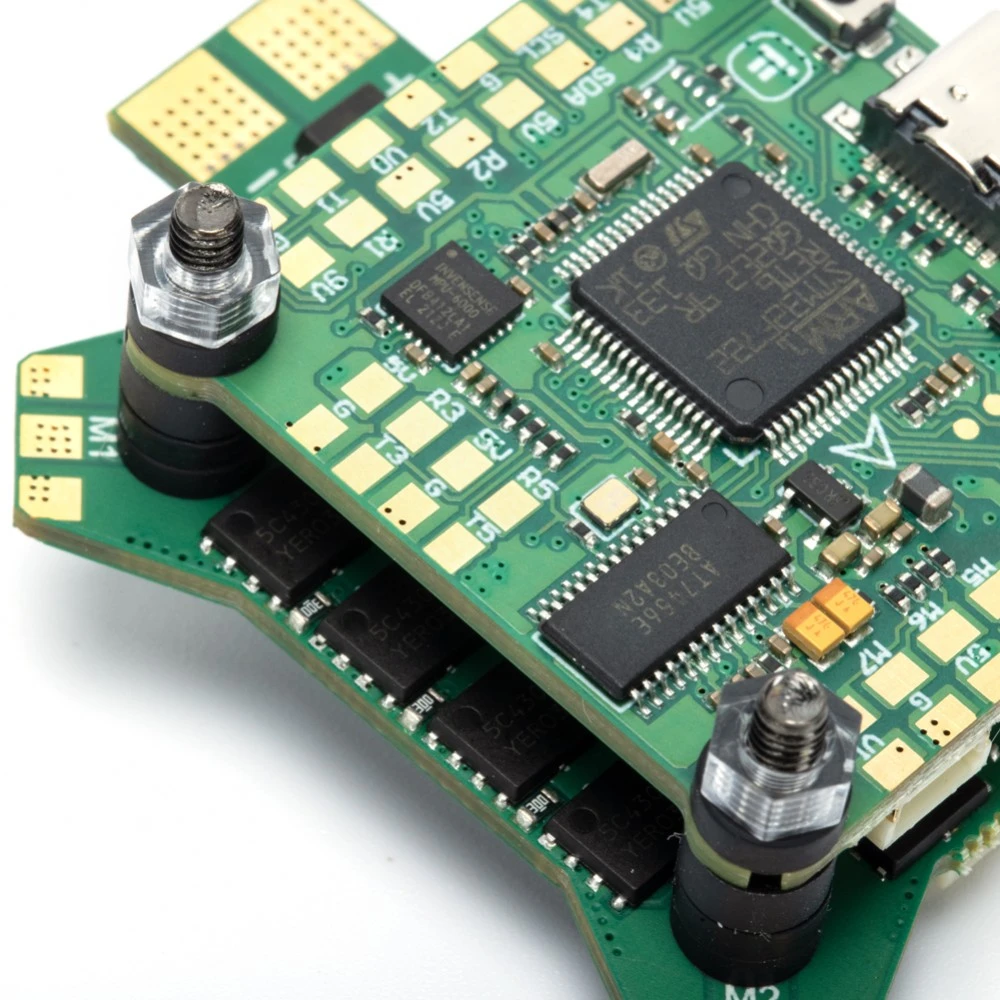

Specifications:

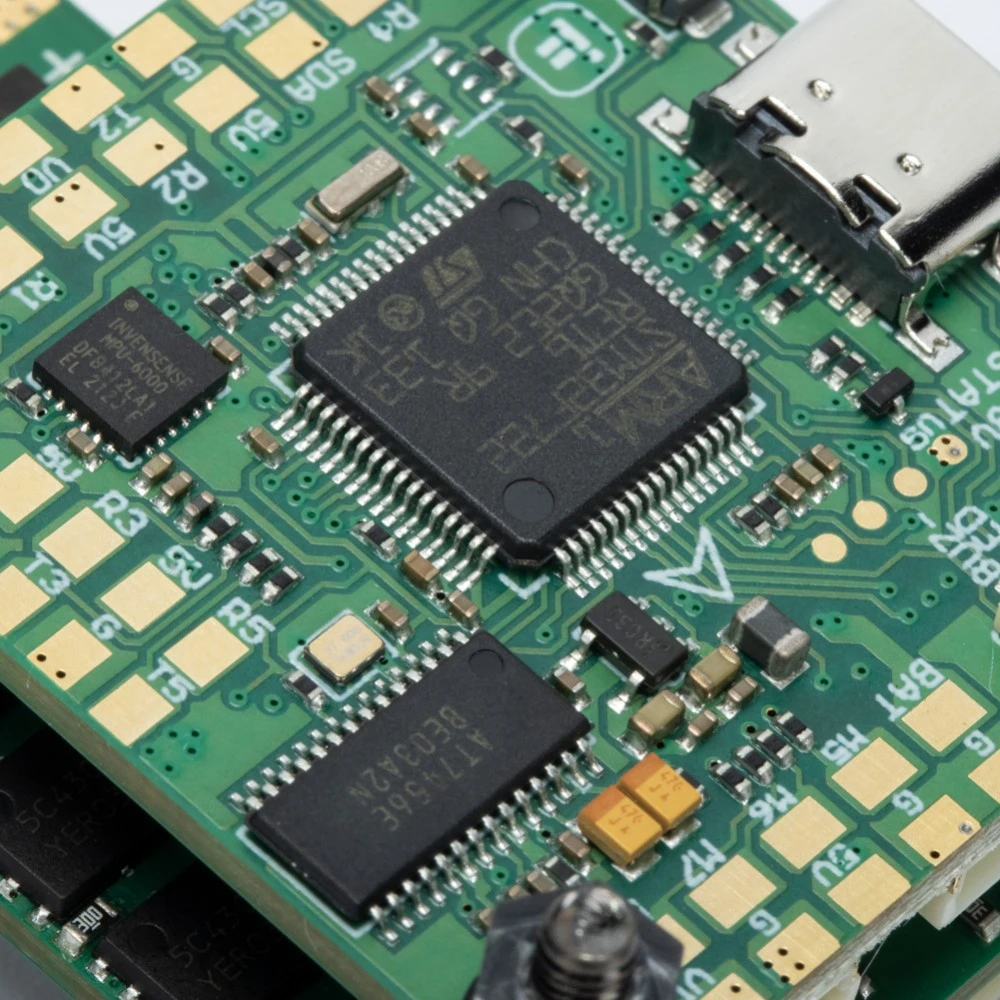

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm

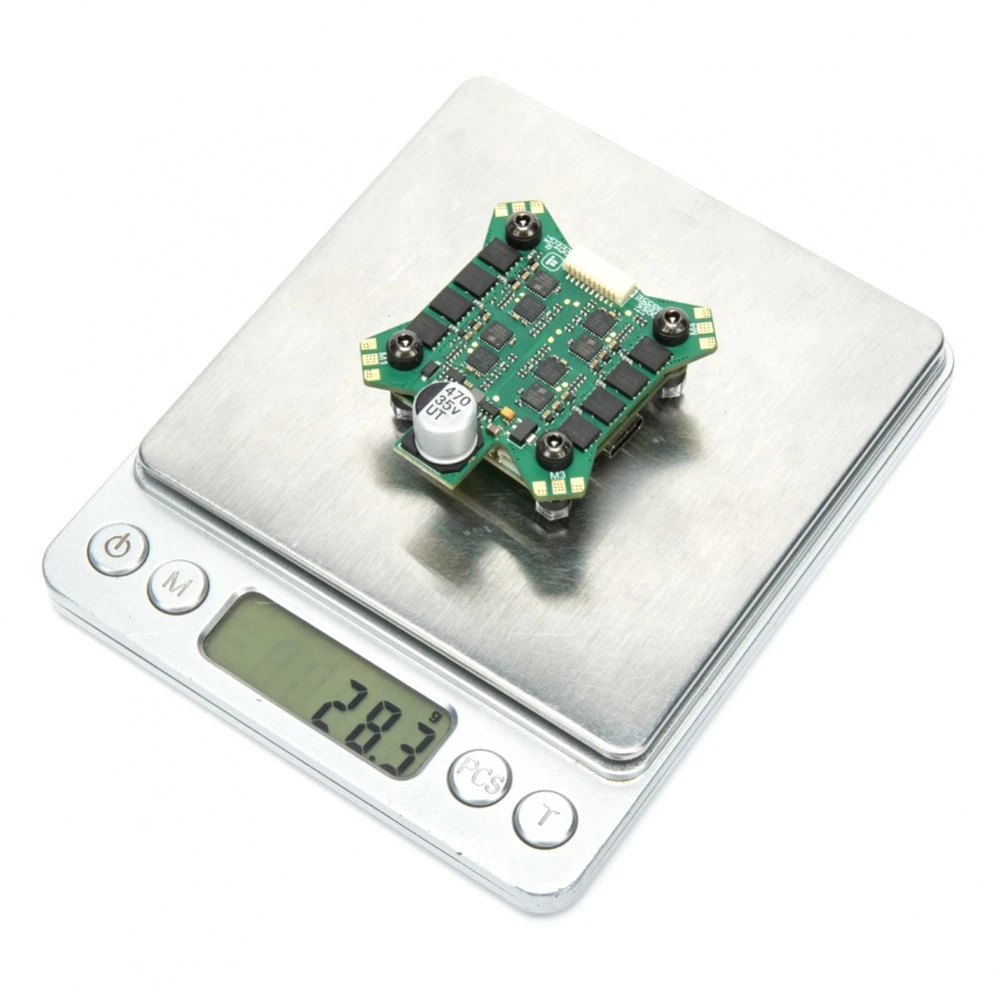

Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4/5 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry
Tips
1. F722 MCU has an inner inverter.
2. SBUS?CRSF?ELRS?IBUS?DSM ETC… can be connected to any unused UART_RX?we suggest you connect to Uart_RX2
3. Frsky SmartPort?Tramp & Smartaudio can be connected to any unused UART_TX?we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX?we suggest you connect to Uart_TX2

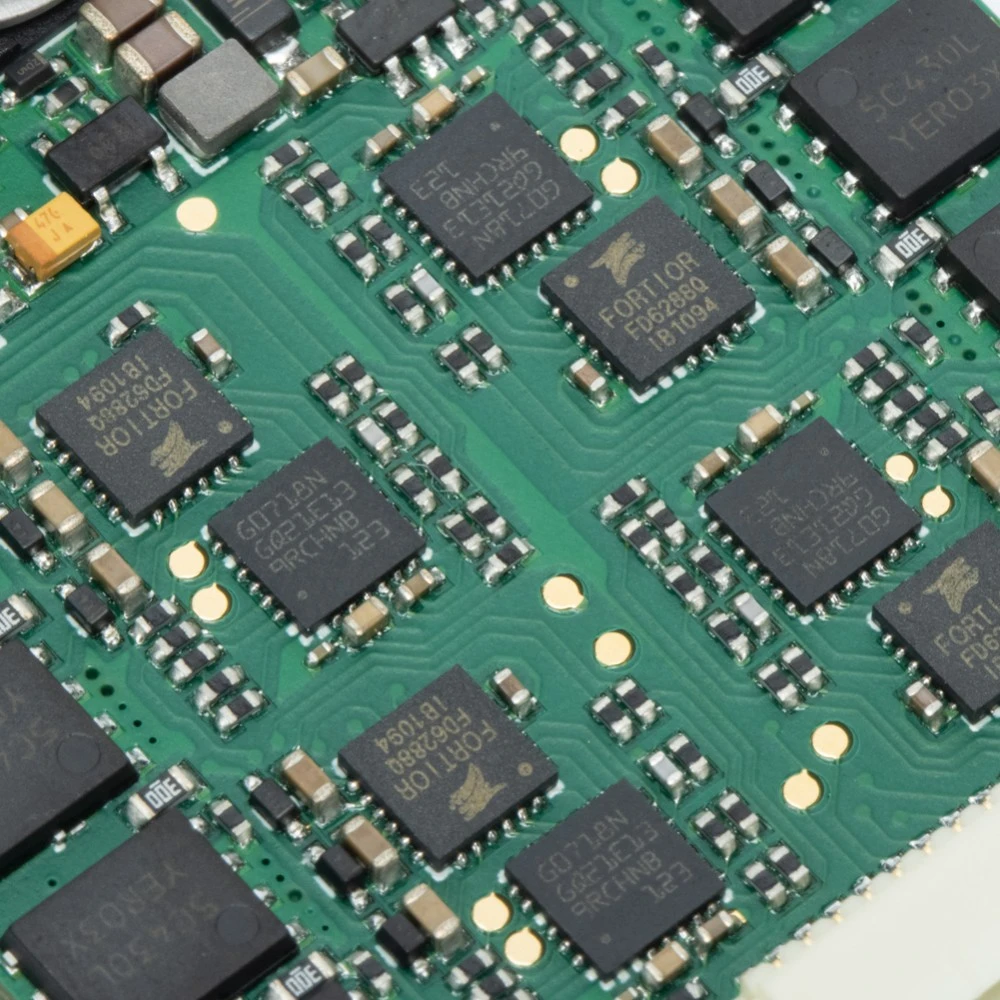

ESC // BLITZ E55 4-IN-1 2-6S 55A ESC

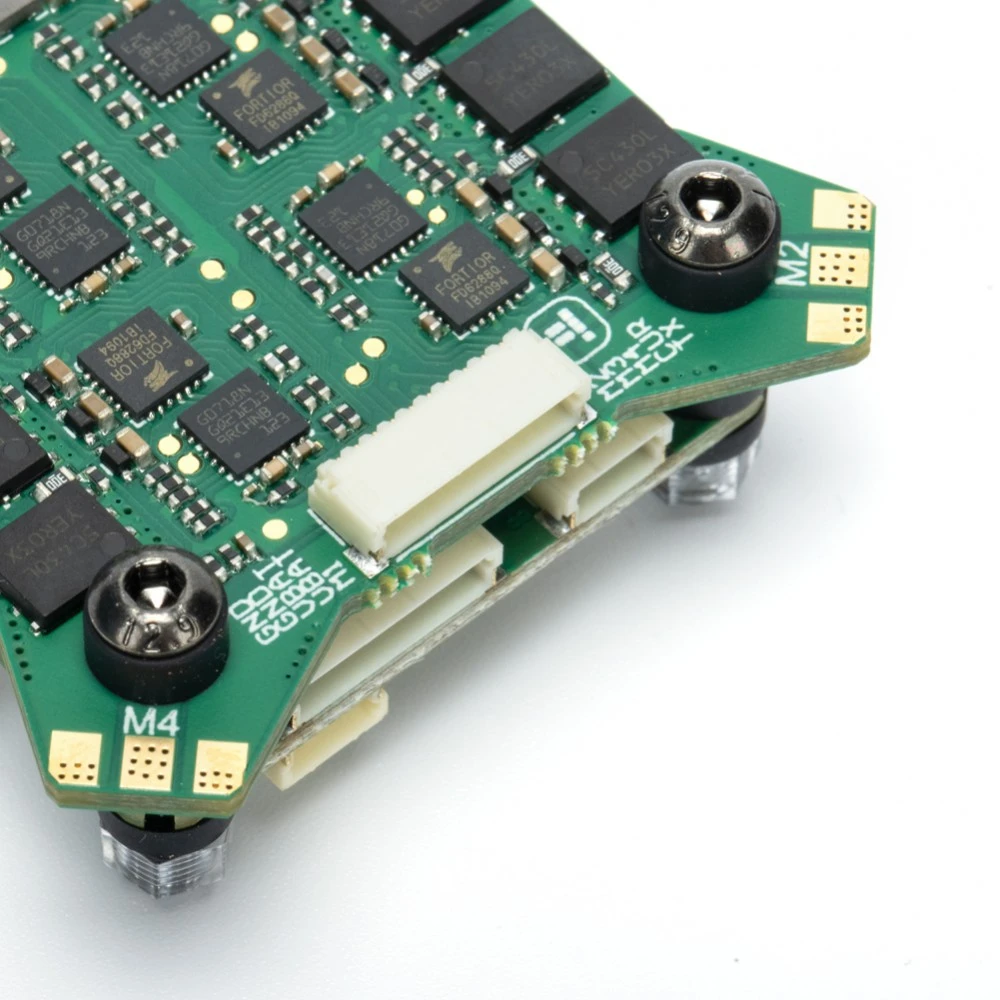

Specification:
– Mounting Holes: 30.5*30.5mm/?4mm
– Weight: 15.3g
– Supports 2-6S lipo input
– MCU?G071
– Constant: 55 Amps
– Burst: 65 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 200
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Target: IFLIGHT_BLITZ_G2
PACKAGE INCLUDED:
– 1PC X BLITZ F7 V1.1 FLIGHT CONTROLLER
– 1PC X BLITZ E55S 4-IN-1 2-6S ESC
– 1SET X SILICON GROMMETS
– 1SET X WIRE HARNESS FOR F7 FLIGHT CONTROLLER
