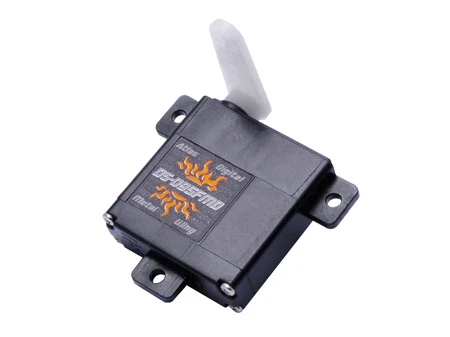

HYPERION ATLAS DS 095 FMD FULLY PROGRAMMABLE DIGITAL WING SERVO

We’re proud of these new digital Wing servos. Their combination of high speed and torque is attractive. But they really set the bar in terms of extremely accurate centering, high-strength low-lash metal drive gears, and resistance to change in trim over a wide temperature range. Double ball bearing keep it all smooth.

In addition, the well-designed mounting tabs allow the use of M3 self-tapping screws to secure the servo to either hardwood blocks, or built-up posts of epoxy-fiberglass. Each box includes one servo, a variety of servo arms, mounting screws, and programming information sheet.

DS095 WING are certified for use with Hyperion LiFePO4 receiver packs.

Weight : 18.0g

Speed sec/60 deg 4.8v/6.0: 0.18/0.15

Dynamic torque Kg/cm 4.8/6.0v: 4.0/4.5

Holding torque Kg/cm 4.8v/6.0v: 8.0/9.0

Dimensions mm: 31.5×9.5×32.7

Gear Train Primary Material: Metal

Bearing: Double ball

Operating Temp: -10 to +60 Degree C

Current Drain (4.8V): 6.0mA / 170mA

Current Drain (6.0V): 6.0mA / 200mA

Stall Current (4.8V): 750mA

Stall Current (6.0V): 900mA

Minimum Input Voltage: 3.5V under load

Maximum Input Voltage: unloaded 7.3V / loaded 6.3V

Connector Wire Gauge: 25AWG

Connector Wire Length: 60mm

Connector Wire Strand Count: 30EA
