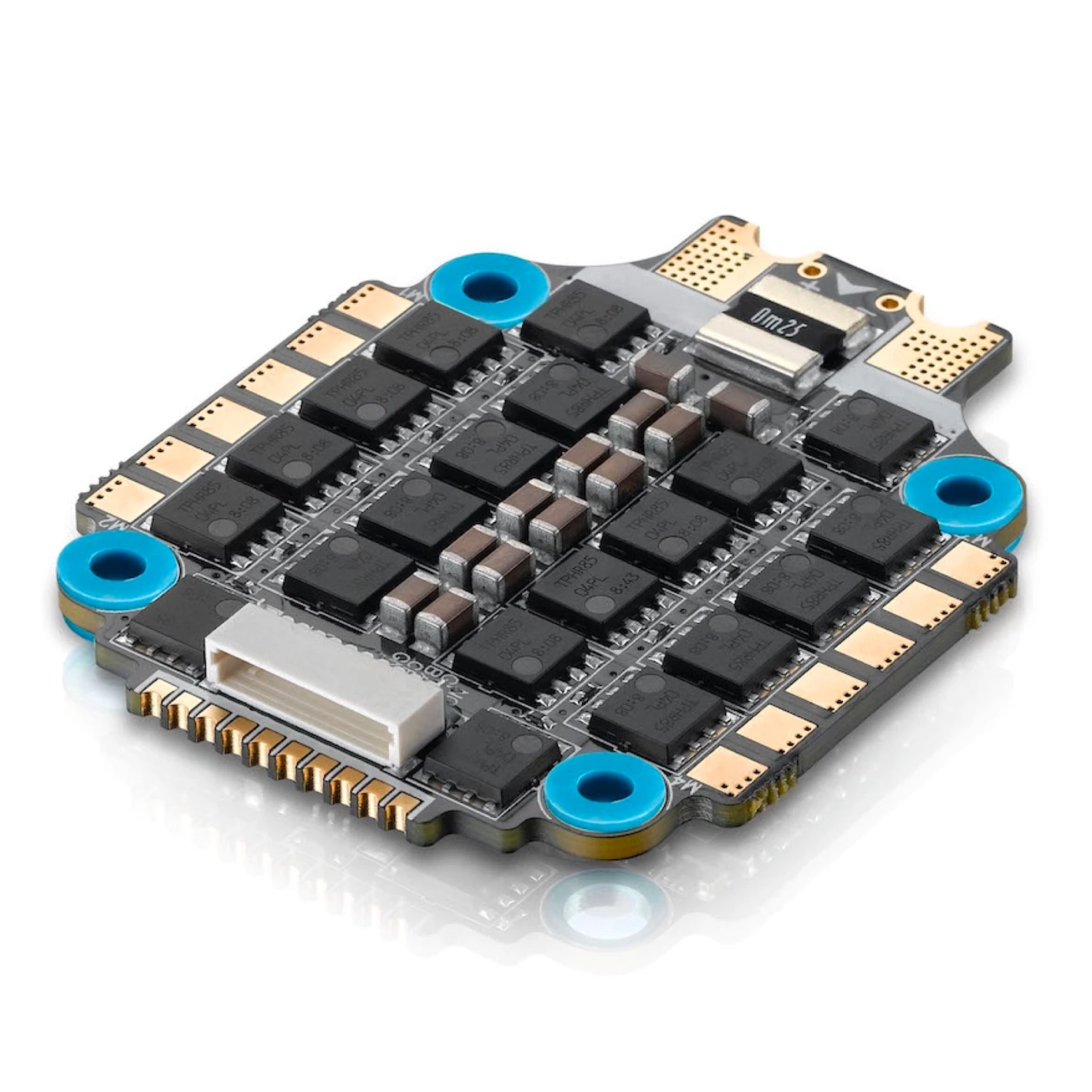

HOBBYWING XRotor Micro 60A 4in1 ESC BLHeli32 Dshot1200 6S For FPV Pilots

Original price was: $84.99.Current price is: $59.49.

SKU: C25OB 14143 Categories: Electronic Speed Controllers, Electronics, Hobbywing

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Still the BEST. FPV Racing 4in1

High-performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance.

BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.

The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).

Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.

The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.

Onboard 5V BEC, powering different accessories such as FC, VTX , Camera, LED lights and etc.

Model: XRotor Micro 60A 4in1 BLHeli32 6S

SKU: 30902063

Application: FPVs with 130-280mm Diagonal Wheelbase
LiPo Power input: 3S-6S

Cont.Current: 60Ax4

Burst Current: 80Ax4

BEC Output: [email protected]

Input wires: 12AWG-130mm* (Red/Black)

Output Wire: No wires but solder tabs

Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no

Weight / Size: 15g / 52x42x6.6mm

Mounting holes: 30.5×30.5mm

Throttle Calibration: Supported

ESC Programming: BLHeliSuite32

DEO: Supported

OneShot Mode: Supported

Timing: Supported

Motor Rotation: Supported

* Note: All the wire length above is the original length, not the length you see from the outside..
