Sale!

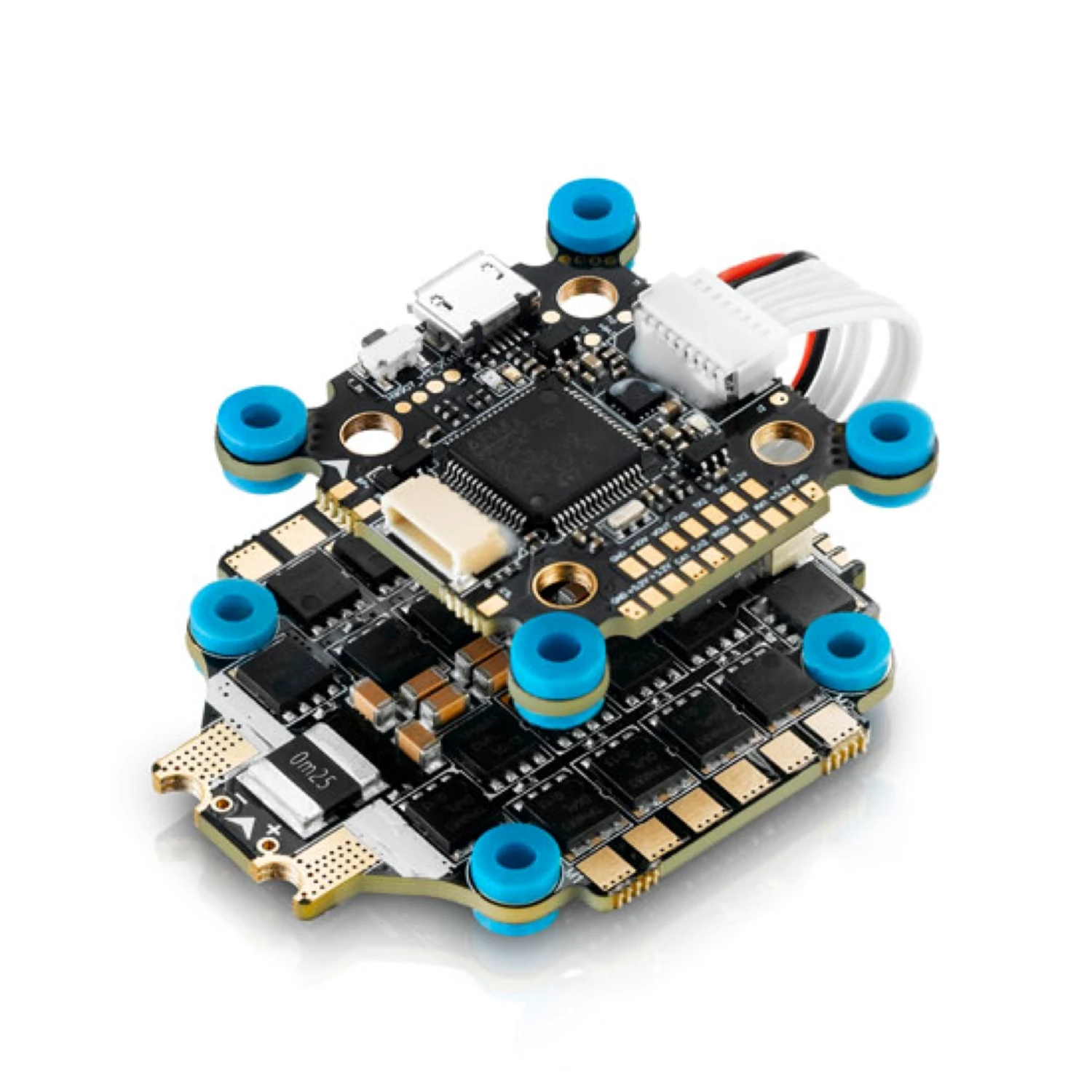

HOBBYWING XRotor FPV Stack (Combo 60A 4in1 ESC & F7 FC)

Original price was: $129.99.Current price is: $90.99.

SKU: C25OB 14145 Categories: 30x30 FC, Flight Controllers, MultiRotors

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

FC // HobbyWing XRotor Flight Controller F7

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.

DJI image transmission system port equipped with corresponding flat cable

Supports bidirectional DShot digital throttle communication.

Unique installation design and shock absorption structure.

On-board large capacity Flash memory chip.

On-board 5V & 12V dual BEC circuit.

On-board Pit Switch module.

ESC // HobbyWing XRotor Micro 60A 4-in-1 ESC

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).

Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.

High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.

Onboard 5V BEC, powering different accessories such as FC, VTX, Camera and LED lights and etc.

BLHeli_32 firmware is the third generation BLHeli.

Specifications:

FC // HobbyWing XRotor Flight Controller F7

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc

Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL

Mounting Holes: Convertible 20x20mm / 30.5×30.5mm

Programming via: Betaflight/Cleanflight-configurator

Firmware: HOBBYWING_XROTORF7CONV

Voltage Monitoring: Supported

Current Monitoring: Supported
FC Programming: Supported

External Buzzer: Supported

BEC: [email protected]: [email protected]

LED Control: Supported

USB Port: MicroUSB

Size: 32x32mm

OSD: Built-in

Weight: 3.3g

ESC // HobbyWing XRotor Micro 60A 4-in-1 ESC

Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no

Input wires: 12AWG-130mm* (Red/Black)

Output Wire: No wires but solder tabs

Weight / Size: 15.0g / 52x42x6.6mm

ESC Programming: BLHeliSuite32

Throttle Calibration: Supported

Mounting holes: 30.5×30.5mm

LiPo Power input: 3S-6S

BEC Output: 5V@ 0.6A

Burst Current: 80Ax4

Cont.Current: 60Ax4

Includes

1x Hobbywing XRotor F7 FC

1x Hobbywing XRotor 60A 32Bit ESC

1x Hardware Set

1x AMASS XT60 Connector

1x Cable Set
