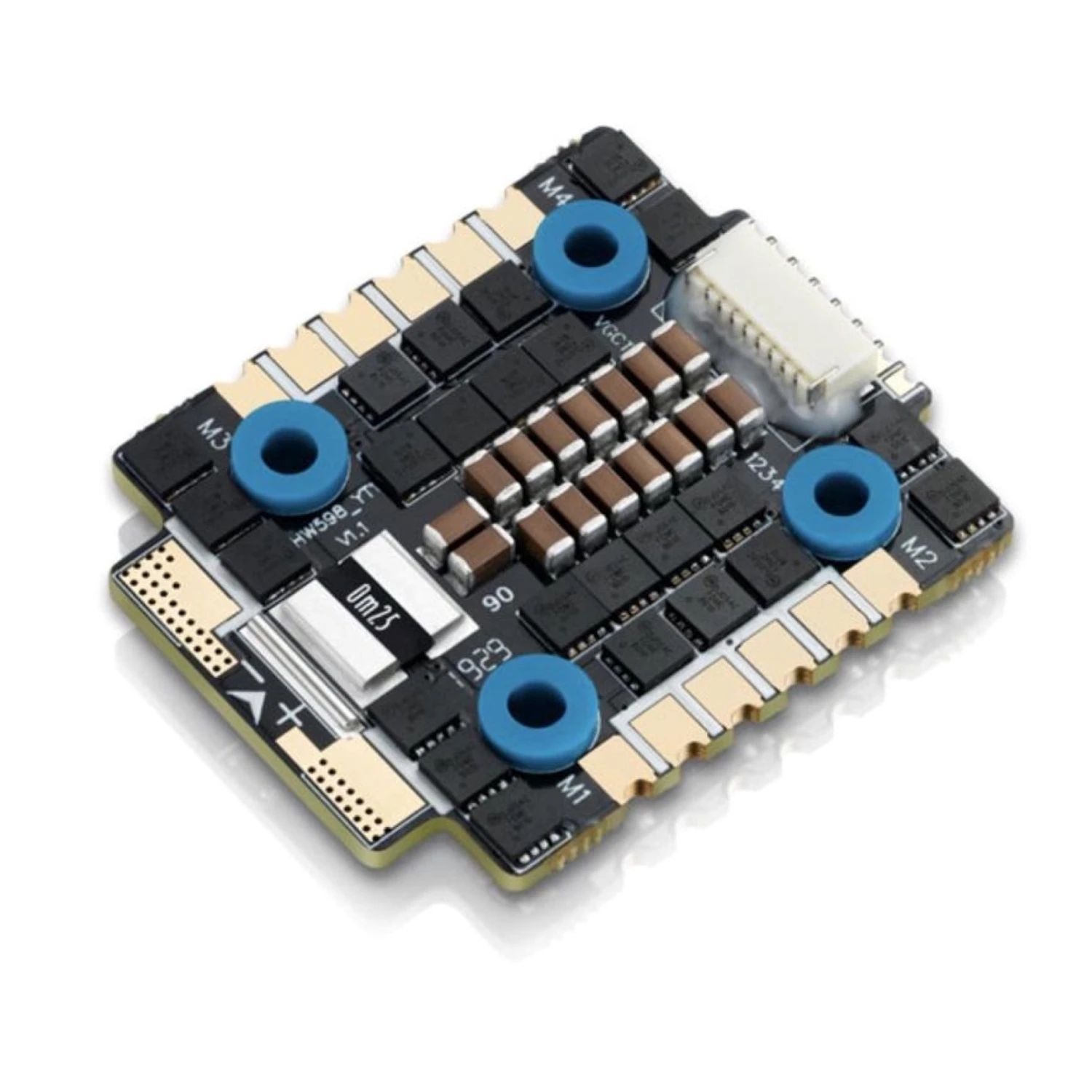

HOBBYWING XRotor 40A 4in1 (20×20) BLHeli-32 DShot1200 For FPV Pilots

Original price was: $74.99.Current price is: $52.49.

SKU: C25OB 14142 Categories: Electronic Speed Controllers, Electronics, Hobbywing

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Highly Integrated yet Compact

High performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance.

BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environment

The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).

Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.

The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.

Model: XRotor 40A 4in1 (20×20) BLHeli-32 DShot1200

SKU: 30902045

Application: FPVs with 130-280mm Diagonal Wheelbase

LiPo Power input: 3S-6S

Cont.Current: 40Ax4

Burst Current: 60Ax4

BEC Output: NO

Input wires: Red-14AWG-100mm/ Black-14AWG-100mm

Output Wire: No wires but solder tabs

Connectors: (In/Out) XT60 plug enclosed with package.

Weight / Size: 12g / 40x33x5mm

Firmware: Hobbywing_XRotor_BLHeli-32 Version

Throttle Calibration: Supported

ESC Programming: Stick Programming, BLHeliSuite32

DEO: Supported

OneShot Mode: Supported

Timing: Supported

Motor Rotation: Supported

Warranty note
HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation – deems products non-warranty

Discount /auction stores such as eBay, etc are considered “non-authorized stores” in North America. Products deem non-warranty

Download
Manual Download
