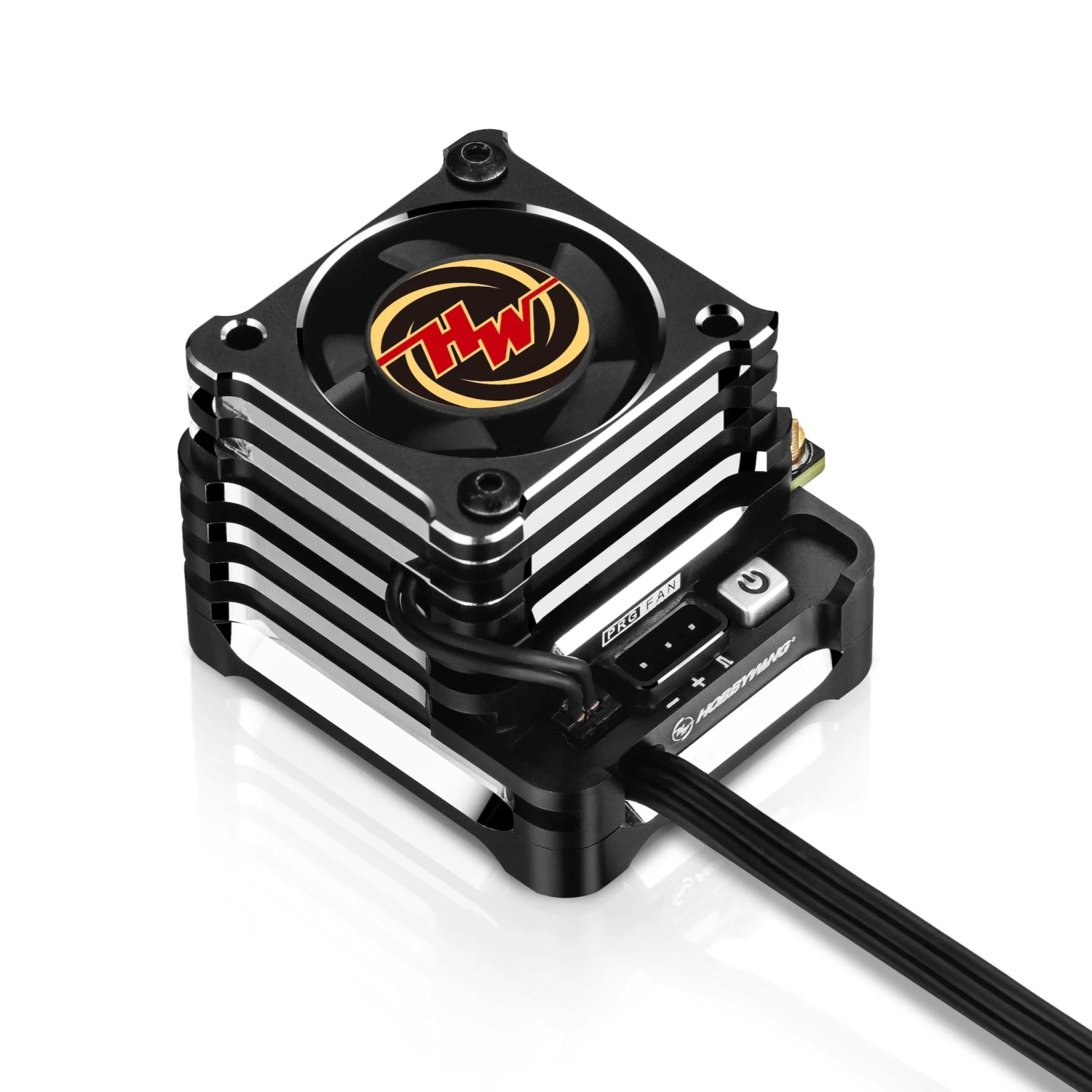

HOBBYWING Xerun XD10 Pro ESC – Drift Racing

What comes in the box?

All editions come with

XD10 PRO ESC

(2) Input wires & (3) Output wires (PRE-SOLDERED)

(1) x cooling fan

Decals

Bonus parts: heat tubes, double tape, nylon cable zap traps

Why you want this:

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.

A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.

Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).

Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).

Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.

Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

Download
Xerun XD10 PRO ESC user manual

Specifications

ID: Xerun XD10 PRO ESC – DRIFT

p/n: 30112614 (Stealth)

Application: 1/10th drift car

Cont./Peak Current: 100A/800A

Input Voltage: 2S LiPo/4-6S NiMH

BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)

Wires & Connectors: Standard: 13AWG 200mm

Programming device: LCD program box

OTA programmer: (Available through Firmware update)

Firmware: LCD Program box via USB software (PC only)

OTA: (iOS / Android)

Size & Weight 40.7×35.0x32.0mm (w/Fan)

Weight 95g (w/ wires)

Motor Limit*

Brushless Motor Limit with 2S LiPo/6S NiMH:

KV Rating/T Count ?8.5T
