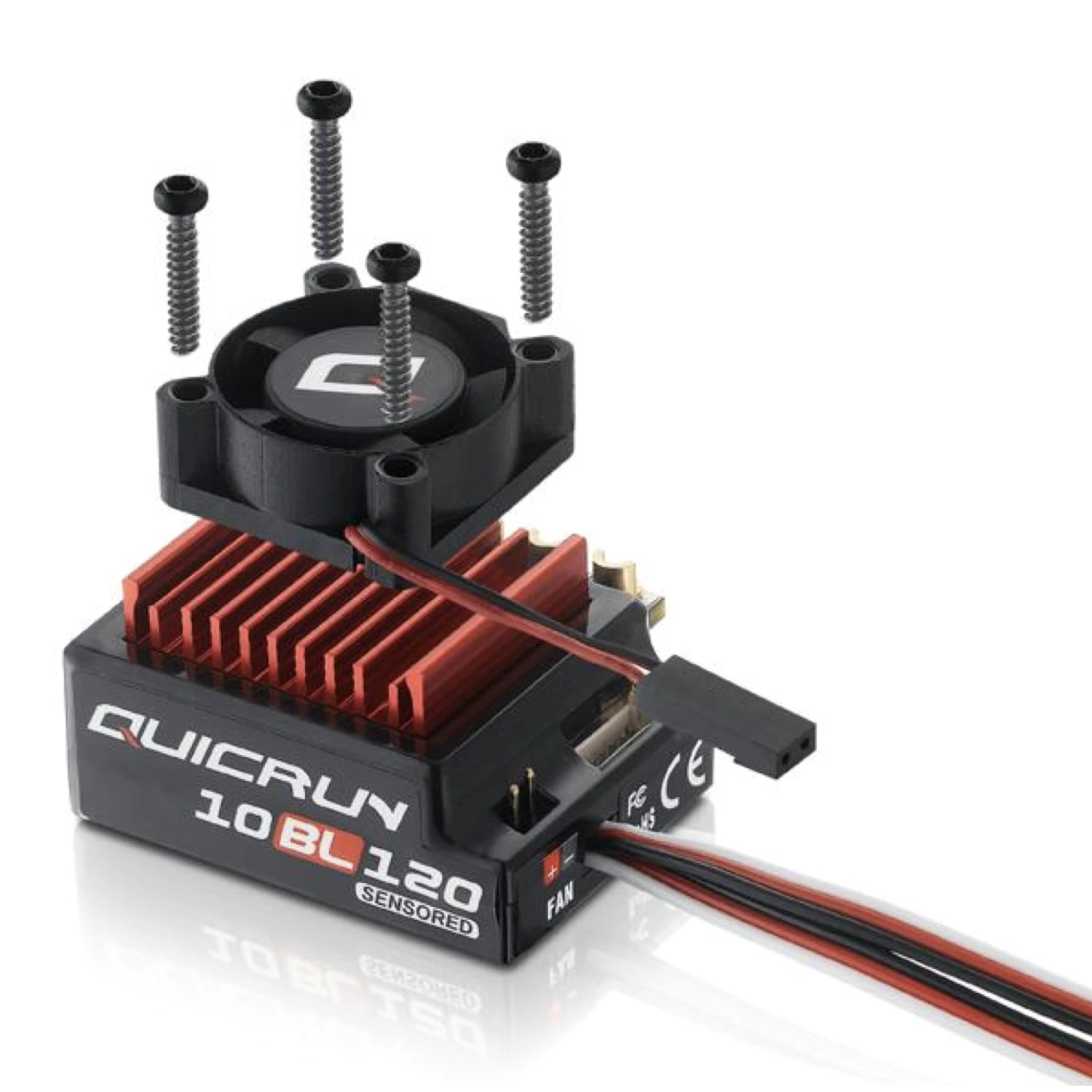

HOBBYWING QUICRUN 10BL120 ESC (1/10th Scale 120A Sensored Brushless ESC)

High performance, reliable, race-ready ESC. The compact size is suitable for various car chassis’. The built-in auto identification system recognizes sensored or sensorless brushless motors. Core competition program for excellent control feel & multiple programmable items.

8 steps of timing adjustments

4 steps of maximum brake force adjustments

8 steps of drag brake force adjustments

4 steps of initial brake force adjustments

9 steps of acceleration (punch) adjustment, from “”soft”” to “”very aggressive”” to fit for different kinds of cars, tires and tracks.

Multiple protections include:

Low voltage cut-off protection for Lipo or NiMH battery

Over-heat protection

Throttle signal loss protection

Motor Lock-up protection.

One-button to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with optional device – the portable Digital LED Program Card which is especially convenient for outdoor use.

Motor Limits:

4-6 cells NiMH / 2S LiPo: 3.5T (1/10 On-road), 4.5T (1/10 Off-road)

8-9 cells NiMH / 3S LiPo: 8.5T (1/10 On-road), 10.5T (1/10 Off-road)

Specifications:

Continued / Peak Current 120A / 760A

For 1/10th Touring Car/Buggy/F1/Drift Car

Battery 4-9 cells NiMH, 2-3S LiPo

BEC Output 6V@3A, Linear Mode

Cooling Fan Powered by the battery

Dimensions / Weight 43 x 36 x 33mm (w/ Fan) / 105g (w/ Wires & Fan)
