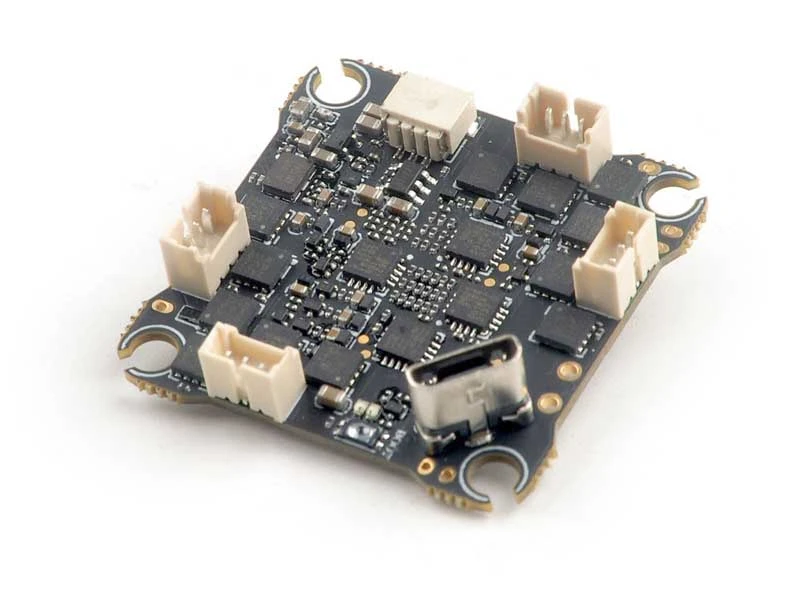

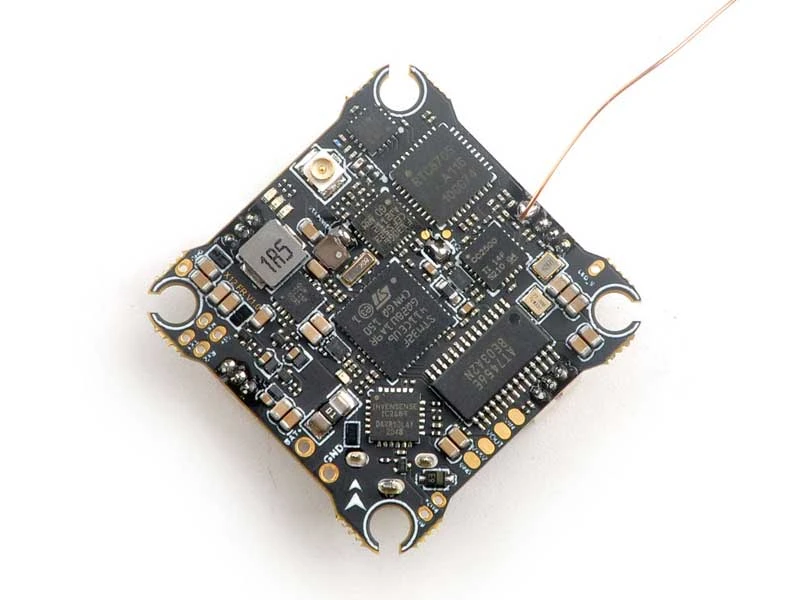

5-in-1 AIO flight controller using OpenVTX (up to 400mW), 12A ESC (BLHeli_S ESC), onboard ELRS receiver (2.0 firmware), plugin connector for your motors and can take 1S or 2S batteries.
Notes: This is the V2 version capable of taking up to 2S.
Specifications:
FC:
Betaflight firmware target: CRAZYBEEF4SX1280
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM42688P
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A (each) Blheli_S 4in1 ESC
Built-in Betaflight OSD (SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,
Built-in voltage meter sensor: voltage meter scale 110
Built-in current meter sensor: current meter scale 470
Weight: 5.1g
4in1 ESC:
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Supports BLHeliSuite
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Supports Bluejay firmware
When using Bluejay firmware with 48khz, set startup power to 1100/1200
Receiver:
Packet rate options: 50Hz/150Hz/250Hz/500Hz
ExpressLRS firmware version: V2.0
RF frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: 12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Modules
Can’t flash ExpressLRS firmware separately
OpenVTX:
Firmware version: OPENVTX
Smartaudio v2.1
PIT mode supported
RACE mode supported
Channels: 48ch
Transmitting Power: 0/RACE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): 650ma (400mw)
Antenna connector: U.FL

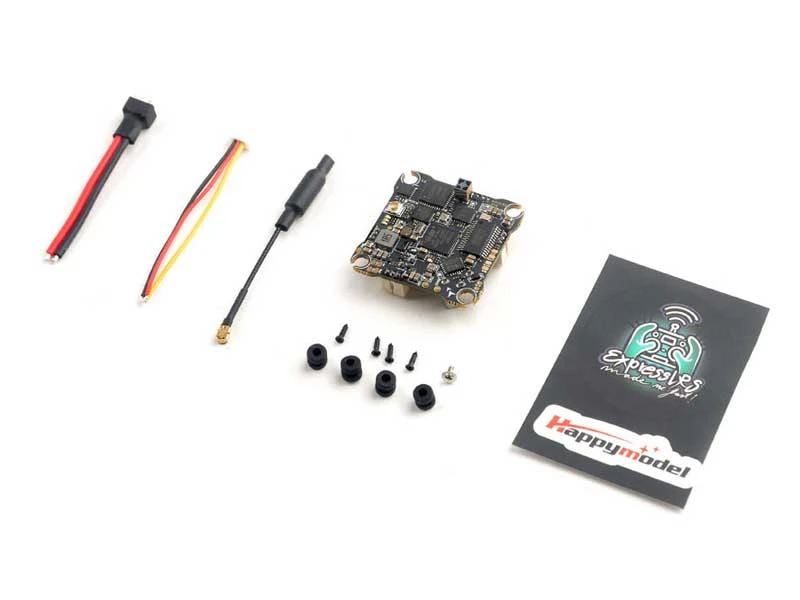

Package:
1x X12 AIO Board
1x Dipole UFL Antenna
1x Camera cable
1x PH2.0 Pigtail
1x set of screws and grommets
Wiring diagram here
