Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY - Image 2

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY - Image 3

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY - Image 4

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY - Image 5

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY - Image 6

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY - Image 7

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY -Airplanes Store mobula6hd6

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY -Airplanes Store mobula6hd5

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY -Airplanes Store mobula6hd4

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY -Airplanes Store mobula6hd3

Happymodel Mobula6 HD 1S Brushless Whoop BNF FRSKY

Original price was: $144.99.Current price is: $96.99.

SKU: C25OB 12066 Categories: - Tiny Whoop / CineWhoop Quads, MultiRotors, TINY WHOOP / CINE WHOOP

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features:

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

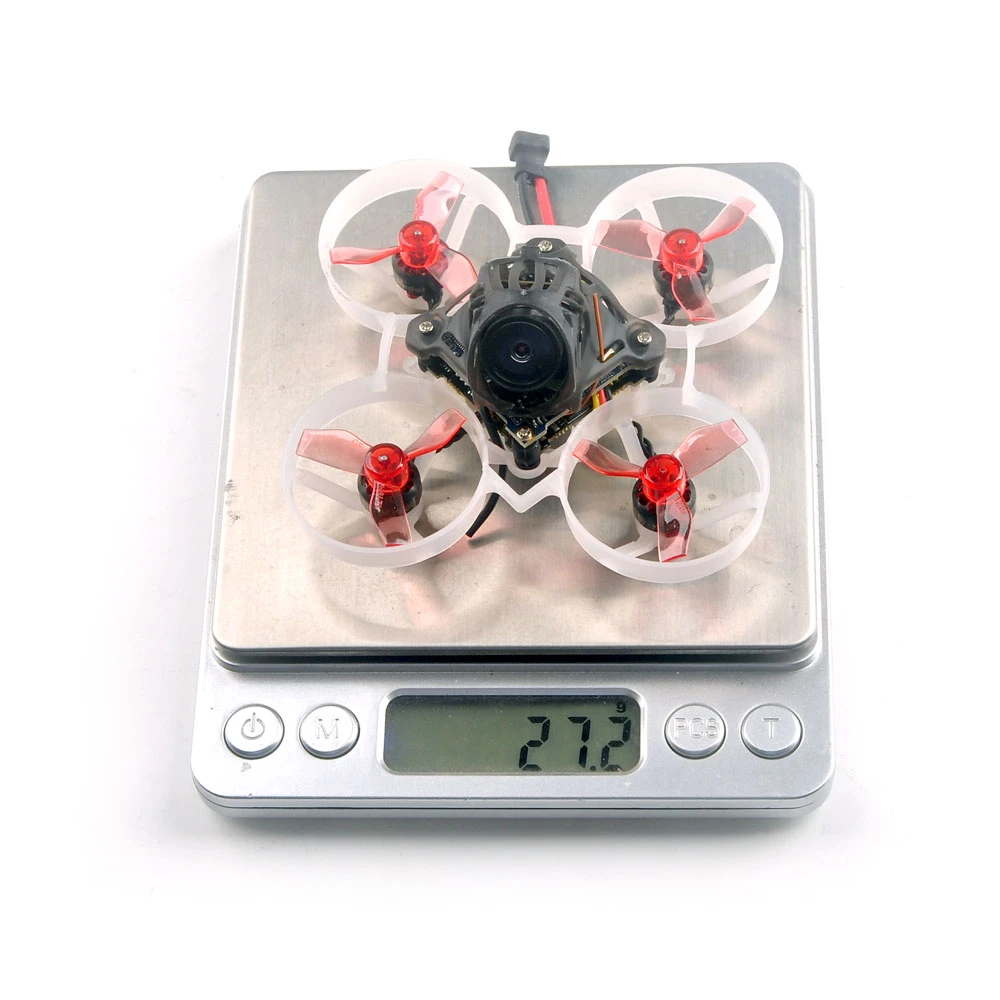

Extreme light 1S 65mm Brushless HD whoop only 27g

Come with Runcam Split3-lite 1080P HD DVR

Smooth and agile

Compatible for 1S Lipo/LIHV

Camera Angle adjustable

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 HD 1S 65mm Brushless whoop HD drone BNF version

Wheelbase: 65mm

Size: 80mm*80mm*40mm

Weight: 27g

Receiver:Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

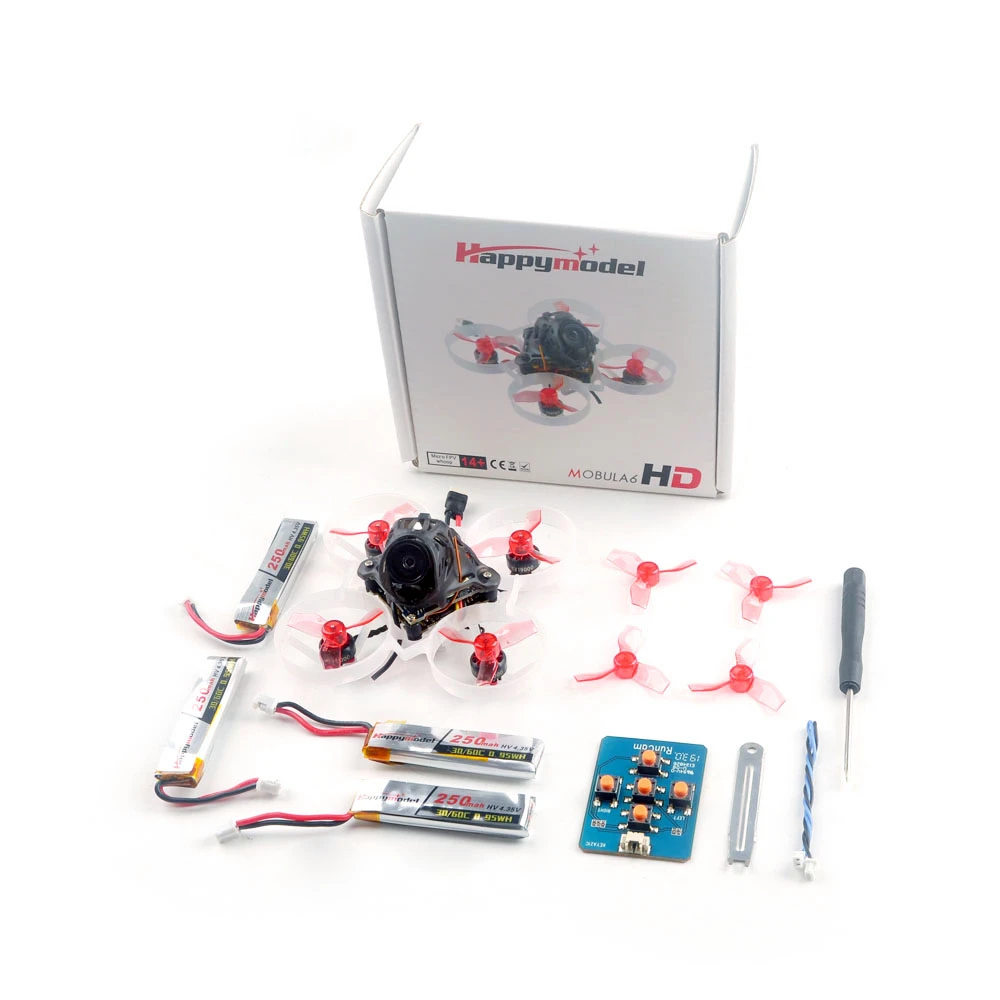

Package includes:

Mobula6 1S 65mm whoop Drone Frame x1

SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX x1

EX0802 KV19000 brushless motor 4

Gemfan 1219-3 Propellers(4cw+4ccw) x1

Runcam Split3-lite 1080P HD Camera +DVR x1

5.8G 25mw 40ch vtx (Flight controller built-in) x1

1S 250mah 30C LiHV Battery x4

1S Lipo/LIHV USB Charger x1

Propeller disassemble tool x1

Spare parts specifications:

Motor

Mode: EX0802 19000KV

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:?1mm

Motor Dimension(Dia.*Len):?10.5mm*14.9mm

Weight(g):1.7g

No.of Cells(Lipo):1S only

Propellers

Gemfan 1219-3

Center Thickness:5mm

Prop Disk Diameter:31mm

Center Hole Inner diameter:1.0mm

Weight:0.28g

Flight controller

(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 modelChannels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8g VTX

Output power: 25mw

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels

With Race bandSmartaudio ready

Runcam Split3-Lite

Model: RunCam Split3-Lite

Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)

Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps

Video File Format: MOV

Image Resolution:2 MP

TV Mode: NTSC (720*480)/PAL (720*576) Switchable

Interface: JST 1.25mm / UART and SH 1.0mm

Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)

Hole Distance of Installation: 25.5*25.5mm

PCB Size: 29*29mm

Lens Module Size: 14*14mm

Lens Specs: M9

Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)

Working Current: 450mA @5V

Lipo Battery

Capacity:250mAh

Voltage:3.8v

Continuous Discharge Rate: 30C

Size: 55mmx12mmx7mm

Weight: 6.5gConnector: PH2.0
