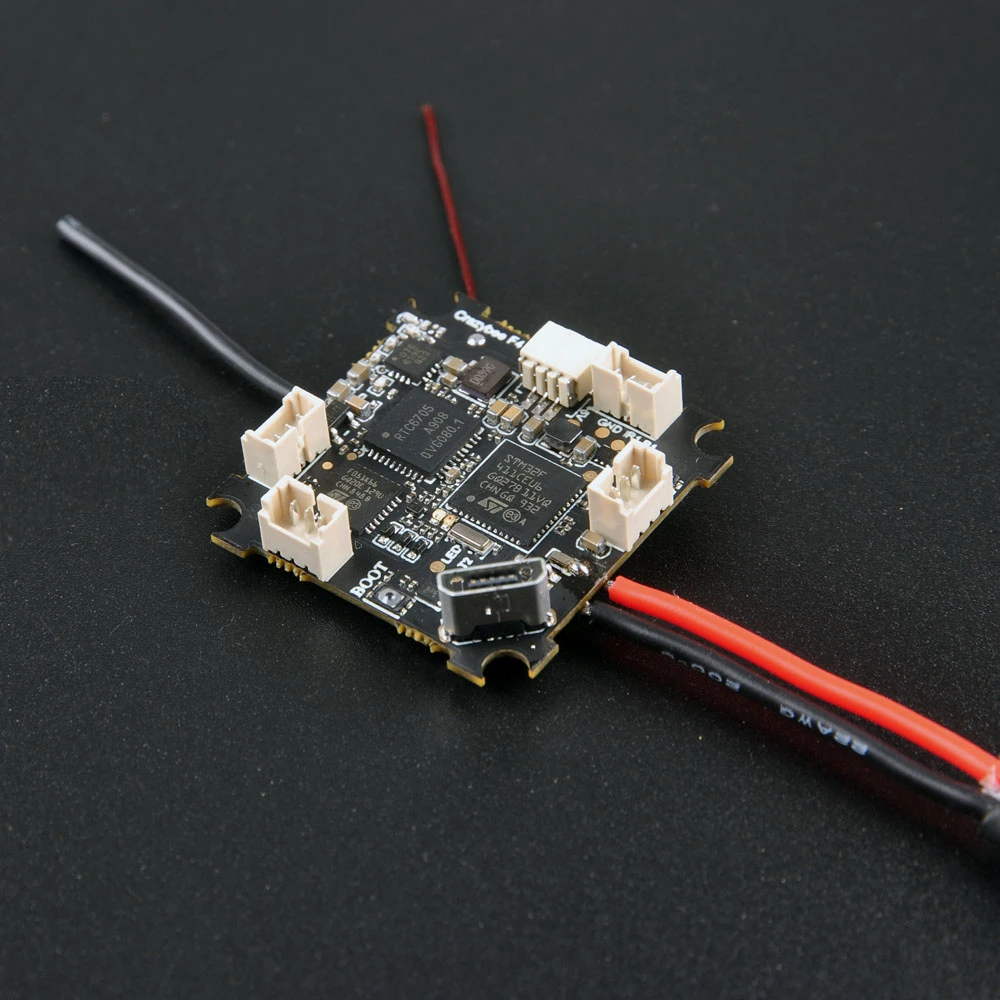

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 2
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 3
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 4
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 5
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 7
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 8
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 9
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store 2 1Mobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store 4 1Mobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store 10Mobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store 7 1Mobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store 1 1Mobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store 3 1Mobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store Bottom view newMobula6
Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store Top viewMobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller

Original price was: $59.99.Current price is: $41.99.

Buy Now
SKU: C25OB 11549 Categories: , ,
  • Streamlined service, designed for your convenience.
  • Safe Payments, the Smart Choice
  • 7 days free returns
  • Safe Payments for a Better Shopping Experience

SPECS:


Flight controller

  • (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Board size: 28.5 * 28.5MM
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky receiver
  • Built-in 5V 1A BEC
  • Built-in voltage detection


    Onboard 4in1 ESC

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HV
  • Current: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_7.HEX
  • Default protocol: DSHOT600


    Onboard Frsky SPI D8 receiver Version

  • SPI BUS receiver Frsky D8 compatible
  • Compatible Non EU transmitter D8 model
  • Channels: 8ch
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
  • Failsafe support


    Onboard 5.8g VTX

  • Output power: 25mw
  • Frequency: 40CH
  • Input voltage: 3.3V 5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 5bands 40 channels
  • With Race band
  • Smartaudio ready

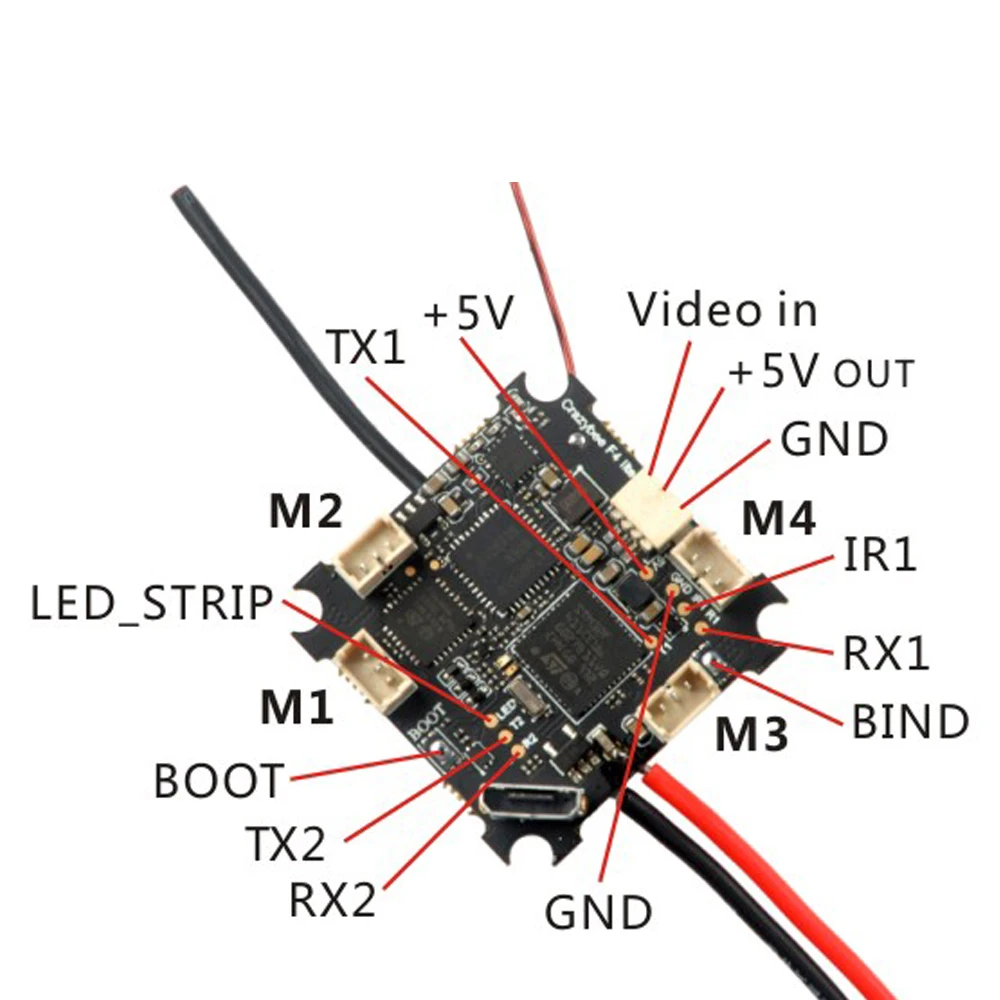

    Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store Bottom view newMobula6

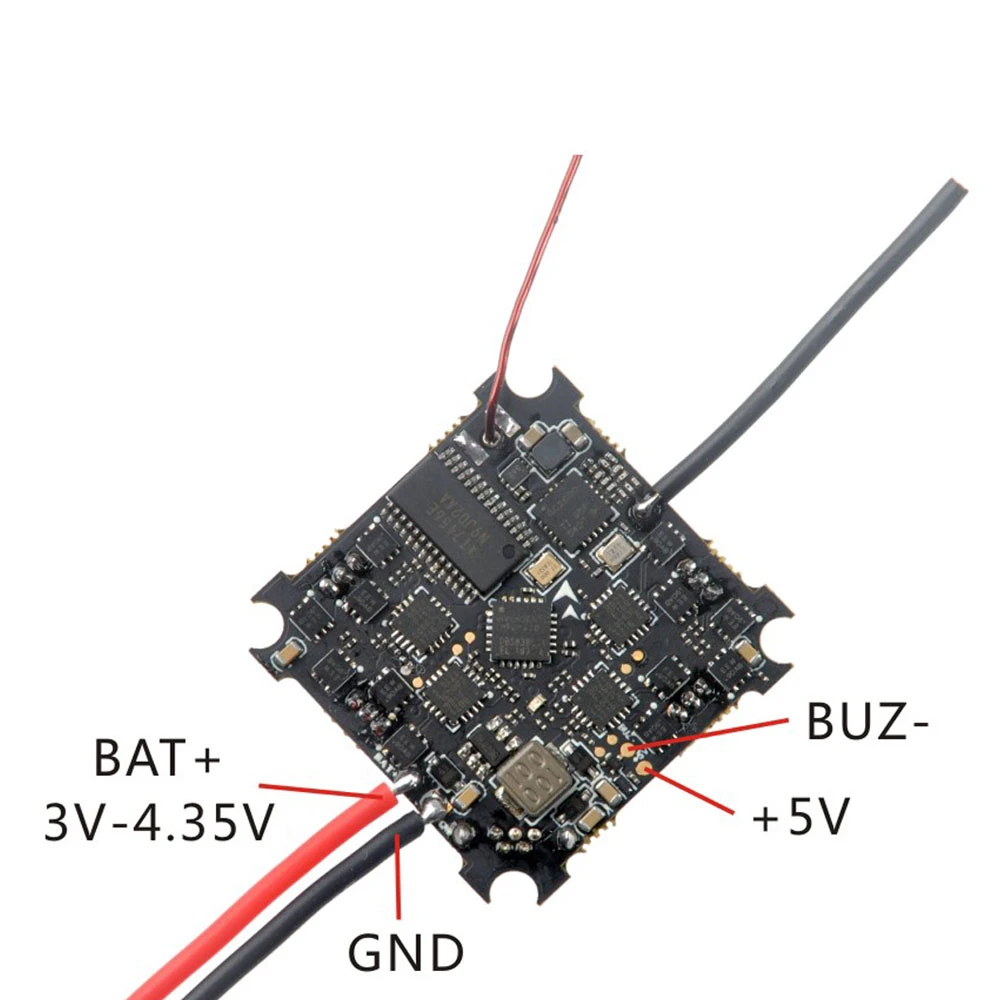

    Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Airplanes Store Top viewMobula6
