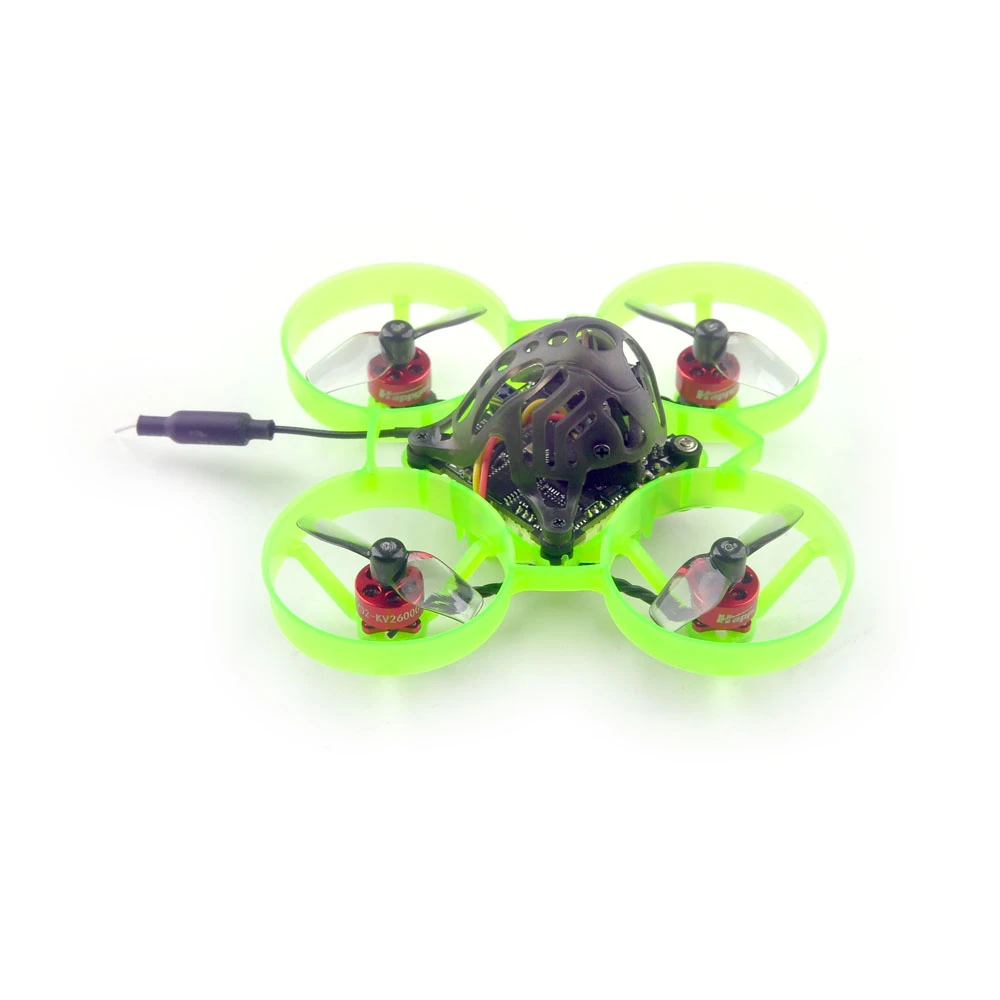

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition - ELRS

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition - ELRS - Image 2

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition - ELRS - Image 3

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition - ELRS - Image 4

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition - ELRS -Airplanes Store Mobula6EL4 1

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition – ELRS

Original price was: $103.84.Current price is: $72.69.

SKU: C25OB 14564 Categories: - Tiny Whoop / CineWhoop Quads, MultiRotors, TINY WHOOP / CINE WHOOP

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features:

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

Extreme light 1S 65mm Brushless whoop only 20g

Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

Smooth and powerful

Compatible for 1S Lipo/LIHV

Camera Angle adjustable

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version

Wheelbase: 65mm

Size: 80mm*80mm*37mm

Weight: 20g

Receiver option:

Internal SPI ELRS

Motor speed : SE0802 KV19000(Regular Edition)

Package includes:

1x Mobula6 1S 65mm whoop Drone Frame

1x SPI Receiver: Crazybee F4 Lite FC built-in Frsky SPI D8 RX

4x SE0802 KV19000 brushless motor

1x Gemfan 1219-3 Propellers(4cw+4ccw)

1x Runcam Nano3 1/3 CMOS 800TVL camera

1x 5.8G 25mw 40ch vtx (Flight controller built-in)

4x 1S 300mah 30C LiHV Battery

1x 1S Lipo/LIHV USB Charger

1x Propeller disassemble tool

Spare parts specifications:

Motor: SE0802 19000KV

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:?1mm

Motor Dimension(Dia.*Len):?10.5mm*14.9mm

Weight(g):1.9g

No.of Cells(Lipo):1S only

Propellers Gemfan 1219-3

Center Thickness:5mm

Prop Disk Diameter:31mm

Center Hole Inner diameter:1.0mm

Weight:0.28g

Flight controller

ELRS F4 2G4 flight controller V3.1 built-in SPI expresslrs 2.4G receiver

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in Built-in ExpressLRS 2.4G Receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

RF Frequency: 2.4GHzAntenna : SMD antenna

Telemetry output Power: 12dBmReceiver protocol: SPI ExpressLRS

Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard 5.8g VTX

Output power: 25mw

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels

With Race bandSmartaudio ready

Runcam Nano3

Model: RunCam Nano 3

Image Sensor: 1/3? CMOS

Horizontal Resolution: 800TVL

Lens : 2.1mm(M8) FOV 160ï¿½

Signal System: NTSC

S/N Ratio: >50dBElectronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: [email protected]

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 110mA@5V [email protected]

Housing Material: ABS

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm

Lipo Battery

Capacity:300mAh

Voltage:3.8v

Continuous Discharge Rate: 30C

Size: 57mmx12mmx7mm

Weight: 8gConnector: PH2.0
