Happymodel Moblite6 Ultralight 1S 65mm Brushless Whoop – BNF SPI Frsky

Original price was: $101.99.Current price is: $71.39.

Buy Now
SKU: C25OB 12794 Categories: , ,
  • Streamlined service, designed for your convenience.
  • Safe Payments, the Smart Choice
  • 7 days free returns
  • Safe Payments for a Better Shopping Experience

The Moblite6 features the RunCam Nano3, Onboard SPI Frsky D8 Receiver, DiamondF4 FR FC, 5A BLheli_S 4-in-1 ESC, 5.8GHz VTX, and more!


Features

  • The lightest 1s 65mm brushless whoop
  • Powerful and efficiency
  • The lightest 1s AIO 5IN1 F4 flight controller
  • New Unibell EX0802 brushless motors
  • VTX power switchable 25mw~200mw
  • Low profile Canopy design


    Specifications

  • Brand Name: Happymodel
  • Item Name: Moblite6 1S 65mm ultra-light brushless whoop
  • Wheelbase: 65mm
  • Size: 80mm*80mm*25mm

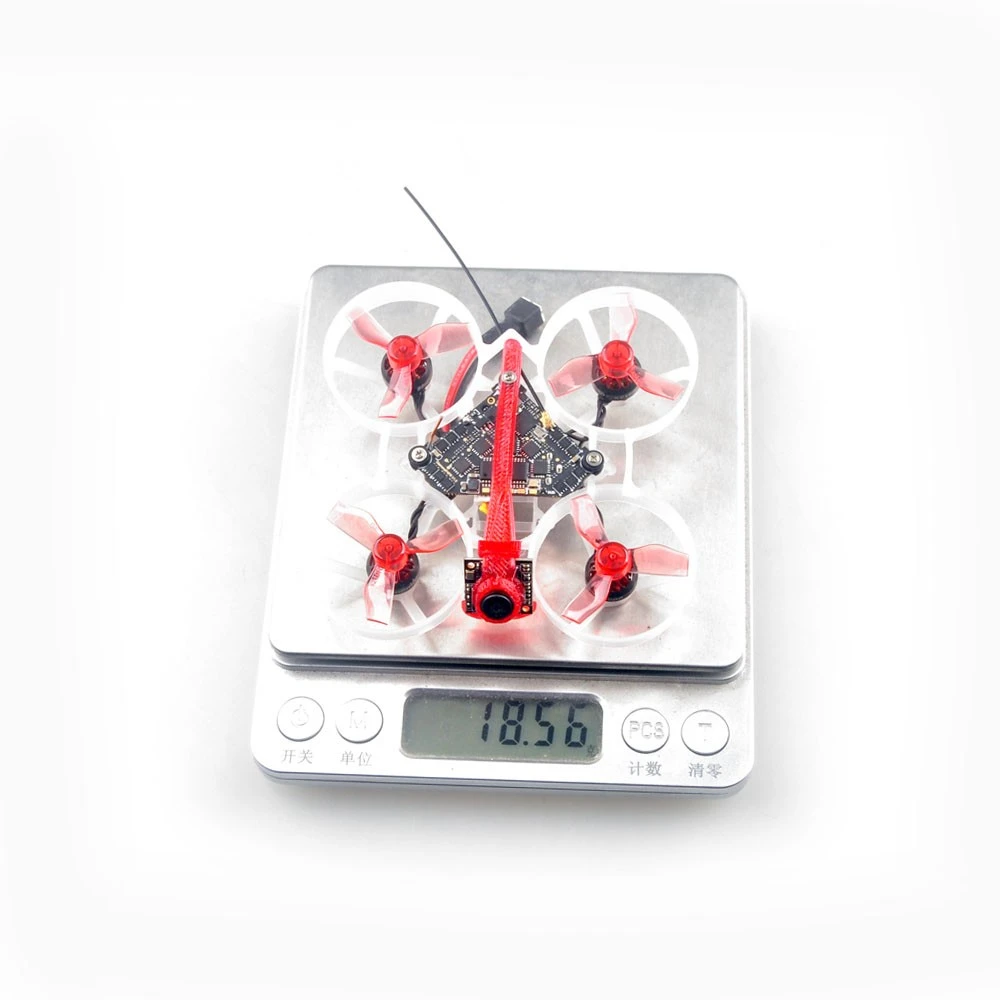

  • Weight: 18.5g (without battery)
  • Weight:26g(with Original 1s 300mah Lipo battery )


    Motor

  • Mode: EX0802 19000KV
  • Configu-ration:9N12P
  • Stator Diamter:8mm
  • Stator Length:2mm
  • Shaft Diameter:?1mm
  • Motor Dimension(Dia.*Len):?10.5mm*14.9mm
  • Weight(g):1.7g
  • No.of Cells(Lipo):1S only


    Flight Controller

  • (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4F
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Original whoop size compatible
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky/Flysky receiver
  • Built-in 5V 1A BEC


    Onboard 4-in-1 ESC

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HV
  • Current: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_50_REV16_8.HEX
  • Default protocol: DSHOT600


    Onboard Frsky SPI D8 Receiver Version

  • SPI BUS receiver Frsky D8 compatible
  • Compatible Non-EU transmitter D8 model
  • Channels: 8ch
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m


    Onboard 5.8GHz VTX

  • Output power: 25mw~200mw switchable
  • Frequency: 40CH
  • Input voltage: 3.3V 5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 5bands 40 channels(include Race band)
  • Smart audio ready


    Runcam Nano3

  • Model: RunCam Nano 3
  • Image Sensor: 1/3? CMOS
  • Horizontal Resolution: 800TVL
  • Lens : 2.3mm(M6.5) FOV 140°
  • Signal System: PAL/NTSC Non Switchable
  • S/N Ratio: >50dB
  • Electronic Shutter Speed: Auto
  • Auto Gain Control (AGC): Auto
  • Min. Illumination: [email protected]
  • D-WDR: Auto
  • Day/Night: Color
  • Power:DC 3-5.5V
  • Current: 110mA@5V [email protected]
  • Housing Material: ABS
  • Net Weight: 1.2g
  • Dimensions: L14mm*W14mm*H9mm


    Lipo Battery

  • Capacity:300mAh
  • Voltage:3.8v
  • Continuous Discharge Rate: 30C
  • Size: 57mmx12mmx7mm
  • Weight: 7.5g
  • Connector: PH2.0

    Includes

  • 1 x 65mm Frame (Mobula6 frame)
  • 1 x Option1: DiamondF4 FR built-in SPI Frsky receiver
  • 4 x EX0802 KV19000 Unibell brushless motor
  • 1 x Gemfan 1219 31mm propeller(4cw+4ccw)
  • 1 x Runcam Nano4 Lite
  • 1 x Built-in 5.8G 40ch 25mw-200mw VTX
  • 2 x 1s 300mah Lipo battery
  • 1 x 1S USB charger
  • 1 x Propeller disassemble tool
  • 1 x Screwdriver

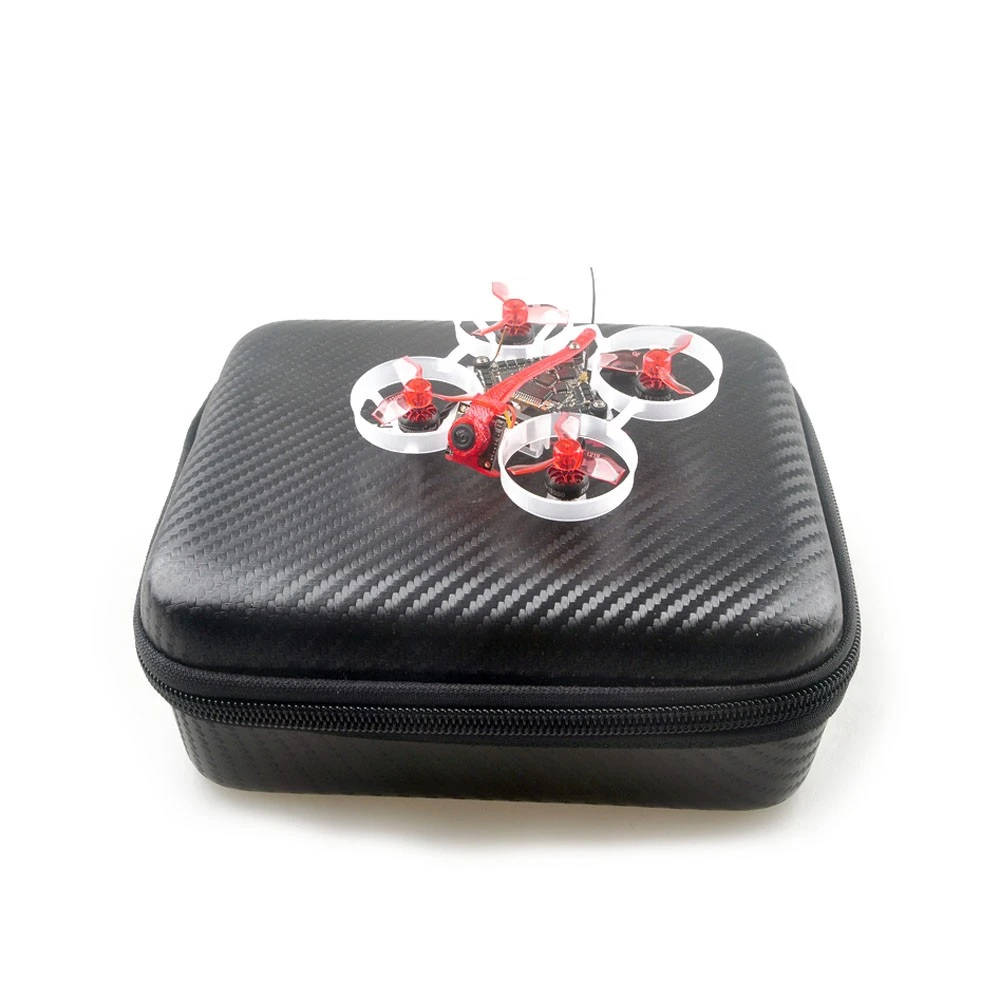

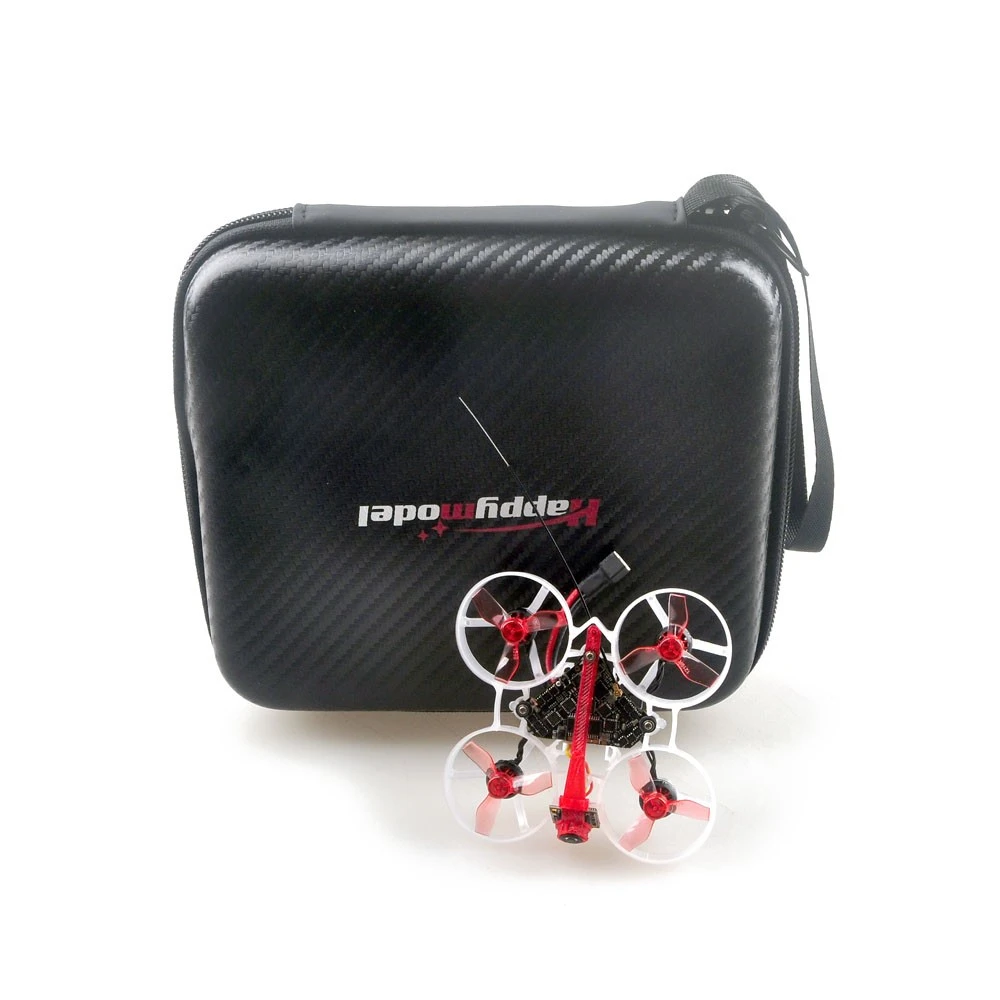

  • 1 x Happymodel Carry case
