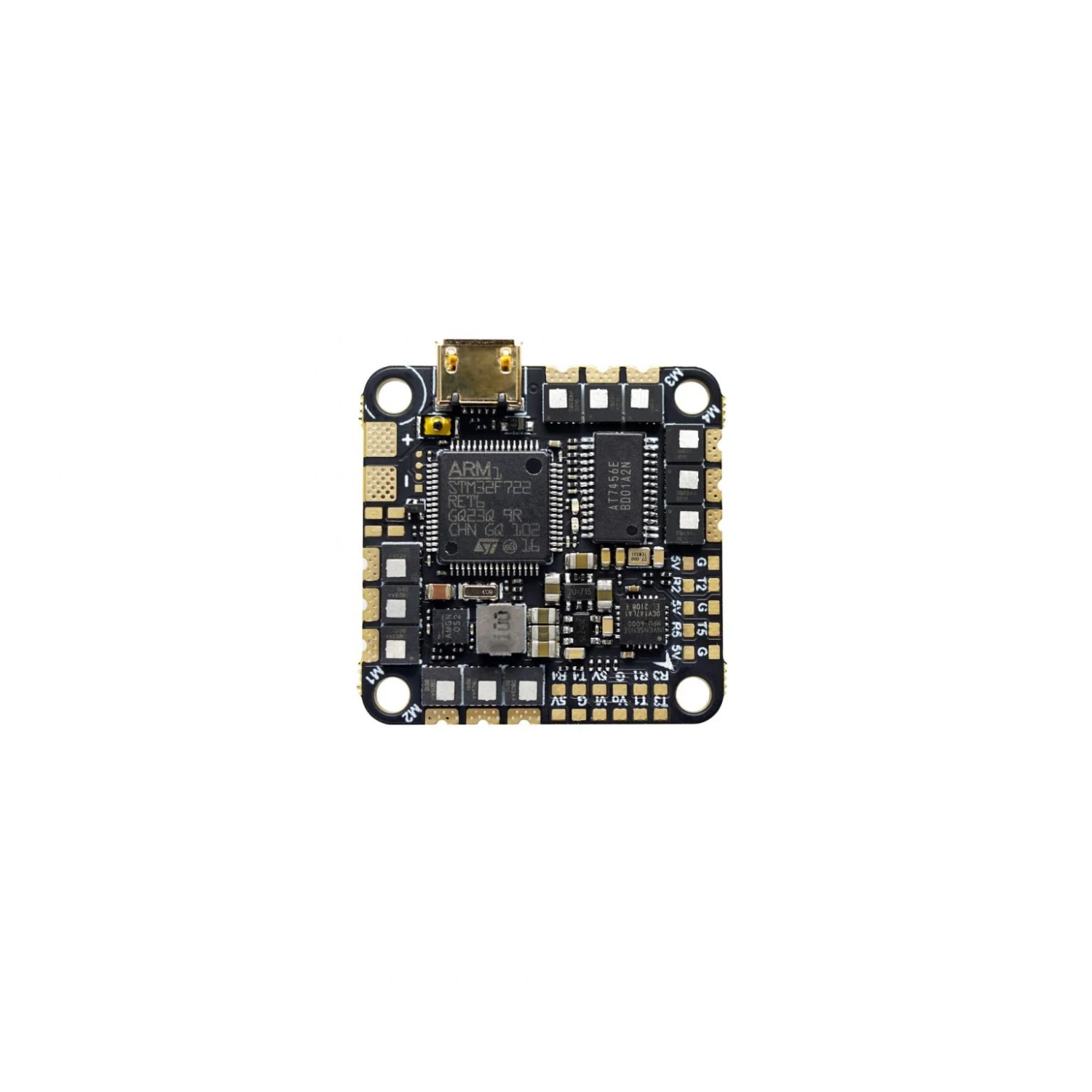

GEPRC GEPRC GEP-F722-45A AIO

Model Name:GEP-F722-45A AIO

MCU:STM32F722

IMU:MPU6000 gyro/accelerometer(SPI)

OSD:Betaflight OSD w/ AT7456Ev

UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

BEC output:5V@1A

Intergrated LC Filter

ESC MCU:8BB21F16G

Continuous current:45A

Input:2~6S

Support:Dshot600,Oneshot,Multishot

Size:32x32mm Board

Installing Hole:26.5×26.5mm,M2

Weight:8.8g

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 26.5mm * 26.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

Specification?

Model Name:GEP-F722-45A AIO

MCU:STM32F722

IMU:MPU6000 gyro/accelerometer(SPI)

Firmware target:GEPRC_F722_AIO

OSD:Betaflight OSD w/ AT7456Ev

UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

Beeper:YES

LED:YES

USB:Micro USB

BEC output:5V@1A

Intergrated LC Filter

ESC MCU:8BB21F16G

Continuous current:45A

MAX current:55A (10s)

Input:2~6S

Supports:Dshot600,Oneshot,Multishot

BlackBox: 16Mb

Traget:G_H_30

Size:32x32mm Board

Installing Hole:26.5×26.5mm,M2

Weight:8.8g

Features:

MCU:STM32F722,with strong performance and higher computing speed.

It has 5 full UART ports, which can connect more external devices

Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.

Support OSD parameter adjustment, buzzer, led and other functions.

8g ultra light weight

5mm * 26.5mm mounting hole, suitable for most frames

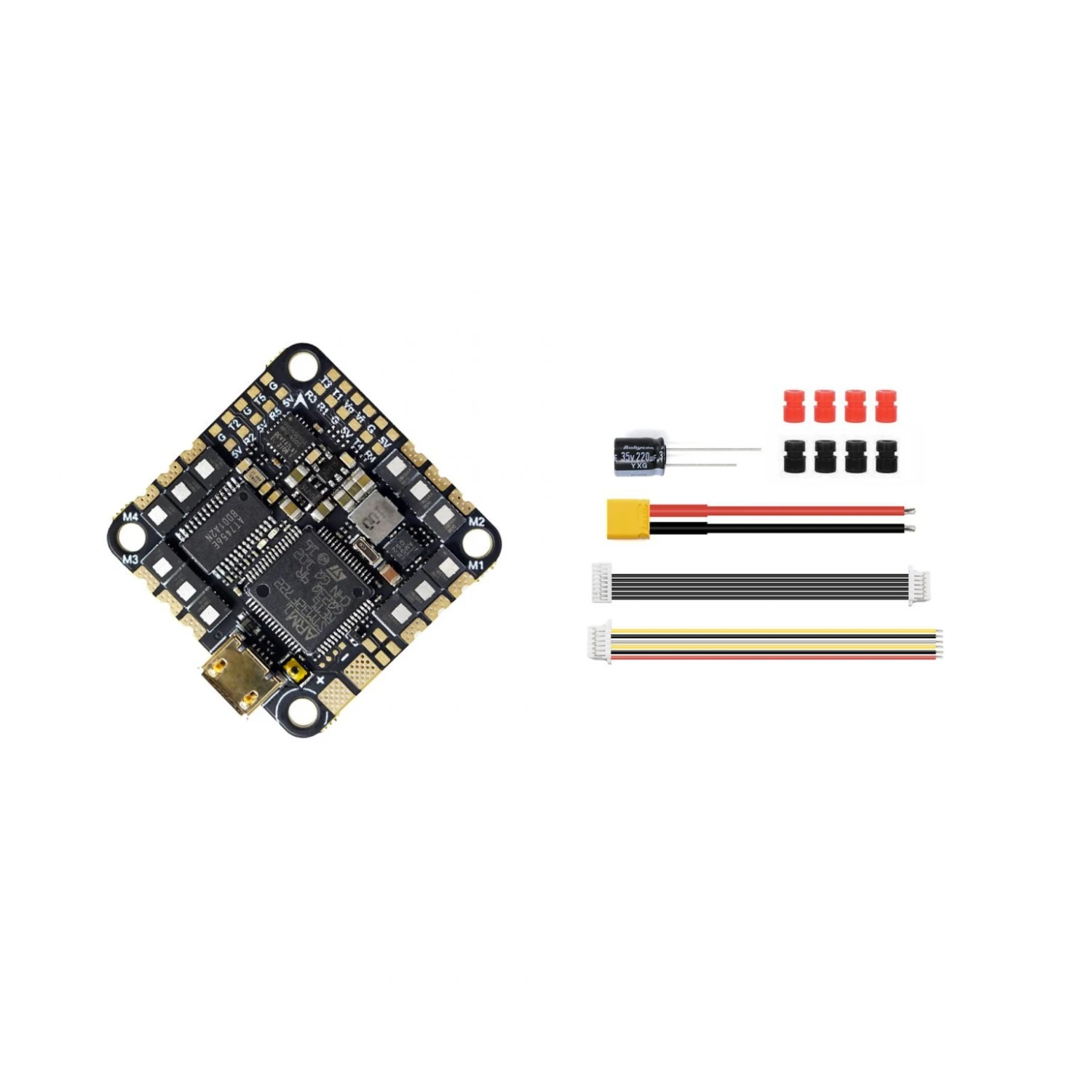

Include:

1 x GEP-F722-45A AIO

1 x XT30-7CM-18AWG Power cables

1 x 35V220UF capacitor

1 x SH1.0-6Pin to GH1.25-8Pin cables

8 x M2*6.5mm Damping rings

Manual:
GEP-F722-45A AIO USER MANUAL
