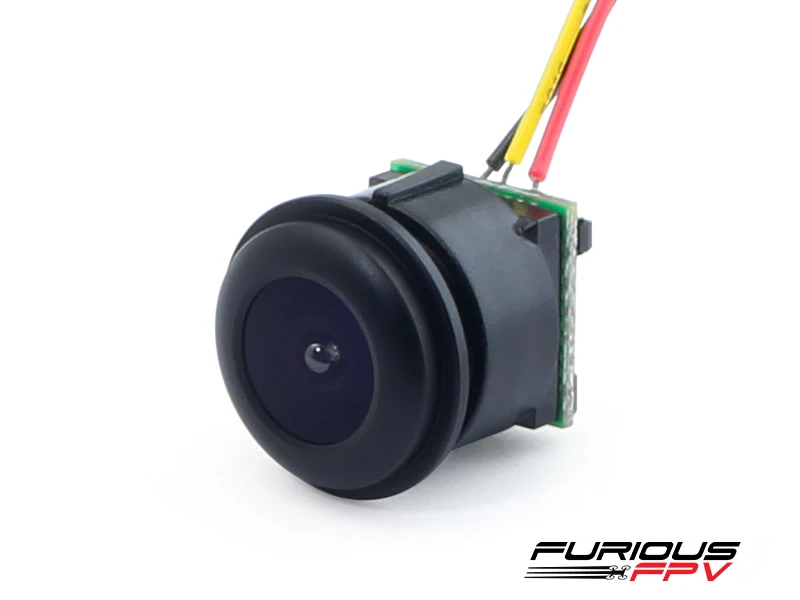

FURIOUS 1/4 CMOS 700TVL FPV 150 DEGREE WIDE ANGLE LENS CAMERA

Original price was: $18.50.Current price is: $12.95.

SKU: C25OB 9009 Categories: Cameras, FPV Cameras, FPV Components, MultiRotors

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Description:

Resolution: 1280 * 960

Resolution: 600TVL

Camera Dimensions: 12.5mm * 12.5mm * 17mm

Illumination: 0.5LUX

Format:PAL

Power supply range: 3.7-5V 100mA

Audio Lens: Wide-angle 1.8mm (150 degree)

Image sensor:1/4 CMOS image sensor

Sensitive area: 3.5964mm x 2.7084mm

648 pixels (horizontal) ? 488 (vertical) 648 (horizontal) ? 488 (vertical)

Scanning Frequency Horizontal: 15.625KHz

Vertical: 50Hz

Level: 15.7343KHz

Vertical: 60Hz

Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)

SNR ≥48dB (AGC OFF)

Minimum illumination : 0.1 Lux / F1.2

Composite video signal :1.0Vp-p 75Ω

Standard Lens :1.8 mm

Specifications PCB: 20mm*20mm

Power: DC5V ? 10% 70mA ? 10%

Operating temperature :-10 ℃ ~ 60 ℃ RH95% Max

Note:It’s only support 3.7-5V voltage , the manual book 5-12V voltage is wrong .

Included:

1 x 700TVL Wide Angle Lens Camera
