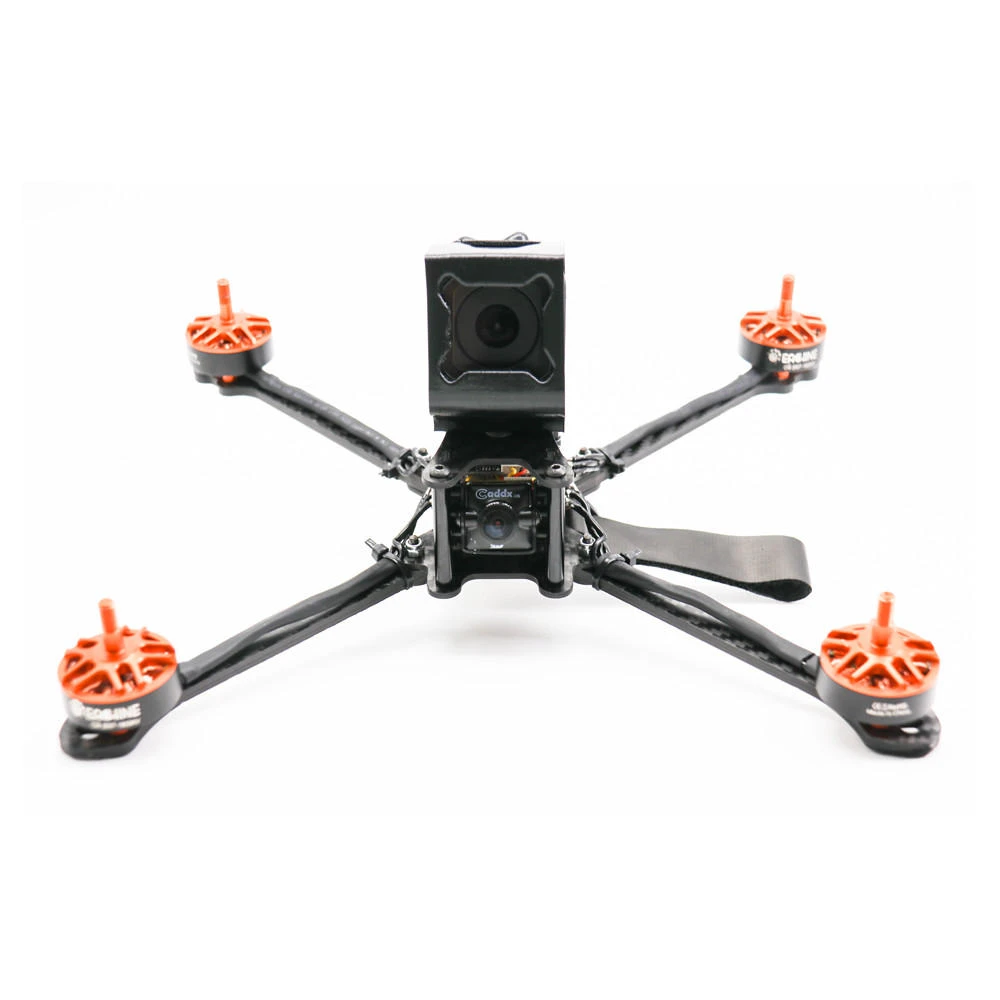

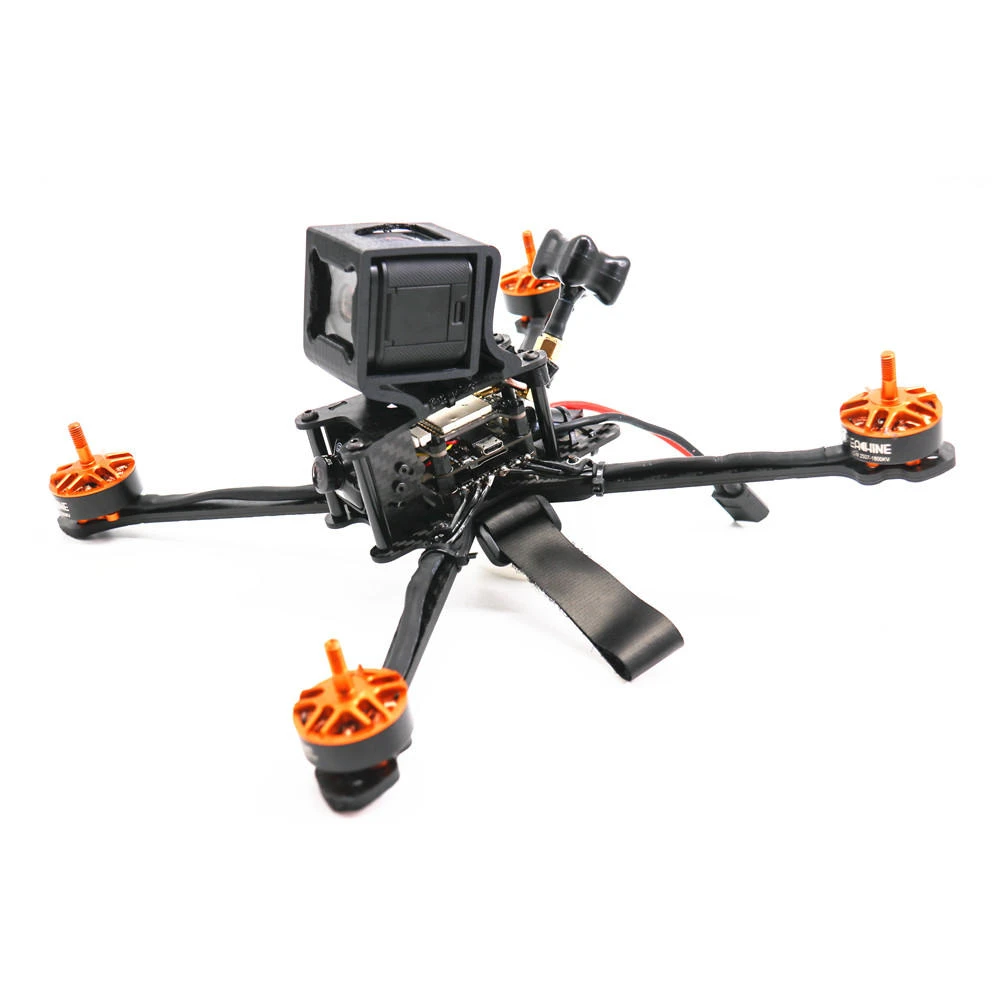

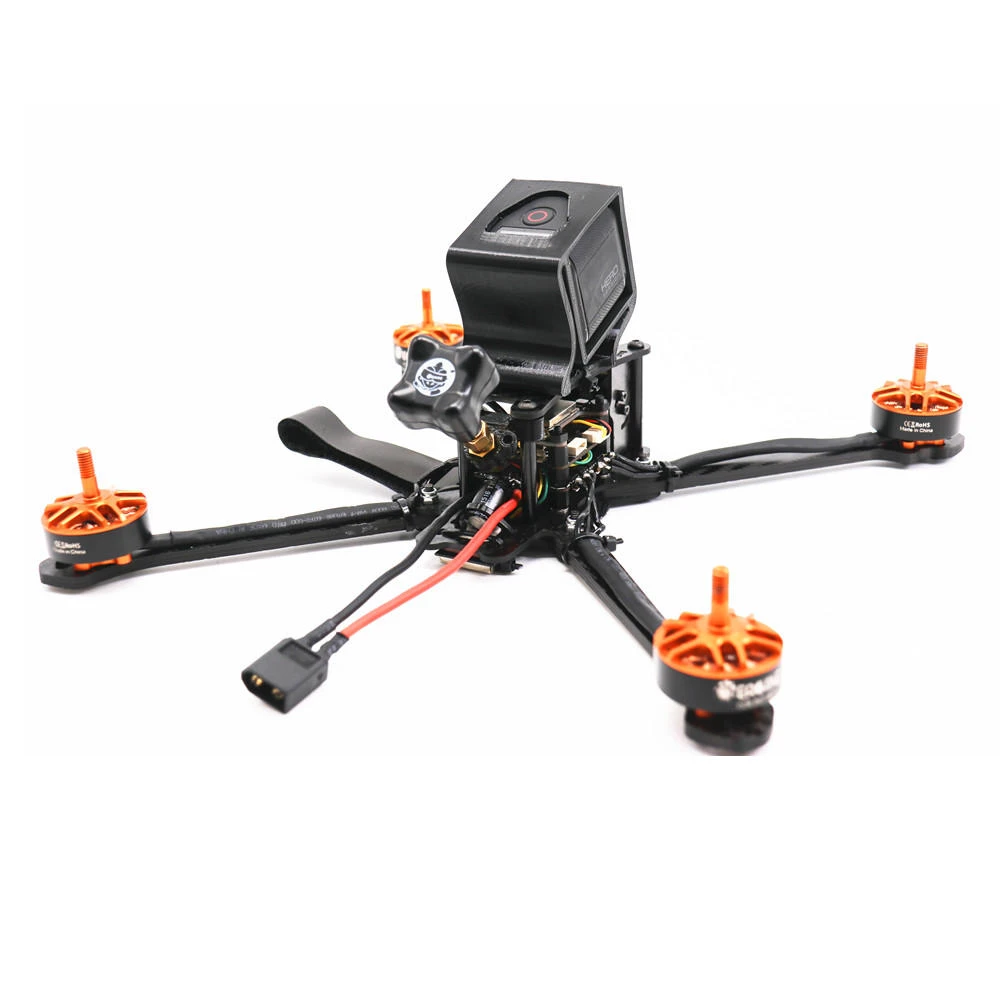

Eachine Tyro129 280mm DIY Version 7 Inch FPV Racing Drone PNP W/ GPS

Notice:

1. This is the DIY version that comes unassembled.

2. Comes without battery, charger, receiver or radio transmitter.

3. The Go-pro Session Camera was not included in the package.

Specification:

Brand Name: Eachine

Model: Tyro129

Item Name: 280mm F4 OSD DIY Version 7 Inch FPV Racing Drone

Version: PNP ( Without Receiver, Battery , Radio Transmitter)

Item Specification

280mm Racing Frame Kit

Wheel base: 280mm

Frame arm thickness: 5mm

Upper plate thickness: 2mm

Bottom Plate Thickness: 2mm

Side plate thickness: 1.5mm

Frame kit material: 3K carbon fiber & CNC 6065 aluminium

2507 1800KV 3-5S Brushless Motor

KV: 1800KV

Lipo cell: 3-5S

Weight: 39g

Motor Resistance: 0.0586?

Maximum pull: 1488g (4S 7inch propeller)

Maximum power: 840W

Configu-ration: 12N/14P

Motor Stator Diameter: 25mm

Motor Stator Thickness: 7mm

Motor Diameter: 30.8mm

Motor Length: 20mm

Whole shaft length: 35mm

Mounting holes distance: 16*16mm

Mounting holes: ?M3

Recommend propeller: 6-7 inch

Eachine 4In1 40A BLHeli_S ESC

Continuous current: 40A

Burst current: 45A (10S)

BEC output: 5V @ 2A

Input voltage: 2-6S

Main control chip: 48mhz EFM8BB2

Firmware upgrade: Supports Dshot150-600/Multishot/Oneshot/PWM

MOS: 5X6

Current Sensor: NO

Size: 37.5×37.5mm

Mounting Hole: 30.5×30.5mm

Weight: 15g

Eachine GPS F4 Flight Controller

Brand Name: Eachine

Model: GPS F4

Main control chip: STM32F405

Gyroscope: MPU6000

Barometer: BMP280

Firmware: Support betaflight / INAV firmware

Integrated OSD, support betaflight configuration & DMA Mode ( F4 MCU controls OSD)

– Support PPM /DSM2/X / IBUS/ SBUS/ XBUS receiver

– with 10V @ 1.2A BEC Output, for VTX or Camera

– LED_STRIP solder pin, changing LED flashing mode & color via flight controller

– Buzzer solder pin, support connect external alarm buzzer

– with voltage detection port ( BAT) and current detection port ( CRT), to detect battery’s voltage and current
( Need connect extra current sensor module)

– with MicroSD Blackbox pad

– with 5 UART & I2C Port, for connecting GPS Module

– Plugs connector / Soldering Pads are Optional for all connector Port

Caddx.us Turbo f2 Camera

Case size: 19x19x16mm

Weight: 5.5g

Signal system: NTSC / PAL (Switchable)

Resolution ratio(horizontal center): 1200TVL

Video output Signal: cvbs

Image: 16:9

Synchronization method: inter-sync

Camera lens: standard 2.1mm

Lens operating voltage: DC 4.5-40V

S/N Ratio: >52dB (AGC OFF)

Audio: YES

5.8G 40CH 25/200/600mw switchable VTX

Transmitting power:0/25/200/600mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V@260mA/600MW

Transmitting Distance: ?0.5km@25mW, ?1km@200mW, ?2km@600mW

Size: 36×36×5mm

Weight: ?7g (except antenna)

Eachine BN-220 GPS Module

Brand Name: Eachine

Model: BN-220

Item Name: BN-220 GPS+GLONASS Dual GPS module

– Built-in FLASH, TTL

Data Protocol: NMEA-0183

Output Rate: 9600bps, 1HZ

Size: 22mm*20mm*6mm

1.TX LED:blue.The data output, TX LED flashing

2.PPS LED:red.PPS LED not bright when GPS not fixed,
flashing when fixed

DALProp T7056C 3-blade propeller

Brand Name: DALProp

Model: CYCLONE T7056C

Material: PC

Mounting hole: 5mm

Quantity: 2 pairs

Color: Transparent White

Prop Spiral Diameter: 177.8mm

Hub Thickness: 8.26mm

Weight: 7.5g/ PC

Recommend Lipo Battery ( NOT Included)

5S 1600-2200mAh 50-85C Lipo Battery
