Duratrax Onyx 1/10 80A/4420kV Brushless System

Original price was: $149.97.Current price is: $96.99.

SKU: C25OB 6160 Categories: Electronic Speed Controllers, Electronics

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

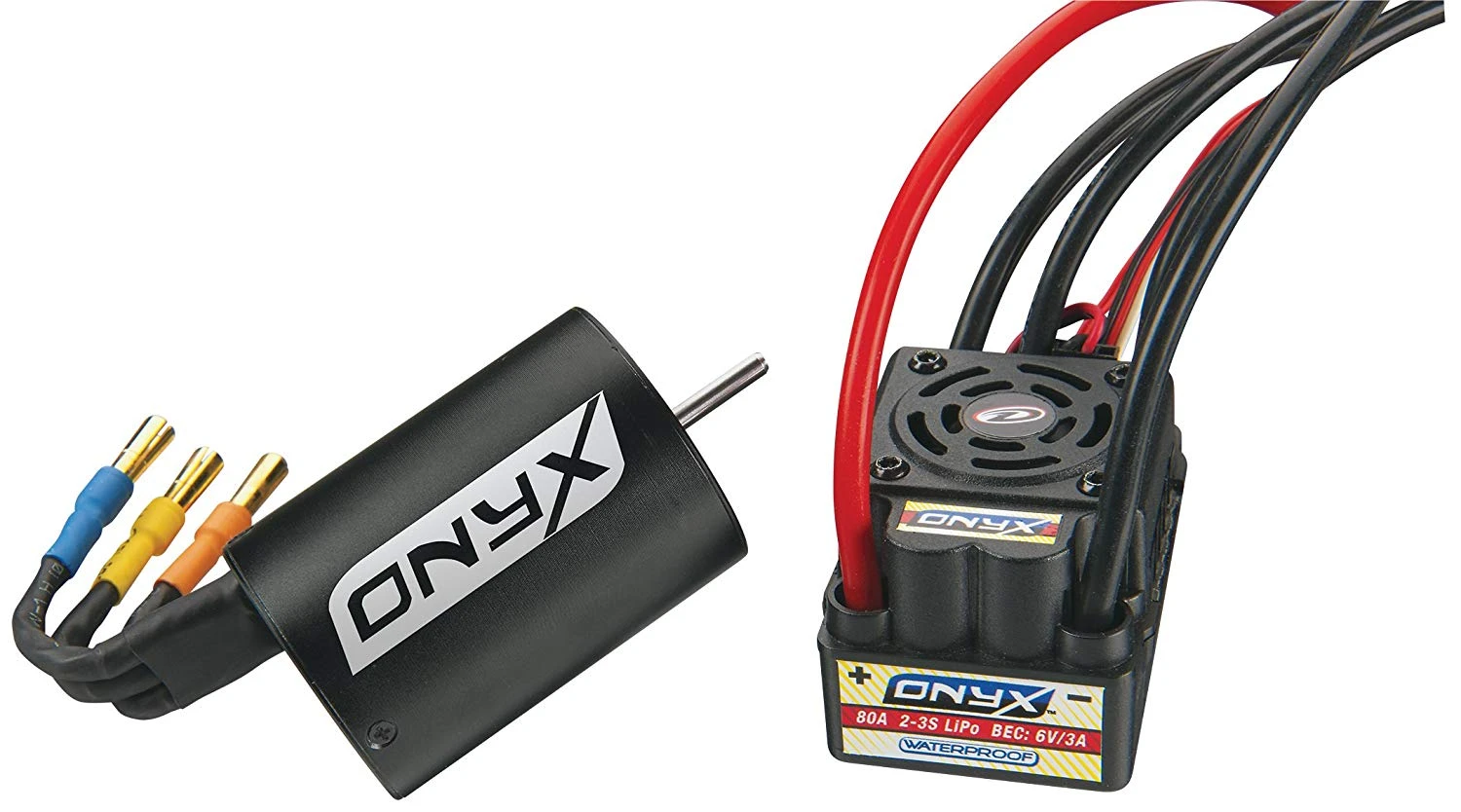

This is the Onyx 4420kV Brushless Motor and ESC System
for 1/10 scale RTR buggies, trucks, and short course trucks.

FEATURES:

Ideal upgrade for 1/10 scale RTR buggies and trucks

Two pole 4420kV brushless motor

Waterproof ESC for protection from the elements

Preinstalled bullet connectors-no soldering required

Fully programmable ESC with optional Onyx Programming Card (not
included, order DTXM1352)

180 day limited warranty through Hobby Services beginning at date of
purchase

INCLUDES:
Onyx 4420kV Brushless Motor and ESC System with Instructions, Deans
Ultra Male Battery Connector, Wire Lead for Programming Card
(programming card not included) five sections of Shrink Wrap

SPECS:

ESC;

Cont./Burst Current: 80A/520A

Suitable Motor: Sensorless, brushless

Motor Limitation: 2S LiPo 6000kV,
3S LiPo 4000kV

Resistance: 0.0007 ohms

Input: 6-9 NiMH/NiCd cells, 2-3S LiPo cells

BEC: 6V/3A Linear

Dimensions: 1.5 x 1.5 x 2.3″ (38.4 x 38.4 x 59.3mm)

Weight: 3.9oz (110g)

Connectors: 4mm bullet

Battery Connection: Deans Ultra Male

Motor;

Dimensions: 1.4 x 2.1″ (36 x 53mm)

Weight: 6.5oz (186g)

Connectors: 4mm bullet

Shaft Diameter: 3.175mm

COMMENTS: *If NiMH or NiCd packs are used, they must be capable of high
discharge rates or poor performance will result.
