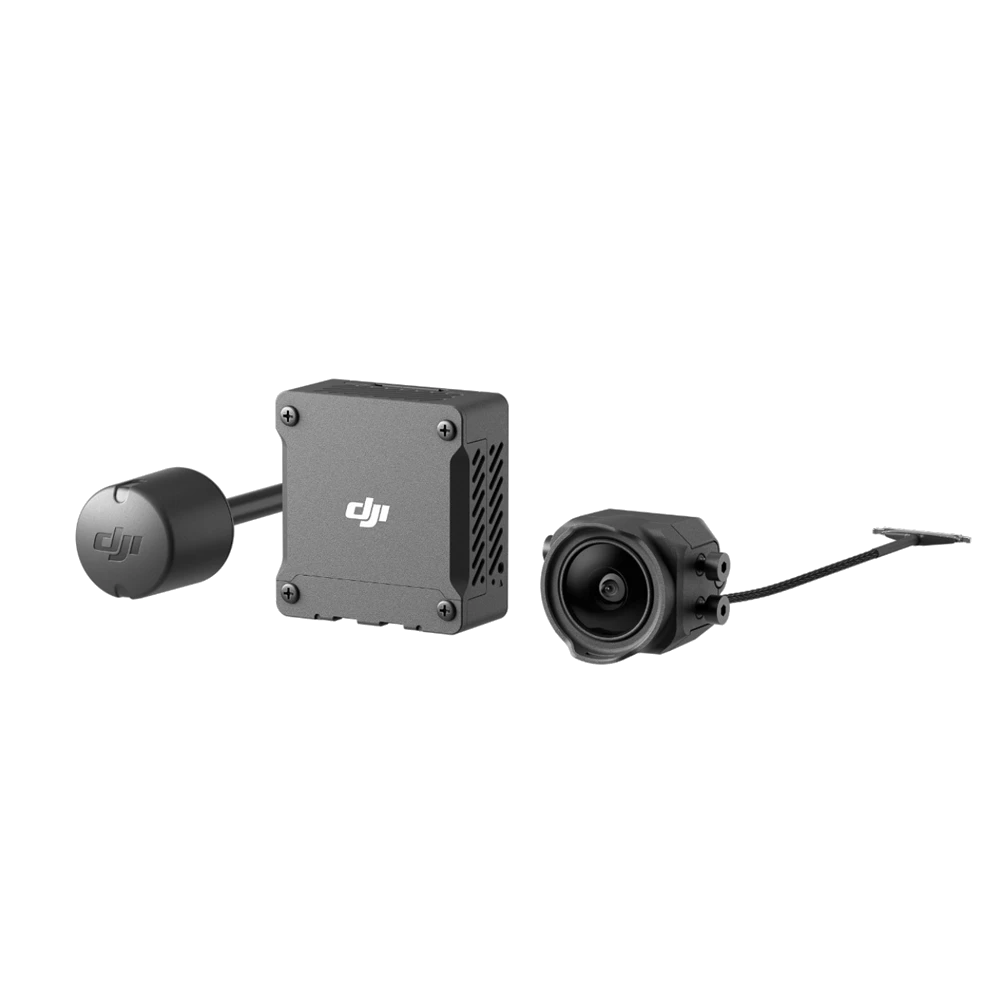

DJI O3 Air Unit

Integrating DJI’s cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. [1] It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity. [2]

Highlights

1080p/100fps H.265 Video Transmission

4K/60fps Video

155° Super-Wide FOV

Frequency Auto-Switching

Canvas Mode

Camera
Matrix: 1/1. 7ª CMOS Effective pixels: 48 MP

Lens: Fiek of View (FOV): 155* Equivalent Focal Length: 12.7mm Focal Length. 2.34mm

Aperture: 62 8 Focus Mode: FF Focus Range: 0.6m to w

ISO range: 100-6400(Auto) 100-25600(Manual)

Snapshot: Roll Shutter

Field of View (FOV): 155°

Video resolution:

With D.I Goggles 2 4K @ 50/60FPS 2.7K @ 50160/100FPS 1080p @50/60/100FPS

With DJI FPV Goggles V2: 4K & 50/00FPS 2.7K 50/60/100/120FPS @ 1080p 50160/100/120FPS

Video Format: MP4

Electronic Image Stabilization (EIS): The product supports RockSteady technology.

Libra: Approx. 8.3 g (including coaxial cable)

Air Unit Module
Libra: Air Unit (without Camera Unit): Approx. 28g Air Unit (including Camera Unit) Approx. 36.4g

Antenna: Approx. 3g

Dimensions (L× W x H):

Transmission module: 325 x 30.5 x 11.5 mm (L x W x H)

Camera module. 21.2 x 20 x 19.5 mm (Lx W x H)

Coaxial cable: 115 mm (length ) 3-in-1 cable: 100mm(length) Antenna. 85mm (length)

Communication frequency: 2.400-2.4835 GHz (RX only) 5.725-5.850 GHz (RX and TX)

Transmission power (EIRP) : FCC: «33dBm CE. 14dBm SRRC: «30dBm

Live view quality and and delay:

– With DJI FPV Goggles V2

810p/120FPS video transmission quality. less than 28ms alency.

810p/60fps video steaming quality. less than 40ms latency

– With DJI FPV Goggles 2

1080p/80FPS video streeming quality:less than 30ms latency

1080p/60FPS video streaming quality: less than 40ms latency.

Video transmission range: 10km (FCC), 2km (CE) 6km (SRRC)

Flight controller software supported: Compatible with flight controller software that supports Betaflight Please see product FAQ for more information.

Input voltage: 7.4.26 4V

Working temperature: 10°C to 10°C (14°F to 104°F)

Channels: Auto mode support

Manual mode support: 40 MHz: 1 channel: 20MHz 3 channels;10MHz: 32 channels;

Channel information:

FCC / SRRO / CE: 40 MHz: Ch 1: 5794 5 MHz 20 MHz / 10 MHz: Ch 1: 5768.5MHz Ch 2: 5804.5 MHz Ch 3: 5839.5 MHz

Supported SD cards: microSD (up to 256GB)

Recommended microSD cards:

DJI Goggles supported

SanDisk Extreme U3 V30 A1 32GB

microSDXC SanDisk Extreme Pro U3 V30 A132GB

microSDXC Kingston Canvas GolPlus U3 V30 A2 64GB

microSOXCKingston Canvas React Plus U3 V90 A1 64GB

microSDXC Kingston Canvas ReactPlus U3 V90 A1 128GB

microSDXC Kingston Canvas React Plus U3 V90 A1256GB

microSDXC Samsung PRO PlUS U3 V30 A2 256GB

DJI Goggles Supported: DJI Goggles 2 and DJI FPV Goggles V2

Supported DJI remote controllers: DJI FPV Remote Controller 2

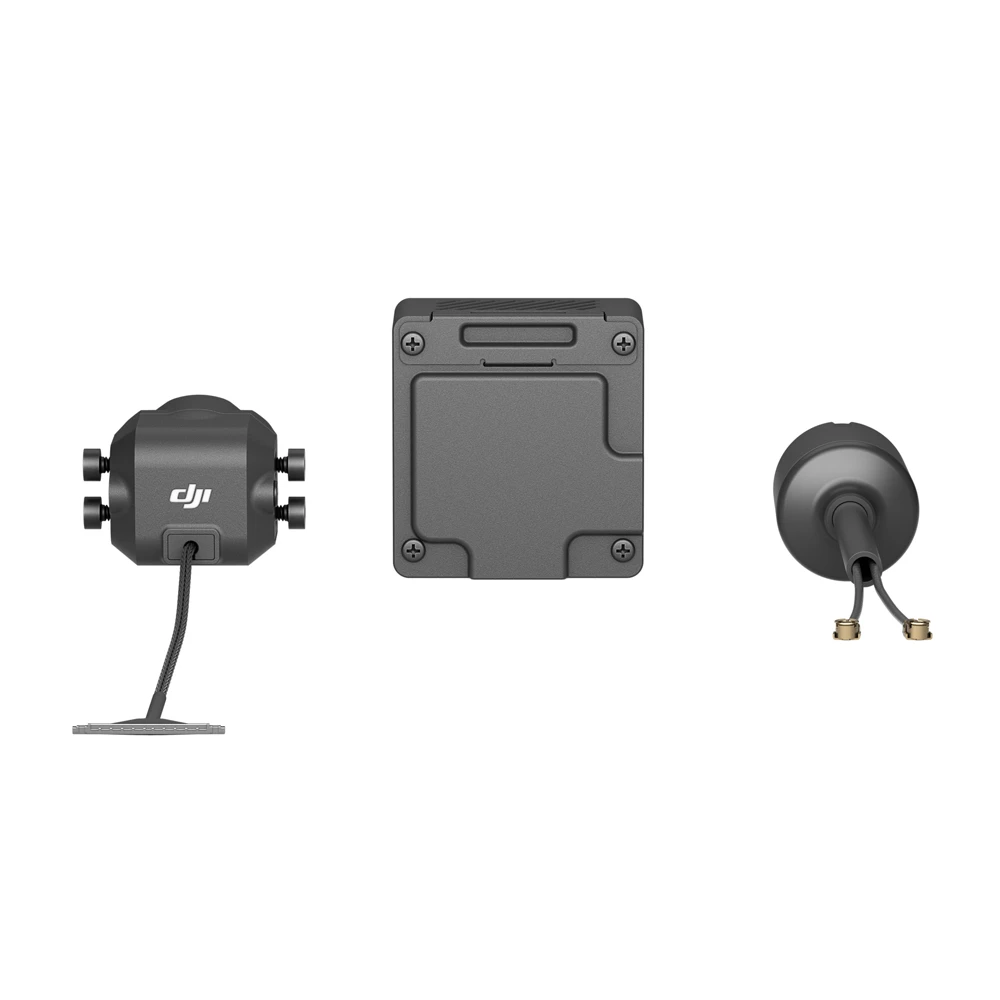

Package included

1 x DJI O3 Air Unit Camera

1 x Module de Transmission DJI O3 Air Unit

1 x Antenne DJI O3 Air Unit

1x Cable 3 en 1 DJI O3 Air Unit
