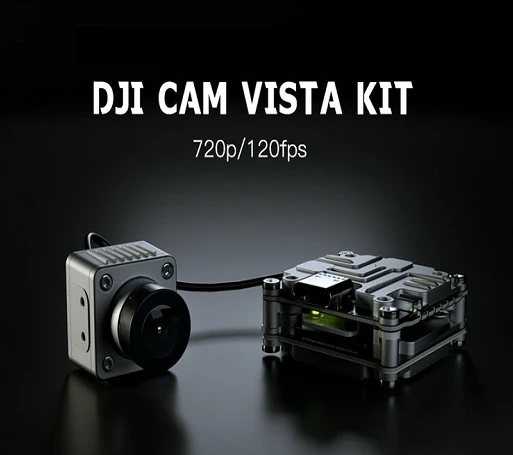

CADDX VISTA DIGITAL HD SYSTEM W/DJI CAMERA 720P 120FPS – 12CM COAX CABLE

Caddx has worked with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Even better, the Caddx Vista was engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad!

SPECIFICATIONS


Now shipping with 12cm cable.

Dimensions

-Module: 30.45 x 29 x 13mm

-Camera: 27.4 x 21.1 x 20.1mm

Weight: 29g (inc. camera); Module: 19g

Antenna Connector: u.FL

Operating Frequency: 5.725-5.85GHz

Transmitter Power (EIRP)

FCC/SRRC/MIC: 20dBm

CE: 14dBm

I/O Interface: USB-C, IPEX, 3-in-1 Port

Min. Latency: Low Latency Mode (720p 120fps): 21-28ms

High-Quality Mode (720p 60fps): 30-40ms

Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km

Input Power: 7.4-26.4v

DJI Camera

Sensor: 1/3.2″ CMOS

Effective Pixel: 4M

Lens: 2.1mm f/2.1

Shutter: Rolling Shutter

ISO: 100-25600

FOV: 150(D);122(H);93(V)

INCLUDES

1 x Caddx Vista Digital HD System W/DJI Camera 720p 120fps – 12cm Coax Cable
