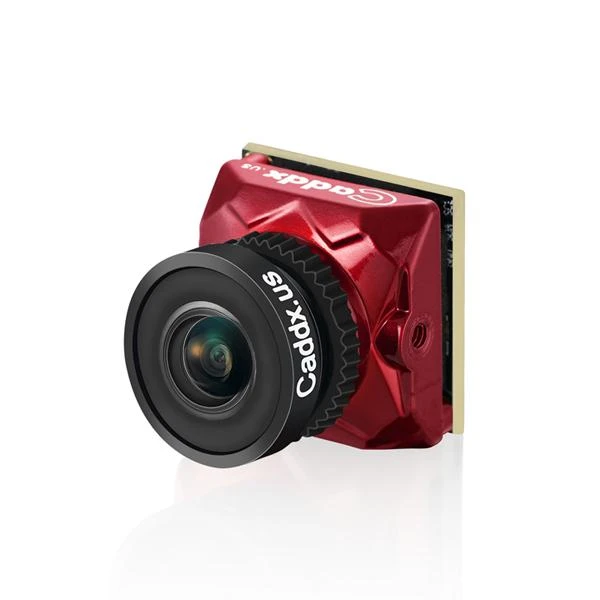

Caddx Ratel 2.1mm Lens

Caddx Ratel has a superb night vision effect, it can be seen clearly under the faint light.

Equipped with high quality 1/1.18″ Inch starlight HDR sensor, providing up to 0.0001 Sensitivity of lux. With the OSD menu, you can switch between PAL and NTSC video standards, or between 4:3 and 16:9 video formats. Ultra-low latency of 8ms

Super WDR
Caddx Ratel has super WDR,Ratel’s images are brighter and sharper than those of regular cameras

Specification

Model Caddx Ratel

Image Sensor 1/1.8″ Inch starlight HDR sensor

Horizontal Resolution 1200TVL

TV System NTSC & PAL (changeable)

IMAGE 16:9 & 4:3 (changeable)

WDR Super WDR （HDR)

Min. Illumination Starlight

Lens 2.1mm

Synchronization Internal

Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio >60dB (AGC OFF)

Video Output CVBS

Camera OSD Seperate OSD

DNR 3-DNR

LANGUAGE ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN

Day/Night Auto/Color/B&W/EXT

Dimensions 19mm*19mm*19mm

Wide Power Input DC 5-40V

Work Temperature -20℃~+60℃

Work Humidity 20%~80%

Weight 8g (N.W.)/ 40.5g (G.W.)

Packing List：

Camera x1

5D-OSD menu board x1 pcs

1x 4pin FPV silicone cable A x1 (extend into a 2pin joint for OSD board and a 3pin joint for FPV)

FPV silicone cable B x1 (2-pin port for both side)

Internal hexagonal wrench x1

Screws x1 set

Warranty card x1
