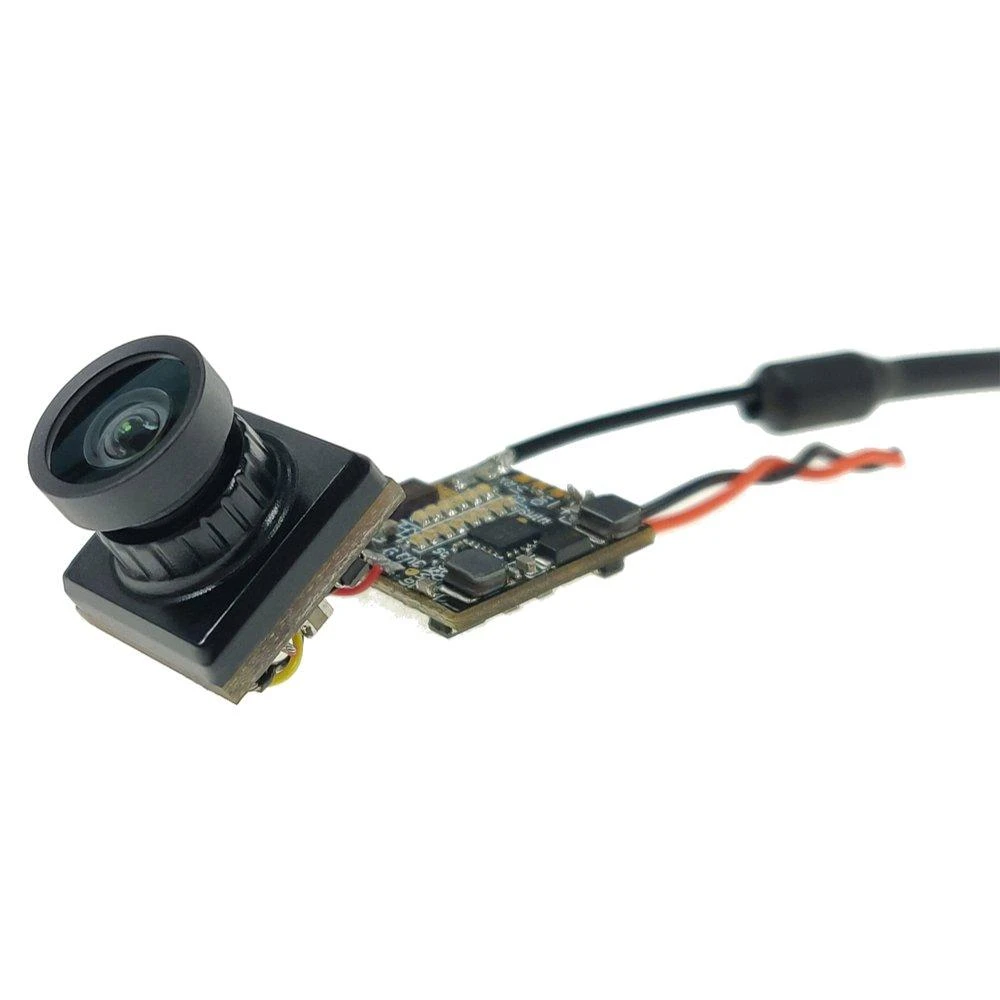

Caddx Firefly 1/3″ CMOS 1200TVL 2.1mm Lens 16:9 NTSC FPV Camera With VTX

English Manual, Click Here

Specifications of Camera:

Brand Name: Caddx

Item Name: Firefly

Color: Black

Lens: 2.1mm

Image Sensor: 1/3″ CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC

Image: 16:9

Synchronization: Internal

Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio: >52dB (AGC OFF)

Video Output: CVBS

Min. Illumination: [email protected]

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 2 DNR

Dimensions: 14mm*14mm*16mm

Wide Power Input: DC 3.3-9V

Work Temperature: -20℃~+60℃

Work Humidity: 20%~80%

Weight: 4.1g (Camera + VTX)

Specifications of VTX:

Feature: TBS SMART OSD

Frequency Band: 5362~5945MHz

Channel Customer: 48

Modulation Type: FM

Channel SEL.: Touch Switch

Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS

Transmit Power: 13?1dBm

Frequency Control: PLL

All Harmonic: Max -50dBm

Frequency Stability: ?100KHz (Typ.)

Frequency Precision: ?200KHz (Typ.)

Channel Carrier Error: 1dB

Antenna Port: 50 Ω

Power Consumption: 140?20MA@5V DCIN

Supply Voltage: 2.9-5.5V

Operating Temperature: -10℃~+60℃

Profile Dimension: 15mmx14mm

Caddx FireFly -Airplanes Store

Caddx FireFly -Airplanes Store Screen Shot 2018 08 13 at 13.33.16
