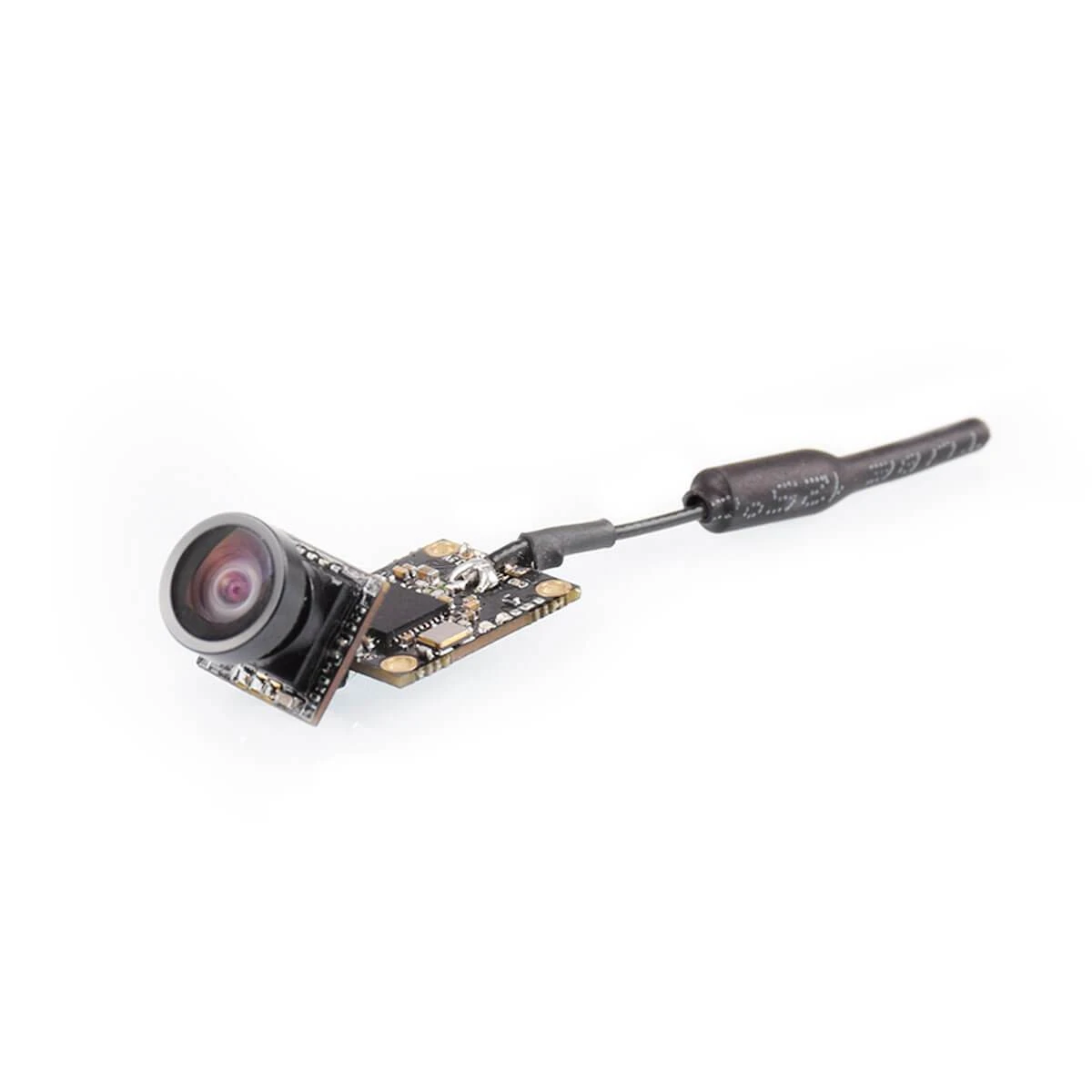

BETAFPV M01 AIO Camera 5.8G VTX (Pin-Connected Version)

M01 AIO Camera 5.8G VTX comes with a super Mini 5.8GHz FPV Transmitter + 600TVL FPV Camera + RG178 Antenna, features 6 bands and 48 channels on the 5.8GHz band with Raceband. The unit is ultra-lightweight only 3g and pins connect with FC, so it is easy to place on Pro Series and Brushed Whoop Drone.

FEATURE

Pins connect with FC, easily Installation

Lighter than Z02 AIO Camera VTX, perfect for Micro Drone

Suitable for Pro Series and Brushed Whoop Drone

25° and 35° Camera tilt Mount are provided to suit your preference

SPECIFICATION

Item: M01 Camera AIO VTX

TVL: 600TVL

FOV: H:120°/V:100°

Video System: NTSC

Horizontal Resolution: 640X480 1/4”

Output power: 25mW

Supply Voltage: 5V

Size: 18*14*4.5mm(VTX)

Weight: 3g

Antenna: RG178 Antenna

Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz

How to Connect with FC
M01 VTX comes with pluggable pins, which is convenient assembly with brushed FC like F4 1S Frsky brushed FC

PACKAGE

1 * BETAFPV M01 AIO FPV Camera VTX

1 * Camera Mount (25 degrees)

1 * Camera Mount (35 degrees)
