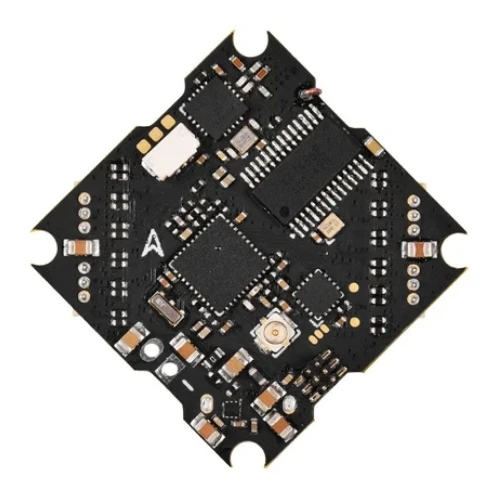

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC - Image 2

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC - Image 3

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC - Image 4

BetaFPV F4 1S AIO Brushless Flight Controller – SPI Frsky D16 FCC

Original price was: $44.99.Current price is: $31.49.

SKU: C25OB 12413 Categories: 25x25 FC Whoop, Flight Controllers, MultiRotors

Streamlined service, designed for your convenience.
Safe Payments, the Smart Choice
7 days free returns
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC -Airplanes Store FB f8ab4c40 d939 4b14 94ac

Bullet Point

Integrated with a 25mW VTX, this AIO board(Frsky/Futaba Rx) is ultralight only 3.92g, which can extremely save the weight of building drone, perfectly suitable for the 1S weight-sensitive drone such as Meteor65 HD and HX100 SE.

This AIO board also reserves a Plug & Play port for the C01 Camera, C01 Pro Camera and BETAFPV Nano HD Camera, no soldering work needed, super convenient for installation.

Specially added with 2 RGB LED indicators, this board brings the drone an incredible light effect while pilots flying on the night.

This board can handle 5A continuous current(6A burst), supports the 1S lipo battery, brings the drone a stronger flight performance.

Come with a BT2.0 connector, it solves the problem of voltage sag, the discharge can be more efficient, which brings this board a better performance on function for power and responsiveness.

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC -Airplanes Store faaad13ec2ed82637150a4fd0d3a485f 98f10643 c434 4a6b 8749

Specification of F4 1S AIO FC(SPI Rx)

Item: F4 1S AIO FC(Frsky/Futaba Rx)
Weight: 3.92g(without antenna and BT2.0 connector)

VTX Power: 25mW

CPU: STM32F411CEU6 (100MHZ )

Six-Axis: MPU6000 (SPI connection)

Firmware version: betaflight_4.2.0_STM32F411

Receiver: Support Frsky Receiver/ Futaba Receiver

Motor Pin Connecter: 1.25mm Header Pins

Mounting hole size: 29mm x 29mm / suitable for almost all kind of whoop frame

Specification of ESC

Built-in ESC with 5A continuous and peak 6A current

Input voltage: 1S Lipo

ESC firmware: O_L_5_REV16_8.HEX

OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM

4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC -Airplanes Store 1S 9eee2dc0 5996 49f1 a5e6

SPI Receiver CC2500
Come with the build-in SPI Receiver CC2500, F4 1S AIO FC(SPI Rx) can compatible with Futaba S-FHSS, Frsky D8 and D16 protocol. The default Frksy protocol is Frsky D16, if pilots buy the wrong receiver of the SPI Frsky version or upgrade the wrong firmware accidentally, which needs to switch the protocol to Futaba or FrskyD8, please upgrade the Betaflight Firmware according to this tutorial.

BetaFPV F4 1S AIO Brushless Flight Controller - SPI Frsky D16 FCC -Airplanes Store

Status LED for F4 1S AIO FC(SPI Rx)
There are 4 LEDs on the bottom of the board to indicate the status, including the Receiver LED ( Blue), FC Status LED(Green), FC Power LED ( Red ) and VTX LED(Pink).
