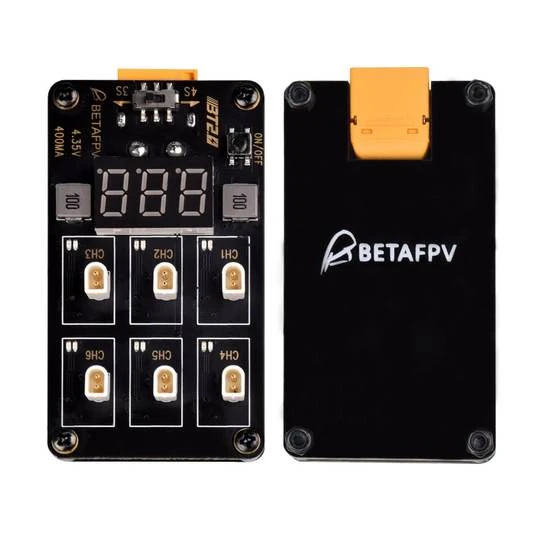

BetaFPV BT2.0 Connector 1S Lipo Charger Board & US Wall Adapter

Compact, versatile and powerful, the battery chargers board is among the most popular pilots’ common tools. This charger board is customized for BT2.0 connector battery, while it is safely and easily charging packs.

Bullet Point

Allow charging 6pcs BT2.0 Connector batteries at the same time, Individual charging per ports, not parallel

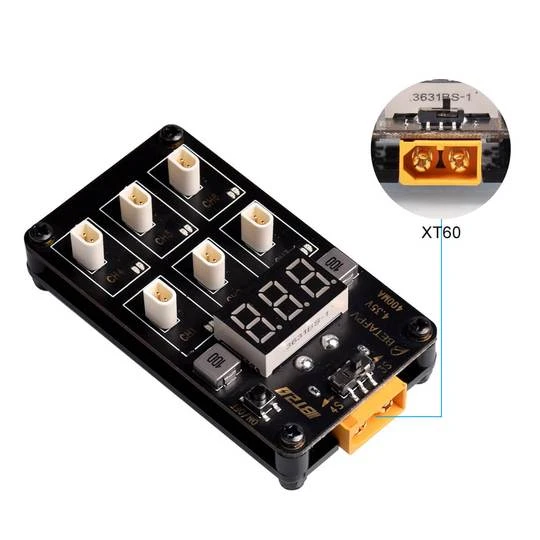

You could also use XT60 adapter or 3s/4s battery(XT60 Input) as supply power so you can continuously charge

Turns itself off when supply battery reaches safe low-voltage. 2 channels BEC for supply current

LED lights indicate when each battery is done charging

Note: If you plug battery with XT60 connector, please switch to corresponding Input voltage button. 3S battery– 3S button, 4S battery– 4S button. If you do not switch match button, it will unable to be charged. The power adapter can choose any Input voltage button.

Charger Board Specification

Weight: 36.86g
?
Dimensions: 75x42x22mm
?
Input: 3s – 4s Selectable

Cutoff Voltage: 10.8v (3s), 14.4v (4s)

Output: Fixed at approx 400 milliamps

4.35v cell charging cutoff for Lipo battery (+- 0.5% margin of error)

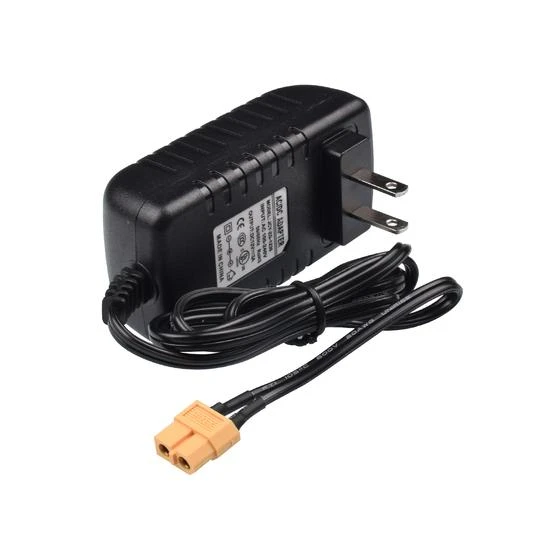

AC Wall Adapter

Wall AC/DC Adapter

If you don’t have any XT60 batteries, AC/DC XT60 wall power adapter will be your best choice.

Package

1 * Wall AC/DC Power Adapter / 1 * BT2.0 Connector 1S Lipo Charger Board
