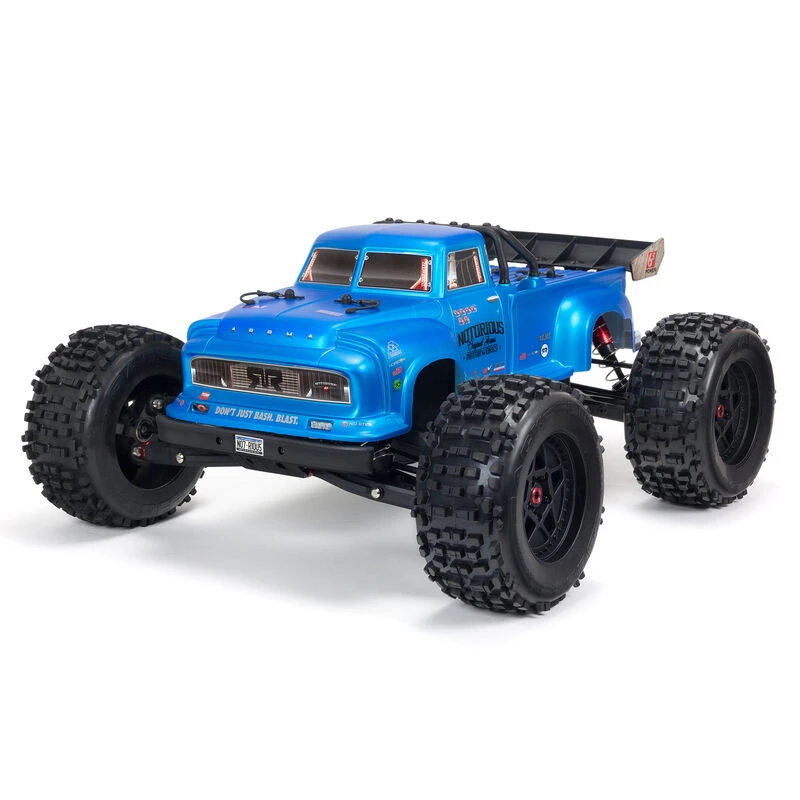

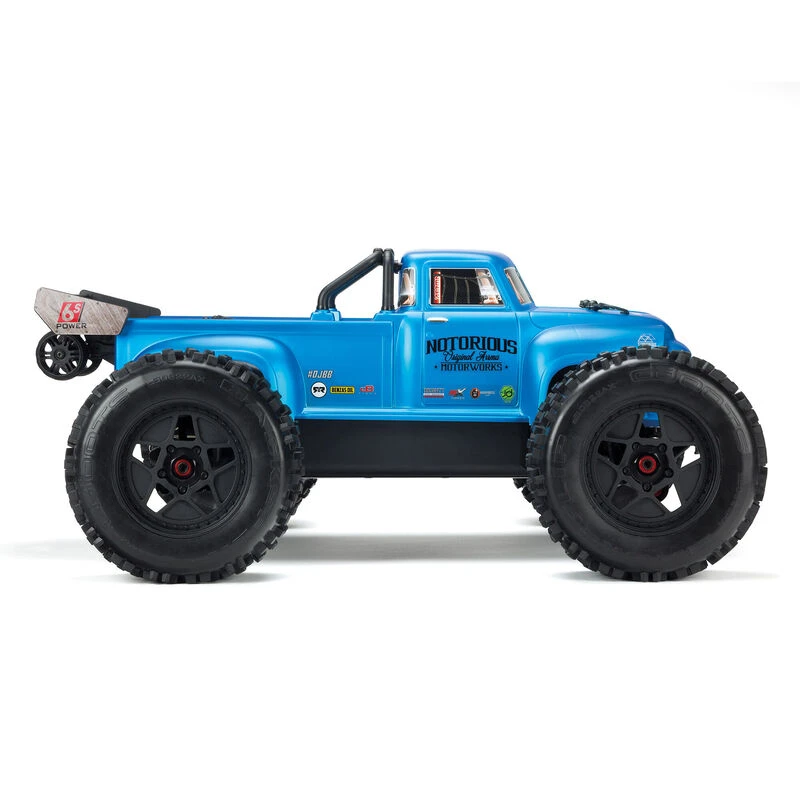

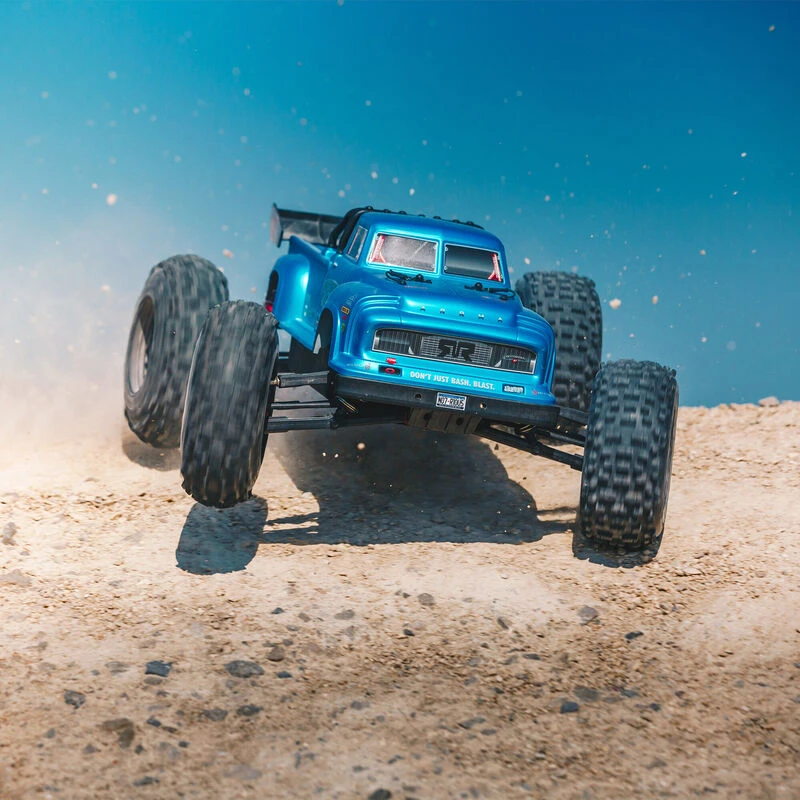

ARRMA 1/8 NOTORIOUS 6S V5 4WD BLX Stunt Truck With Spektrum Firma RTR, Blue

Product Details
Beneath its 1950s “Real Steel” body, the 1/8 scale NOTORIOUS™ 6S BLX 4WD has an ARRMA® tough design that’s ideal for wheelie-popping, back-flipping stunts — now made even easier with a Spektrum™ SLT3™ radio, dual protocol receiver, Smart ESC and more.

Key Features

Updated with Spektrum™ components and Smart compatible

60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear

EXB compatible front brace

Large volume waterproof receiver box

Ready-to-run – just install a charged 4 cell or 6 cell LiPo battery of your choice

In The Box

ARRMA® NOTORIOUS™ 6S BLX 1/8 Stunt Truck 4WD RTR

Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)

Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)

Spektrum ™ S652 Metal-Geared Digital Servo (installed)

Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)

Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio

Product Manual

Needed to Complete

4S or 6S LiPo Battery

LiPo Compatible Charger

LiPo Charging Bag

(4) AA Batteries

Introduction

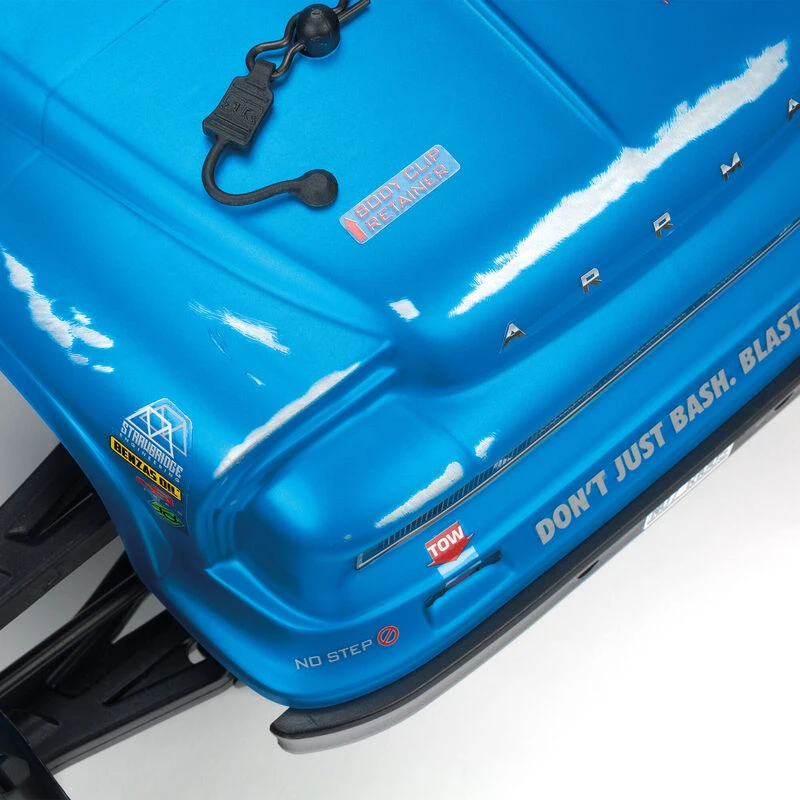

The 1/8 scale NOTORIOUS™ 6S BLX Stunt Truck 4WD unleashes wheelie-popping, back-flipping, outrageous action with one-of-a-kind style. Its custom 1950s body offers more than streamlined good looks and a matte black or matte blue factory finish. Its exclusive ARRMA® “Real Steel” effect adds eye-catching realism that only improves with severe bashing. The more scratched and scarred your Stunt Truck becomes, the more authentic and amazing it looks.

Features

Ready-to-run

Spektrum™ SLT3™ 2.4GHz 3-Channel Radio

Spektrum™ SR315 Dual Protocol 3-Channel Receiver

Spektrum™ S652 Digital Servo

Spektrum™ Firma™ 150A Smart ESC

Spektrum™ Firma™ 4074 2050Kv Brushless Motor

Stronger chassis design

EXB compatible front brace

Heavy-duty arms front and rear

Updated Rear shock tower geometry

Large volume waterproof* receiver box

Anodized aluminum chassis

Strong composite chassis side pods

Center body support and brace for maximum durability

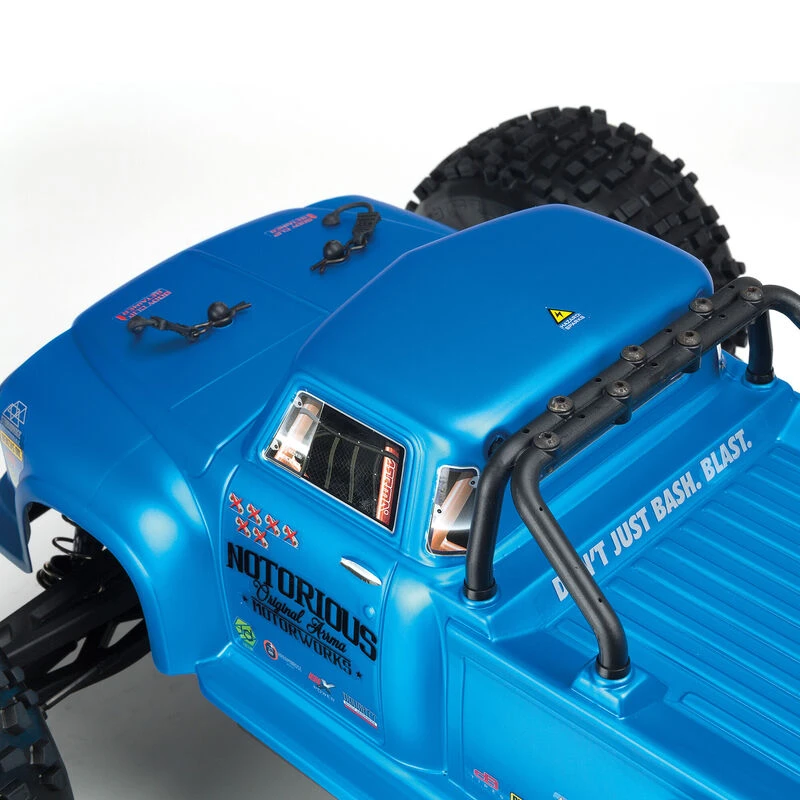

Internal body protection roll bar

High downforce wing

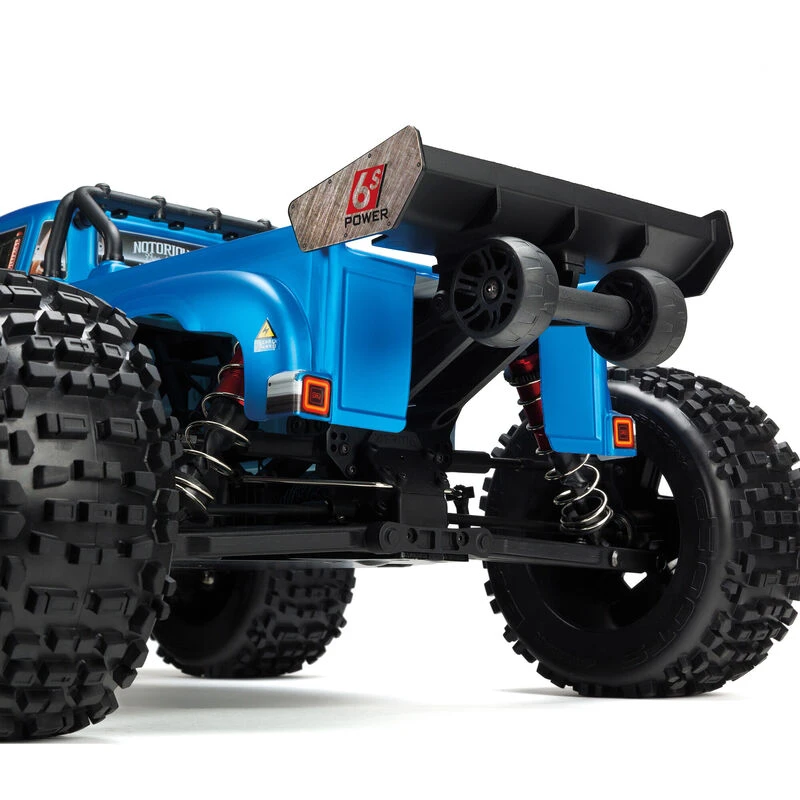

Wheelie bar

Oil-filled adjustable shocks

Black-anodized aluminum front and rear shock towers

Durable steel driveshafts throughout

Heavy-duty drivetrain

All-metal diff outdrives and gearbox internals

Never-loose red aluminum servo saver

Never-pop ball ends

5-Bolt center diff removal

Easy-access sliding motor mount for quick motor removal

Hub nut O-rings

Super-durable wheel hubs for increased strength

Tough stunt truck wheels

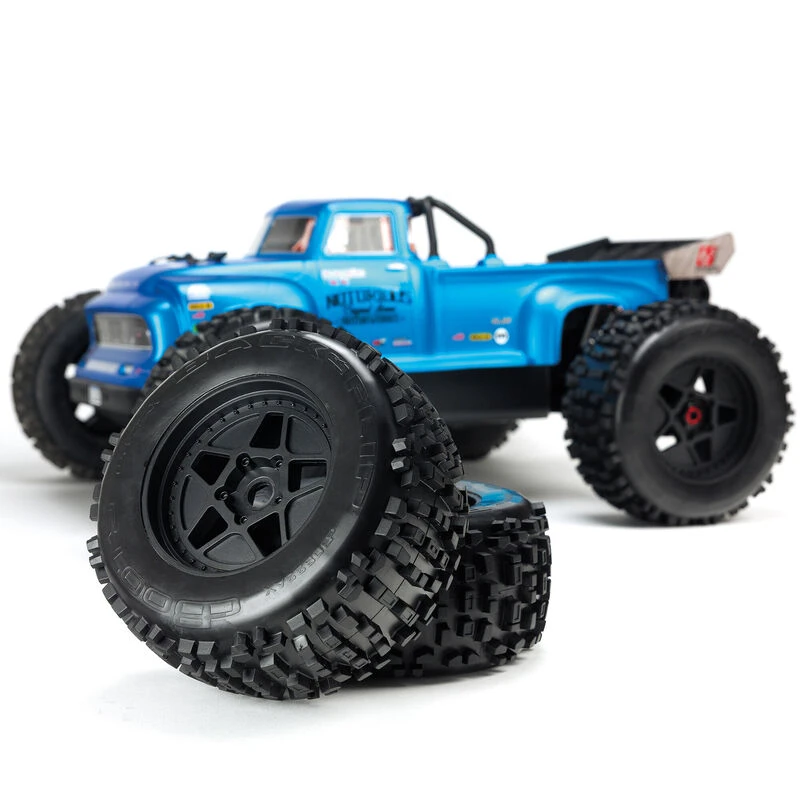

Multi-terrain dBoots® BACKFLIP™ tires

“Real Steel” effect body for enhanced realism

IC5® connectors (EC5™ compatible)

2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual

Overview
From its heavy-duty front bumper through the short wheelbase chassis to the wheelie bar in back, the NOTORIOUS™ 6S BLX 4WD is engineered to make you a stunt superstar. Its stiff roll cage and underbody will take all kinds of punishment and come back for more. The NOTORIOUS™ 6S BLX 4WD can do it all: long, tall wheelies…tight, fast donuts…standing and aerial backflips…high leaps into the air…and more.

For the power to perform that kind of stunt action, ARRMA® now equips the NOTORIOUS™ 6S BLX 4WD with a potent, 6S-capable brushless system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version’s ADS-15M servo. Thanks to waterproof electronics, bashing is a “go” even through mud and snow. Just add your favorite 4S or 6S LiPo battery.

The ready-to-run Stunt Truck now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With adjustable 16mm oil-filled shocks on aluminum towers soaking up bumps, the NOTORIOUS™ 6S BLX 4WD Stunt Truck blasts over dirt, asphalt, and grass — over all terrain, in all conditions. Its tough stunt truck wheels come outfitted with multi-terrain dBoots® BACKFLIP™ tires that provide all the traction you’ll need to flip, grip, wheelie and spin. A high downforce wing helps keep the vehicle grounded. Everything about the NOTORIOUS™ 6S BLX 4WD contributes to confident control and responsive handling at thrilling high speeds.

For the toughness needed to support extreme stunts, ARRMA® uses a strengthened anodized aluminum chassis as the foundation. A center body support and aluminum center brace plus composite chassis side pods add more durability. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme stunts and high-speed bashing. A “never loose” aluminum steering servo saver and “never pop” ball ends supply more precision, reliability and confidence.

ARRMA® keeps your maintenance downtime to the minimum by giving the NOTORIOUS™ 6S BLX 4WD an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just five bolts.

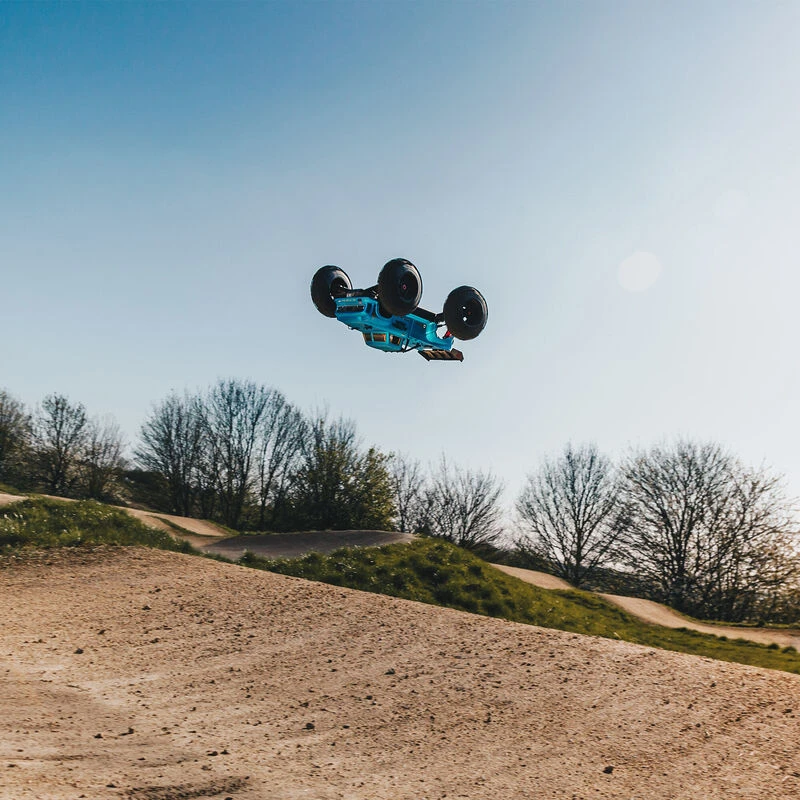

STANDING BACKFLIP?
No Problem. The NOTORIOUS 6S flips for fun.

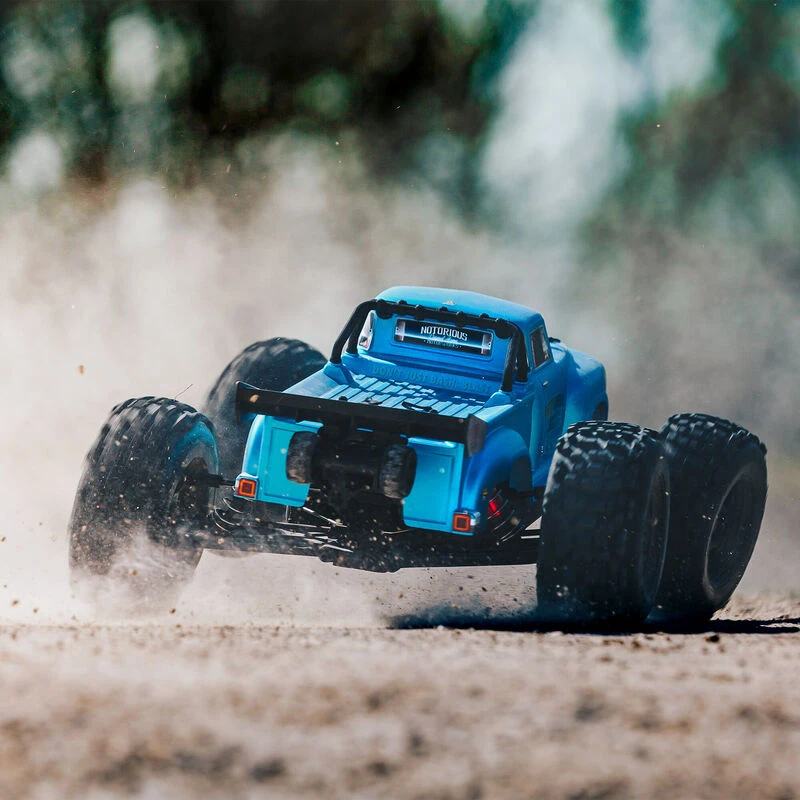

CATCH THE DRIFT
Can you control this much power long enough?

UPDATED CHASSIS DESIGN
Wider rear section and 3D form introduced in key areas to greatly improve strength.

UPDATED REAR SUSPENSION GEOMETRY
Updated rear shock tower geometry works in conjunction with updated rear suspension arm geometry to provide a plusher rear end

More compact rear shock tower, being less exposed, is better protected from being bent during upside-down impacts

FRONT PIVOT BALL SUSPENSION
For precise handling at top speeds

QUICK MAINTENANCE
5 bolt center diff removal for easy access

SPEKTRUM® SMART TECHNOLOGY INCLUDED
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

GO LARGE
Large volume waterproof receiver box

RUBBER SHIELDED BEARINGS
Longer life, less maintenance

OPTIONAL SPEED PINION INCLUDED
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

FIRMA™ 150A SMART Brushless ESC
Waterproof* and dustproof design

150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)

Spektrum® SMART Technology

Fitted with reliable IC5® connectors (EC5™ compatible)

Integrated fan for reduced heat during extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

FIRMA™ 4074 2050Kv Brushless Motor
2050Kv 4074 size 6S brushless motor

Beautifully etched aluminum can

4-pole construction for smooth and consistent power

4mm gold bullet connectors for reliable and efficient connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 5mm shaft

Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

SPEKTRUM® SLT3® RADIO
Superb SLT response rate

50% and 75% throttle limited switch – great for beginners

Steering & throttle rate & trim adjustments with throttle and steering reversing

Foam steering wheel grip

Compatible with Tactic Receivers

SPEKTRUM® SR315 RECEIVER
Dual Protocol – Compatible with SLT and DSMR® 2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels

SPEKTRUM® SPMS652 DIGITAL SERVO
All Steel Gears
Waterproof*
19.08kg-cm/265oz-in Torque @7.4V
32% More Torque & 5% Faster than ADS-15M Servo
*For details on waterproof standards, please refer to the product instruction manual
