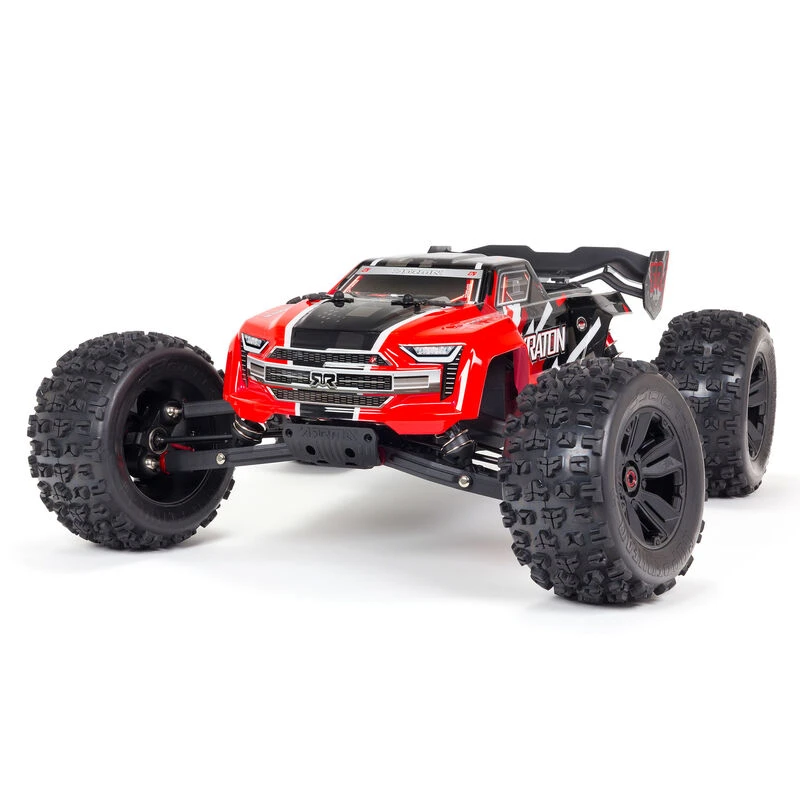

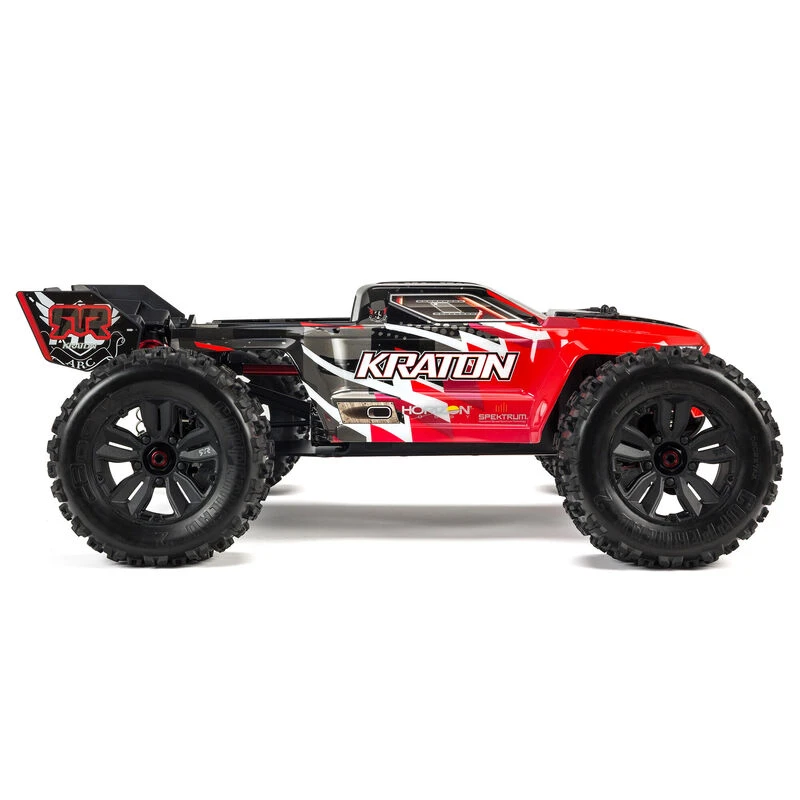

ARRMA 1/8 KRATON 6S V5 4WD BLX Speed Monster Truck With Spektrum Firma RTR, Red

Product Details

The ready-to-run ARRMA® KRATON™ 6S BLX 4WD Speed Monster Truck now comes equipped for even greater all-terrain, 1/8 scale bashing thrills — with a Spektrum™ SLT3™ 3-channel radio, SLT™/DSMR® dual protocol receiver, Smart ESC, stronger servo and more.

Key Features

Updated with Spektrum™ components and Smart compatible

60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear

EXB compatible front brace

Large volume waterproof receiver box

Ready-to-run – just install a charged 4 cell or 6 cell LiPo battery of your choice

In The Box

ARRMA® KRATON™ 6S BLX 1/8 Speed Monster Truck 4WD RTR

Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)

Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)

Spektrum ™ S652 Metal-Geared Digital Servo (installed)

Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)

Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio

Needed to Complete

4S or 6S LiPo Battery

LiPo Compatible Charger

LiPo Charging Bag

(4) AA Batteries

Introduction
Driven by an updated, 6S-capable power system and supported by a strengthened chassis design, the ARRMA® KRATON™ 6S BLX 4WD Speed Monster Truck is ready out of the box to reach incredible speeds for thrilling, all-terrain bashing.

Features

Ready-to-Run

60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear

Spektrum™ SLT3™ 2.4GHz 3-Channel Radio

Spektrum™ SR315 Dual Protocol 3-Channel Receiver

Spektrum™ S652 Digital Servo

Spektrum™ Firma™ 150A Smart ESC

Spektrum™ Firma™ 4074 2050Kv Brushless Motor

Safe-D pinion gears

EXB front brace compatible top plate

Stronger chassis design

Heavy-duty arms front and rear

Updated rear shock tower geometry

Large volume waterproof* receiver box

Anodized aluminum chassis

Strong composite chassis side pods

Center body support and brace for maximum durability

High downforce wing

Oil-filled adjustable shocks

Black-anodized aluminum front and rear shock towers

Durable steel driveshafts throughout

Heavy-duty drivetrain

All-metal diff outdrives and gearbox internals

Never-loose red aluminum servo saver

Never-pop ball ends

4-Bolt center diff removal

Easy-access sliding motor mount for quick motor removal

Multi-split spoke wheels

Durable wheel hubs for increased strength

Hub nut O-rings

Multi-terrain dBoots® COPPERHEAD 2™ tires

Detailed decals

Body print style in red/black or blue/black

IC5® connectors (EC5™ compatible)

2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual

Overview
ARRMA® engineers have outfitted the KRATON™ 6S BLX 4WD with a brushless power system that now features the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination delivers incredible torque, acceleration and speed. Heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo which is 32% stronger and 5% faster than the previous version’s ADS-15M servo. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations — up to 60+ MPH in optimum conditions with a 6S LiPo battery and the included optional speed pinion gear.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them. Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With adjustable oil-filled shocks soaking up the bumps, the KRATON™ 6S BLX 4WD Speed Monster Truck blasts over dirt, asphalt and grass — all terrain and all conditions. The shocks are mounted on black-anodized aluminum towers. Multi-split-spoke wheels come outfitted with super-aggressive, multi-surface dBoots® COPPERHEAD 2™ tires. A high downforce wing helps keep the vehicle grounded. Everything in the design contributes to confident control and responsive handling at high speeds.

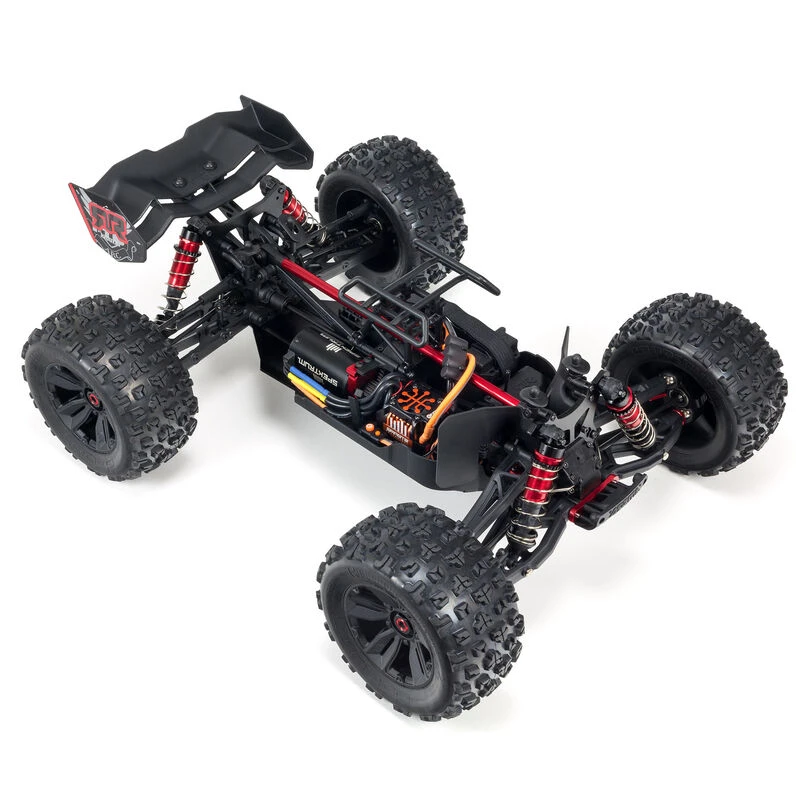

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened anodized aluminum chassis as the foundation for the KRATON™ 6S BLX 4WD. A center body support, aluminum center brace and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing. A “never loose” aluminum steering servo saver and “never pop” ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just seven bolts. Topping it all off is a monster truck body with streamlined good looks, featuring an eye-catching red/black or blue/black trim and detailed decals.

UPDATED CHASSIS DESIGN
Wider rear section and 3D form introduced in key areas to greatly improve strength.

SAFE-D FIRST
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

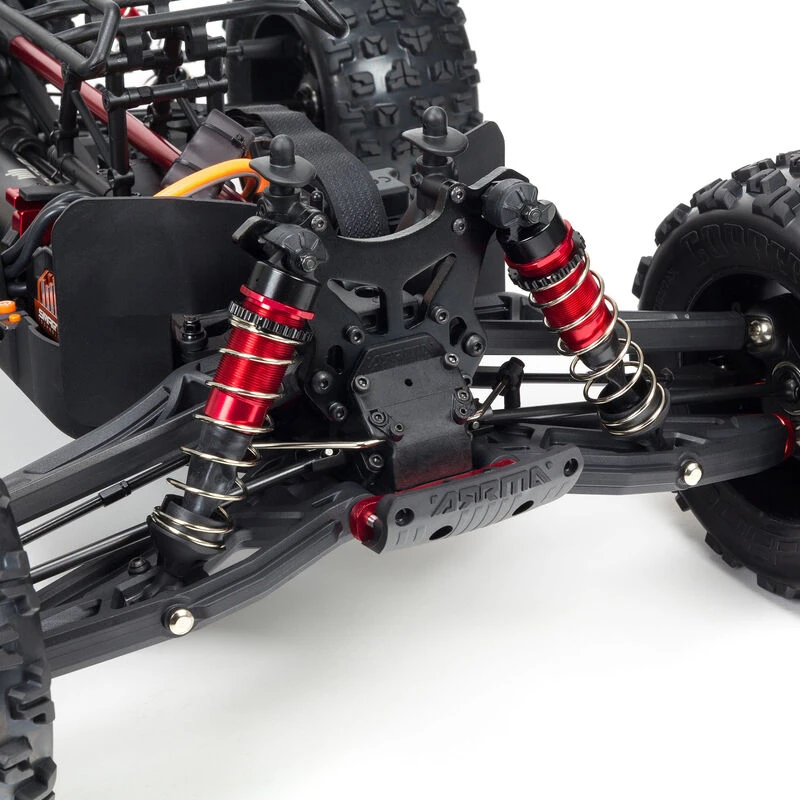

UPDATED REAR SUSPENSION GEOMETRY
Updated rear shock tower geometry works in conjunction with updated rear suspension arm geometry to provide a plusher rear end
More compact rear shock tower, being less exposed, is better protected from being bent during upside-down impacts

EASY-ACCESS DIFFERENTIALS
Front and rear diffs are quickly and easily accessed for rapid tuning and maintenance.

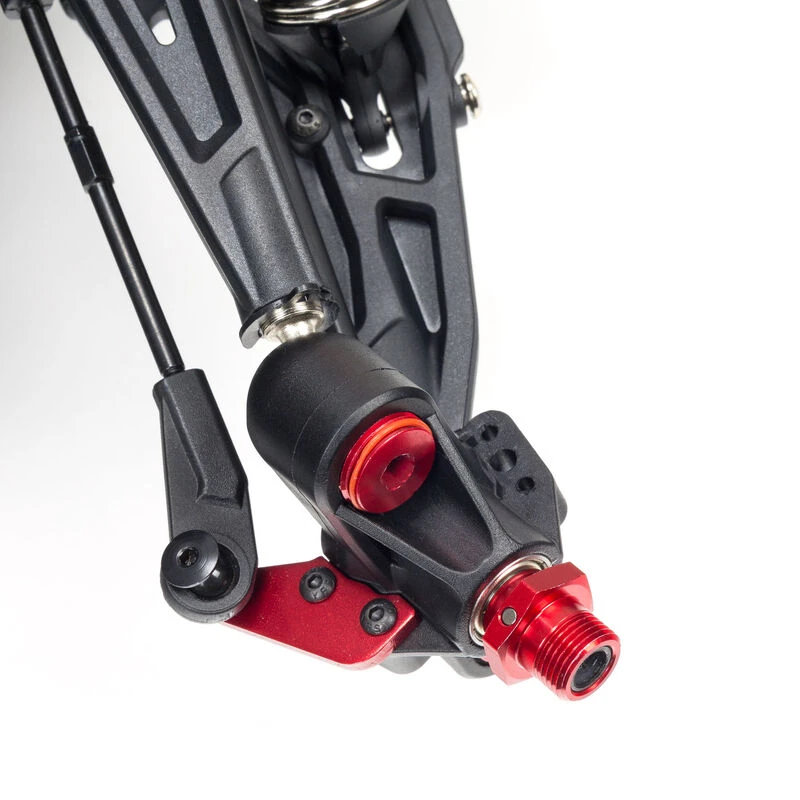

FRONT PIVOT BALL SUSPENSION
For precise handling at top speeds

QUICK MAINTENANCE
7 bolt center diff removal for easy access

MAXIMUM GRIP
DBoots® COPPERHEAD 2 tread pattern designed for extreme all-terrain traction and multi-split spoke wheels.

SPEKTRUM® SMART TECHNOLOGY INCLUDED
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

RUBBER SHIELDED BEARINGS
Longer life, less maintenance

GO LARGE
Large volume waterproof receiver box

OPTIONAL SPEED PINION INCLUDED
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

SPEKTRUM® SPMS652 DIGITAL SERVO
All Steel Gears

Waterproof*

19.08kg-cm/265oz-in Torque @7.4V

32% More Torque & 5% Faster than ADS-15M Servo

*For details on waterproof standards please refer to the product instruction manual

SPEKTRUM® SLT3® RADIO

Superb SLT response rate

50% and 75% throttle limited switch – great for beginners

Steering & throttle rate & trim adjustments with throttle and steering reversing

Foam steering wheel grip

Compatible with Tactic Receivers

SPEKTRUM® SR315 RECEIVER

Dual Protocol – Compatible with SLT and DSMR® 2.4GHz protocol transmitters

Fast reponse rate and outstanding range

No tool binding and protocol switching

SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)

3-Channels

FIRMA™ 150A SMART Brushless ESC

Waterproof* and dustproof design

150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)

Spektrum® SMART Technology

Fitted with reliable IC5® connectors (EC5™ compatible)

Integrated fan for reduced heat during extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

FIRMA™ 4074 2050Kv Brushless Motor

2050Kv 4074 size 6S brushless motor

Beautifully etched aluminum can

4-pole construction for smooth and consistent power

4mm gold bullet connectors for reliable and efficient connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 5mm shaft

Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
