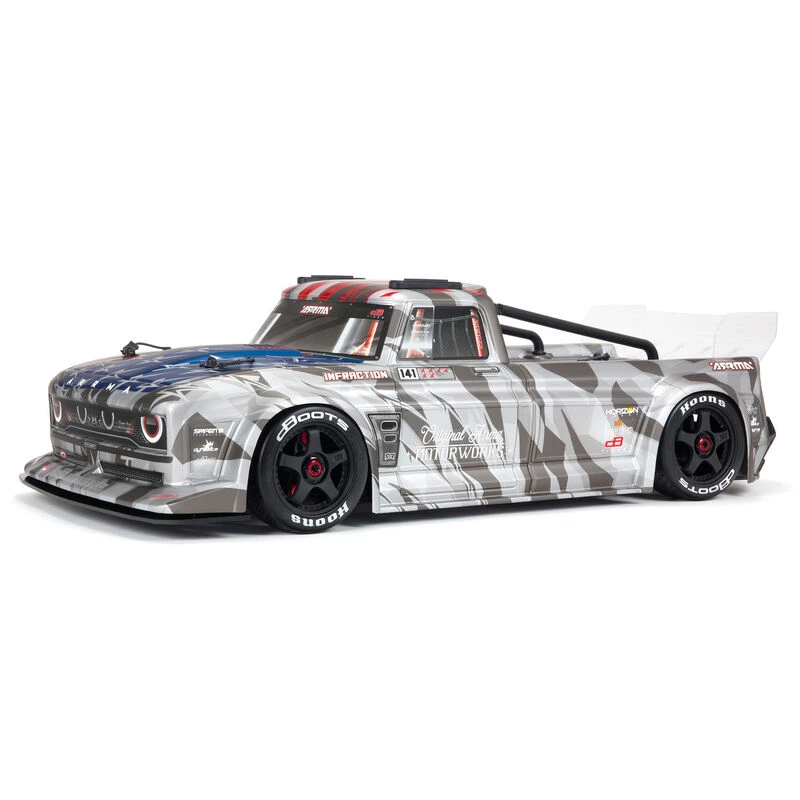

ARRMA 1/7 INFRACTION 6S BLX V2 All-Road Truck RTR, Silver

Product Details

Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION™ 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.

Key Features

Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)

Compatible with Spektrum® Dashboard™ app for iOS or Android

Spektrum® Firma™ 150A Smart ESC

dBoots® Hoons™ all-road tires

RTR Completion Level includes everything needed besides batteries and a compatible charger

In The Box

(1) 1/7 ARRMA® INFRACTION™ Resto Mod Street Bash 6S BLX 4WD RTR

(1) Spektrum® Firma™ 150A Smart ESC (installed)

(1) Spektrum® Firma™ 4074 2050Kv Brushless Motor (installed)

(1) ARRMA® ADS-15M Waterproof* Servo (installed)

(1) Spektrum® SPMS650 Waterproof* Brake Servo (installed)

(1) Spektrum® SR6110AT AVC Receiver (installed)

(1) Spektrum® DX3™ DSMR® Radio

(1) Product Manual

Needed to Complete

(2) 2S or 3S LiPo batteries

Compatible charger

Safe LiPo charging bag

(4) AA transmitter batteries

Features
Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)

Compatible with Spektrum® Dashboard™ app for iOS or Android

ARRMA® ADS-15M Waterproof* Steering Servo

Spektrum® SPMS650 Waterproof* Brake Servo

Spektrum® Firma™ 150A Smart ESC

Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D pinion gears

New electronics module

New mechanical handbrake feature

Fresh street body look with matte gloss effect designs

Tunable wing for customizing the downforce

Full-width front splitter balances downforce distribution

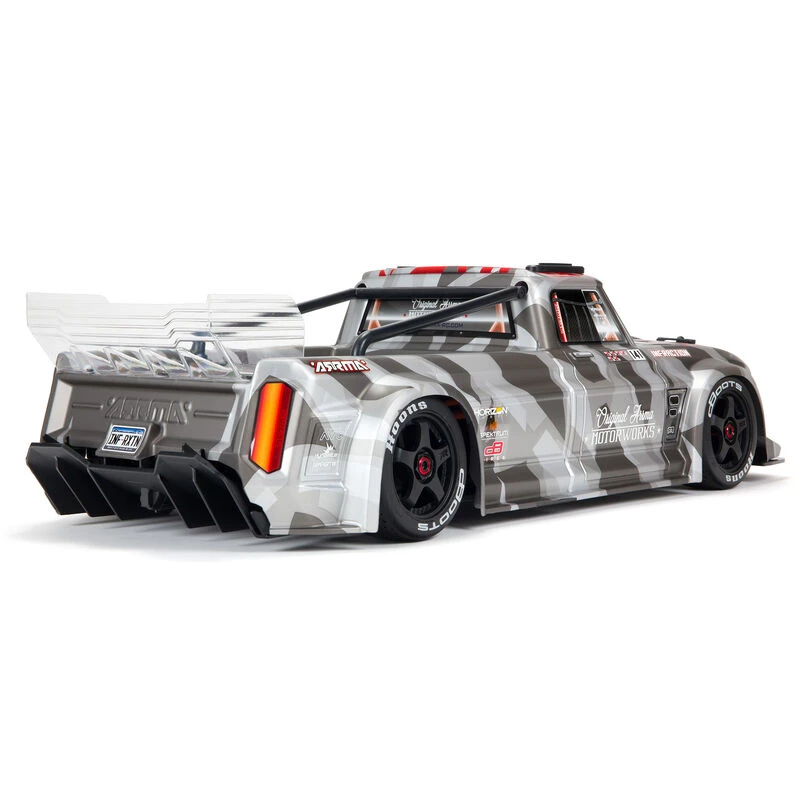

Rear diffuser increases downforce and grip for cornering faster and with confidence

Adjustable front and rear body mounts

3mm Plate, 6061-T6 anodized aluminum chassis

Center brace for maximum durability

Heavy-duty drivetrain with durable steel driveshafts throughout

High-speed center driveshaft support

Rubber-shielded bearings

All-metal diff outdrives and gearbox internals

Updated internal gears with new tooth profile for increased strength

Lower internal gear ratio to reduce the center line transmission RPM, reducing center drive shaft resonance and increasing drivetrain durability

Oil-filled, adjustable, anodized aluminum shocks

Black-anodized aluminum front and rear shock towers

Waterproof* receiver box

Large battery trays

5-spoke wheels

Durable wheel hubs

dBoots® Hoons™ all-road tires

2-year limited warranty (see manual for details)

* For details on waterproof standards, please refer to the product instruction manuals

Overview

The ready-to-run INFRACTION™ 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA® brushless platform with stunning style — ideal for intermediate-level drivers who are eager to experience street bashing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum® DX3™ radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.

Another feature new to the INFRACTION™ 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum® SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3™ transmitter for thrilling drifting, “hooning” and stunt action.

With its 4X4 traction, you can run the INFRACTION™ 6S BLX 4WD on all roads, in all conditions — over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice — while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.

To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots® Hoons™ all-road tires keep their grip on the surface to pour on speed or stop on a dime.

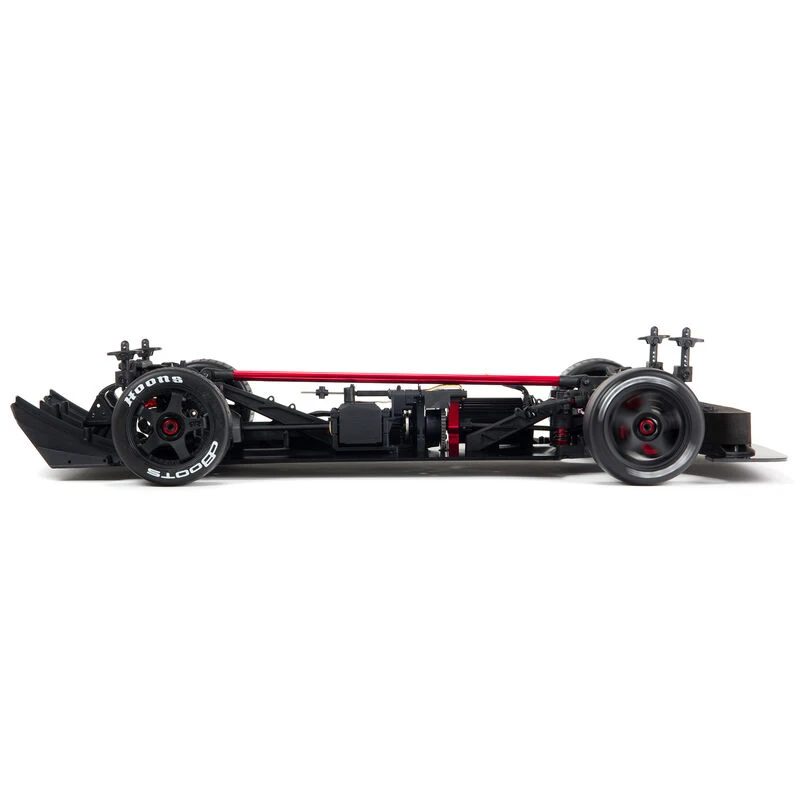

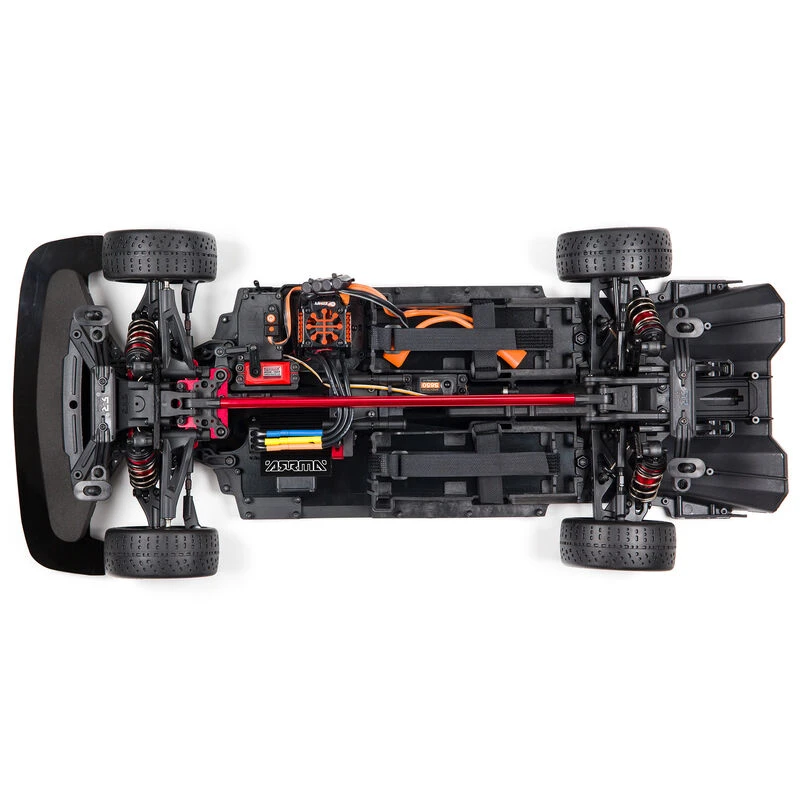

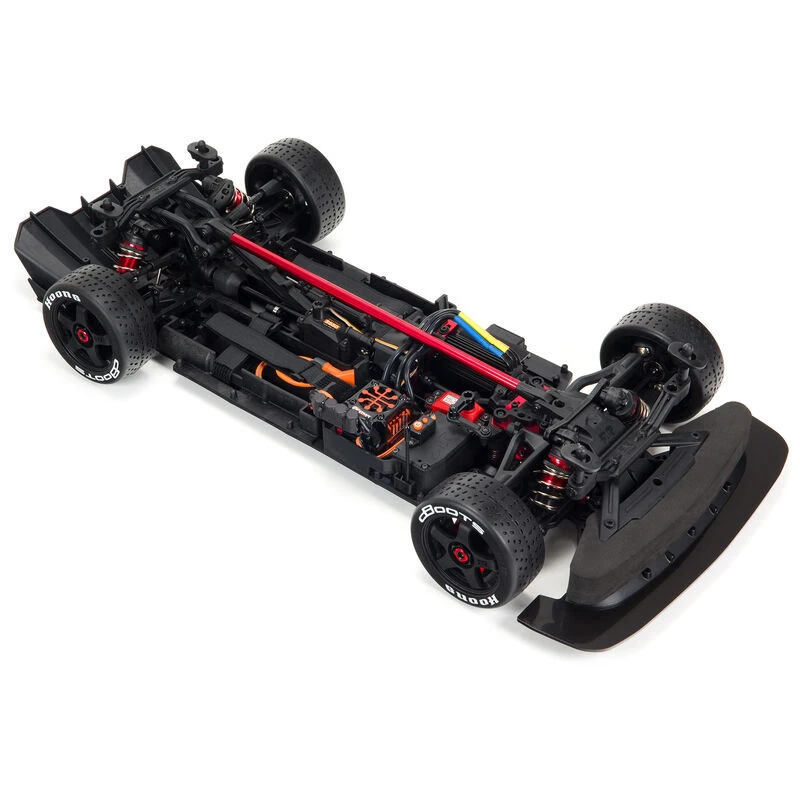

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the center line transmission RPM, reducing the center drive shaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a center brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers.

ARRMA® has equipped the ready-to-run INFRACTION™ 6S BLX 4WD with the 3-channel Spektrum® DX3™ radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle’s brushless power system also features Spektrum® Firma™ Smart components, so it’s easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard™ app for iOS or Android, available for free at the App Store or Google Play.

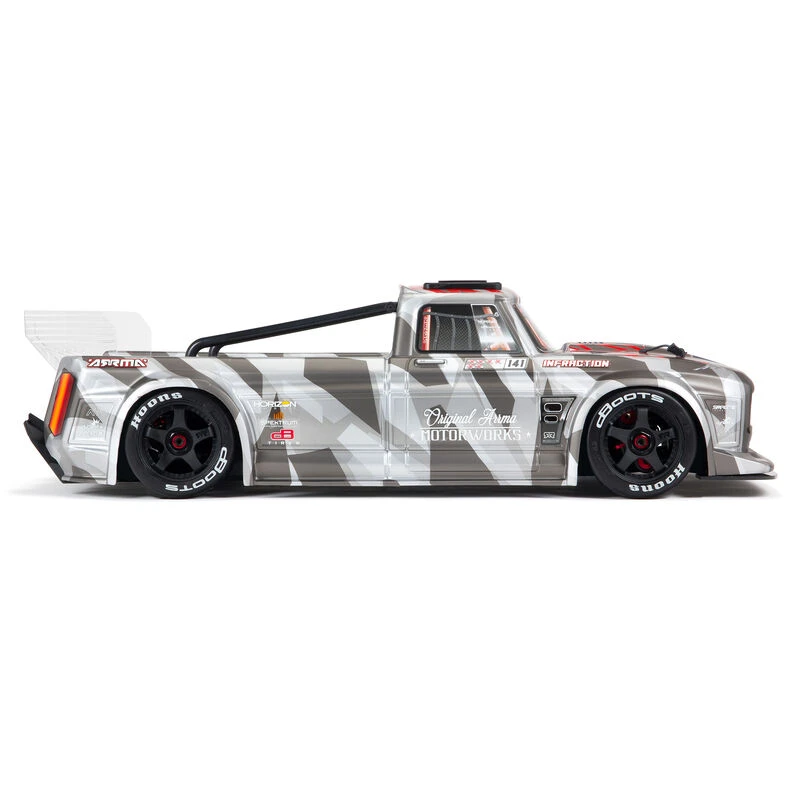

STUNNING NEW BODY PRINTS
Two new striking color schemes to choose between. Which one will you pick?

ALL-ROAD AGGRESSION

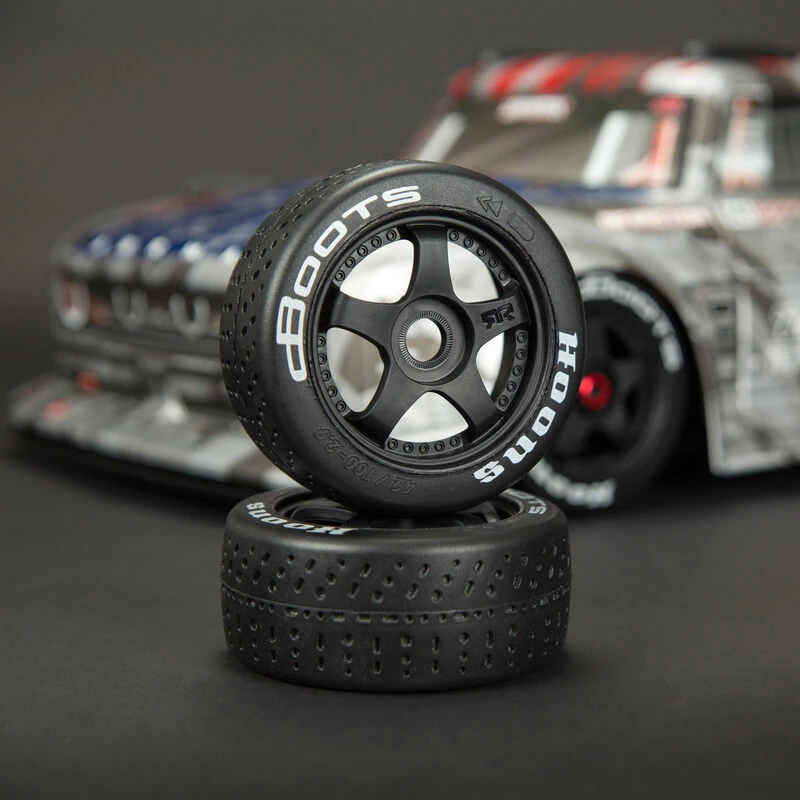

dBoots HOONS tires designed for extreme all-road action. Classic 5-spoke wheels.

FULLY INTEGRATED AERO
Integrated chassis and diffuser for slick underside airflow

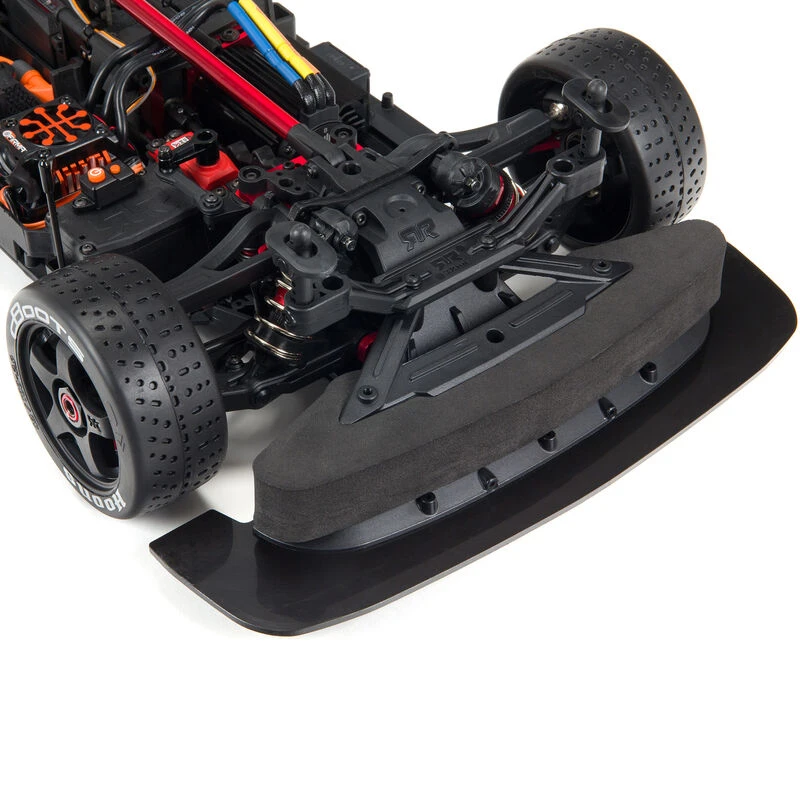

DYNAMIC DUO

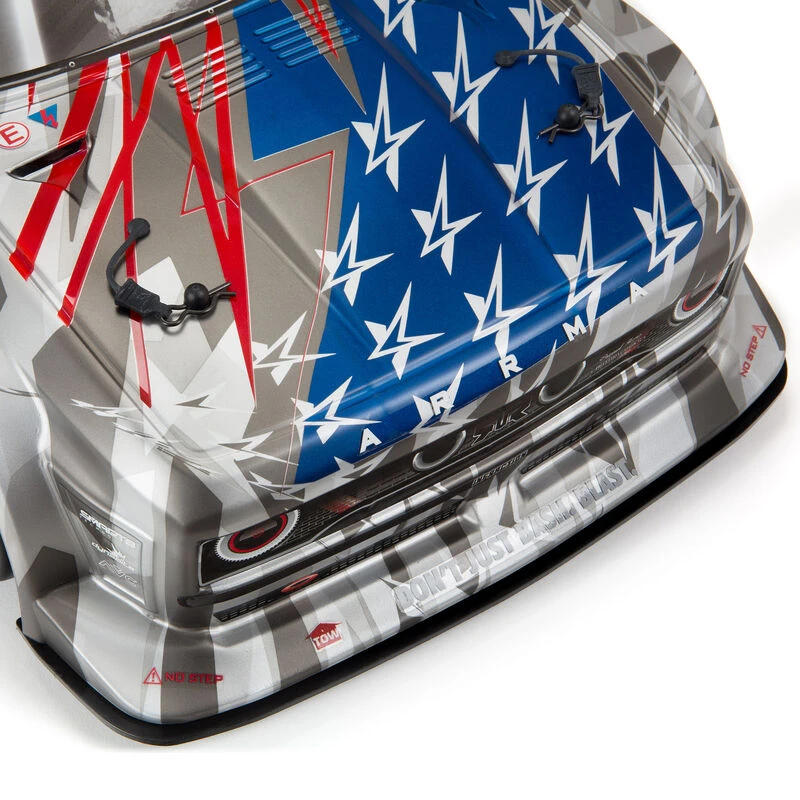

Front bumper protection and aerodynamic splitter

HANDBRAKE MODULE
Innovative ARRMA design – mechanical rear brake operated by a thumb switch on the transmitter

SPEKTRUM BRAKE SERVO
Strong, metal gears used throughout

Waterproof, dustproof case

23 tooth output spline

Torque: 6kg-cm (84oz-in) @6V

Speed: 0.12sec/60deg @6V

Dimensions: 40x38x20mm (industry standard size)

WELL SUPPORTED
The included center driveshaft high-speed support set prevents vibrations and increases drivetrain durability

HEAVY DUTY
Tough A-arms and drivetrain components that keep you bashing for longer

CAPTURED & SEALED
Captured ball ends that will never pop off and hub nut o-rings.

SAFE-D FIRST
Input gears are keyed to the drive cups composite sleeves to fortify the retention of the drive cup set screw

HAVING IT LARGE
Large battery trays allow you to fit up to 7.09″ (180mm) x 2.17″ (55mm) x 2.76″ (70mm) size batteries

ARRMA ADS-15M SERVO
Strong, metal gears used throughout

Waterproof, dustproof case

25 tooth output spline

Torque: 14kg-cm (194oz-in) @6V

Speed: 0.16sec/60deg @6V

Dimensions: 40x38x20mm (industry standard size)

SPEKTRUM FIRMA ESC
Waterproof, dustproof design

150A, 6S LiPo ready (3S, 4S, & 6S compatible)

Spektrum Smart Technology

Fitted with reliable IC5 connectors (EC5 compatible)

Integrated fan for reduced heat during extreme running

High Quality 10awg wires

Low voltage cut-off and thermal overload protection

User programmable punch, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings

SPEKTRUM FIRMA MOTOR
2050Kv 4074 size 6S brushless motor

Beautifully etched aluminum can

4-pole construction for smooth, consistent power

4mm gold bullet connectors for reliable and efficient connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 5mm shaft

Groove at the end of the motor shaft allows the installation of a pinion retaining E-clip

SPEKTRUM DX3 RADIO & SR6110AT AVC RECEIVER
Ergonomic steering wheel for precise control

On-the-fly adjustable AVC gain for personalized handling

Lightweight and ergonomic design for long bashing

3 channel radio system

2.4GHz connection built around DSMR technology

Full-range telemetry capabilities

SPEKTRUM DASHBOARD
DX3 Radio system can be equipped with the Spektrum Dashboard

Requires:

Spektrum Bluetooth Module *

DX3 Smart Phone mount *

Smart Phone with the free Spektrum Dashboard App *

Download the free Spektrum Dashboard app for your smart phone at your preferred app store* Optional items that need to be purchased separately
