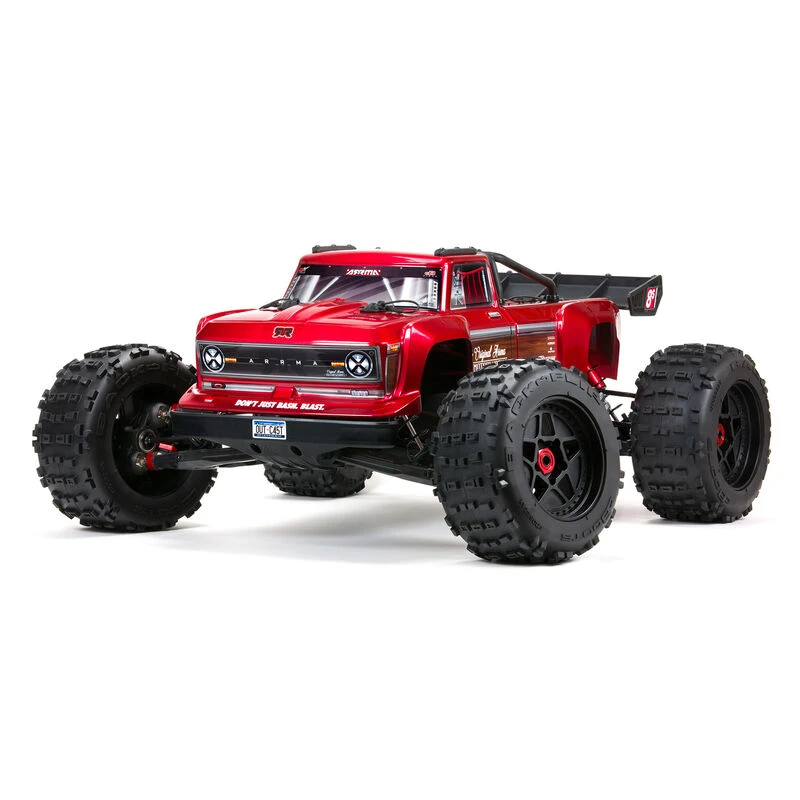

ARRMA 1/5 OUTCAST 4X4 8S BLX Stunt Truck RTR (DISCONTINUED)

In The Box

(1) OUTCAST 1/5 8S BLX 4WD Stunt Truck RTR

(1) Spektrum Firma 1250Kv Brushless Motor

(1) Firma 160A Brushless Smart ESC

(1) Spektrum S905 Metal-Geared Digital Servo

(1) Spektrum DX3 2.4GHz Radio with SR6100AT AVC Receiver

Needed to Complete

(2) 3S or (2) 4S LiPo Batteries with EC5™ or IC5™ connector

(1) Compatible Battery Charger

(4) AA batteries for Transmitter

Features

General Features

ARRMA®-tough design

ARRMA® modular platform with many “custom-build” options

Adjustable battery boxes with hook and loop straps

Chassis brace options including tower-to-tower

Reverse bell crank steering system

Heavy-duty double spring servo saver

Hex hardware throughout

Versatile chassis accepts motors up to 56110 size and 1/6 or 1/5 size servos

2-year limited warranty (see website for details)

Performance

Spektrum™ DX3™ 2.4GHz Radio with SRS6110AT AVC® Receiver

Spektrum™ Firma™ 160A Smart ESC

Spektrum™ Firma™ 1250Kv Brushless Motor

Spektrum™ S905 Metal-Geared Digital Servo

4-Wheel shaft drive

8S Power (two 4S batteries, not included)

Anti-roll bars (optional, not included)

Adjustable camber

Adjustable front toe

Rear adjustable camber link positions

Adjustable ride height

Adjustable droop

20 million cSt oil in center differential

CVD driveshafts

All-terrain dBoots® BACKFLIP tires

Massive 20mm bore oil-filled adjustable shocks

Wheelie bar with rubber tires for maximum stunting

High downforce wing fitted with special wear screws to protect the wing when upside down

Durability

Extra-rigid, laser-etched anodized aluminum chassis

Multi-structured center brace system

Rear lower chassis brace

Strong composite chassis side pods

Under-chassis skids

Metal inserts molded into the front steering knuckles

Metal wishbone covers to prevent the pivot ball from pulling out of the arms

Extra-thick molded composite front and rear shock towers

Heavy-duty drivetrain

Durable steel driveshafts

All-metal diff outdrives and gearbox internals

Spiral-cut crown/pinion gears

Metal differential gears

Metal spur/idler gear

Aluminum sliding motor mount

Heavy-duty dual spring servo saver

Waterproof* receiver box

Electronic ESC power switch

Captured hinge pins

Aluminum hanger inserts

Center protection tower that interfaces with the roll cage for increased body durability

Body clip protection pads on top of body

Single piece wing mount

Heavy-duty front bumper

Metal 24mm hex inserts in wheels

Easy Maintenance

Easy access to front and rear differentials (5 screws)

Easy-to-remove Power Module (5 screws)

Sliding motor mount for easy motor removal (3 screws)

Easy-to-remove chassis braces (1 clip with retainer)

Easy-to-remove front, rear and center modules

Easy-access waterproof* electronics module

Overview
Driven by 8S brushless power and an ARRMA®-tough design, the OUTCAST™ 8S BLX 4WD delivers the torque, acceleration and speed you need for extreme action in 1/5 scale. This ready-to-run stunt truck comes equipped to defy gravity right out of the box. From the heavy-duty front bumper to the wheelie bar in back, it’s engineered to do it all: long, tall wheelies; tight, fast donuts; standing and aerial backflips; high leaps into the air; and more — over all terrain, in all conditions.

Just add your choice of batteries and charger and go. The OUTCAST™ 1/5 8S BLX 4WD includes a Spektrum™ DX3™ Smart transmitter and SRS6110AT AVC® (Active Vehicle Control®) receiver that take full advantage of the Spektrum™ Smart Firma™ brushless motor and ESC’s innovative telemetry capabilities. Download the free Spektrum™ Dashboard App to your mobile device and follow motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio’s AVC® system to carve corners and nail jumps without letting up on the throttle.

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale OUTCAST™ 8S BLX 4WD Stunt Truck features a metal-reinforced design that lets you blast up, over and through bruising obstacles. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. Even the included Spektrum™ S905 digital servo boasts the strength of metal gears.

The extra-rigid, laser-etched, anodized aluminum chassis plate has a multi-structured center brace system, rear lower chassis brace and strong composite chassis side pods for the durability to support extreme stunts. Extra-thick molded composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks to soak-up bumps and jolts.

ARRMA® keeps your maintenance time to the minimum with an efficient, driver-friendly design. A sliding, 3-bolt aluminum mount provides fast motor access. The vehicle’s front, rear and center modules and waterproof electronics module are also engineered for quick and easy access, removal and maintenance.

The ultra-tough OUTCAST™ 1/5 8S truck body arrives factory trimmed, painted and decaled. A center protection tower on the chassis interfaces with the roll cage for increased body durability. Its tough stunt truck wheels come outfitted with metal 24mm hex inserts and multi-terrain dBoots® BACKFLIP tires that provide all the traction you’ll need to flip, grip, wheelie and spin. A high downforce wing helps keep the vehicle grounded — and a wheelie bar is there for when only 90 degree wheelies will do!

WHEELIE BAR
For when only 90 degree wheelies will do

SWB CHASSIS
Responsive stunt performance

SLIDING MOTOR MOUNT
For easy meshing and quick removal

FRONT BUMPER
Stylish looks and functional impact protection

ROLL-CAGE, STUNT RAGE
The stiff roll-cage offers protection against high speed roof-time

BODY PROTECTION TOWER
Interfaces with roll-cage for enhanced body durability

ARRMA BRANDED ALUMINUM CHASSIS

STUNT TRUCK WHEELS & DBOOTS BACKFLIP TIRES

HYPER-DETAILED DECALS

BODY POST SHIELDS WITH INTEGRATED BODY PIN RETAINERS

ALL-METAL TRANSMISSION
Center diff filled with 20 million cSt oil

‘Safe-D8’ PINION
Safe and Secure Safe-D8 design secures pinion to the motor in three ways:

1. Set Screw

2. D-Shaped hole

3. E-clip

MASSIVE ALUMINUM OIL-FILLED SHOCKS
ARRMA shock size comparison: 6S shock (left), 8S shock (right)

OVERSIZED BATTERY TRAYS
Accommodates a wide range of battery sizes

ADJUSTABLE BATTERY TRAY
Length: 140mm-170mm
Maximum Battery Dimensions: 6.69 x 2.16 x 2.08 in. (170 x 55 x 53mm)

GIANT 8S TOUGH METAL GEAR DIFFERENTIALS
ARRMA diff size comparison: 6S diff (left), 8S diff (right)

CENTER DIFF EXPOSED
8S ARRMA tough

SPEKTRUM S905 METAL GEAR SERVO
Full-size 1/5th scale servo

Strong, metal gears used throughout

Waterproof and dustproof case

15 tooth output spline

Torque: 38kg-cm @6V

Speed: 0.20sec/60degree @6V

Dimensions: 2.36 x 1.14 x 2.17″ (60 x 55 x 29mm)

SPEKTRUM FIRMA 160A SMART ESC
Waterproof and dustproof design

160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)

Spektrum® SMART Technology

Fitted with reliable IC5™ connectors (EC5™ compatible)

Integrated fan for reduced heat during extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings

SPEKTRUM FIRMA 1250Kv BRUSHLESS MOTOR
1250Kv 4685 size 8S brushless motor

Beautifully etched aluminum can

4-pole construction for smooth and consistent power

6.5mm gold bullet connectors for reliable and efficient connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 8mm shaft

Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

SPEKTRUM 2.4GHz DX3 SMART TX & SR6100 RX
Ergonomic steering wheel for precise control

On-the-fly adjustable AVC® gain for personalized handling

Lightweight and ergonomic design for long bashing

2 channel radio system

2.4GHz technology built around DSMR technology

Full-range telemetry capabilities
