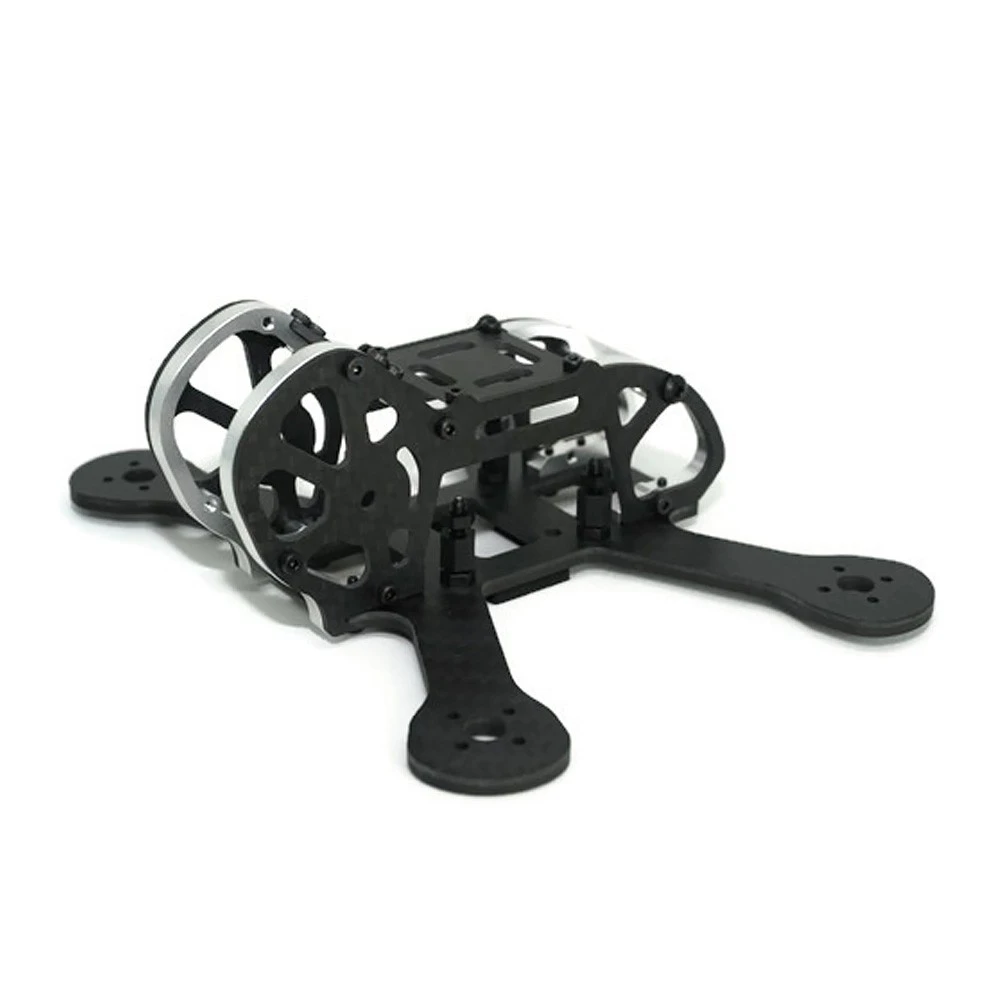

Armattan Japalura 3″ Frame – Silver

What is it?
As the “younger sibling” to the Chameleon, the Armattan Japalura is the fanciest micro frame around, and the second design in Armattan’s selection that features aluminum protection. Inspired by many of the same principals as the Chameleon, the Japalura is a lighter, more compact package that still supports many of today’s FPV standards. This “3 inch” frame can handle full-sized miniquad guts, houses your standard HS1177 camera, and shields everything but the battery with two 4mm thick 6061 aluminum ribs.

As with any Armattan release, some of the best features of this frame are the lack of restrictions you have when building. For example: like usual, the Japalura supports a 30.5mm center stack up to 28mm high. In addition, the adjustable angle on the aluminum VTX mount supports a variety of transmitter options. Another feature is the option to mount the battery on the top or the bottom of this machine, just in case you have a strong preference. Lastly, if built with an eye on the weight of all the components, you ought to be able to skate by underneath the United State’s FAA Registration restriction of 250g.

Included
1x 3mm Main Plate

2x 2mm Side Plates

1x 2mm Big Top Plate

1x 2mm Small Top Plate

2x 4mm Aluminum Side Braces

1x Aluminum VTX Mount

2x M3 8mm Bolts

4x M3 12mm Bolts

20x M2 5mm Cuphead Bolts

8x M2 8mm Cuphead Bolts

4x M3 6mm Nylon M/F Standoffs

8x M3 Nylon Nuts

2x M2 Nylon Washer

1x LiPo Strap

1x Foam LiPo Pad

4x Landing Pads (2 each large/small)

1x set of Build Instructions

UAVfutures review of the Japalura

Japalura Specs

Frame Weight: 51g

Motor to Motor: 138mm (M2 bolts)

Frame Shape: Freestyle Bus

Bottom Plate Thickness: 3mm

Other CF Thickness: 1.5mm

Aluminum Parts: Aircraft Grade 6061

Motor Mount Pattern: 13xx

Center Stack Mount Pattern: 30.5mm or 20m

Max Center Stack Height: 28mm

Warrantied Parts: Top-to-bottom (all)

Recommended Components

Motor Sizes: 1407/3500-4000kv

ESCs: 12-20a

Prop Size: 3″

LiPo: 3S-4S/650-850mah
